SitaDrain® profile frame
Drainage
- Products
SitaDrain profile frame
Drainage
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

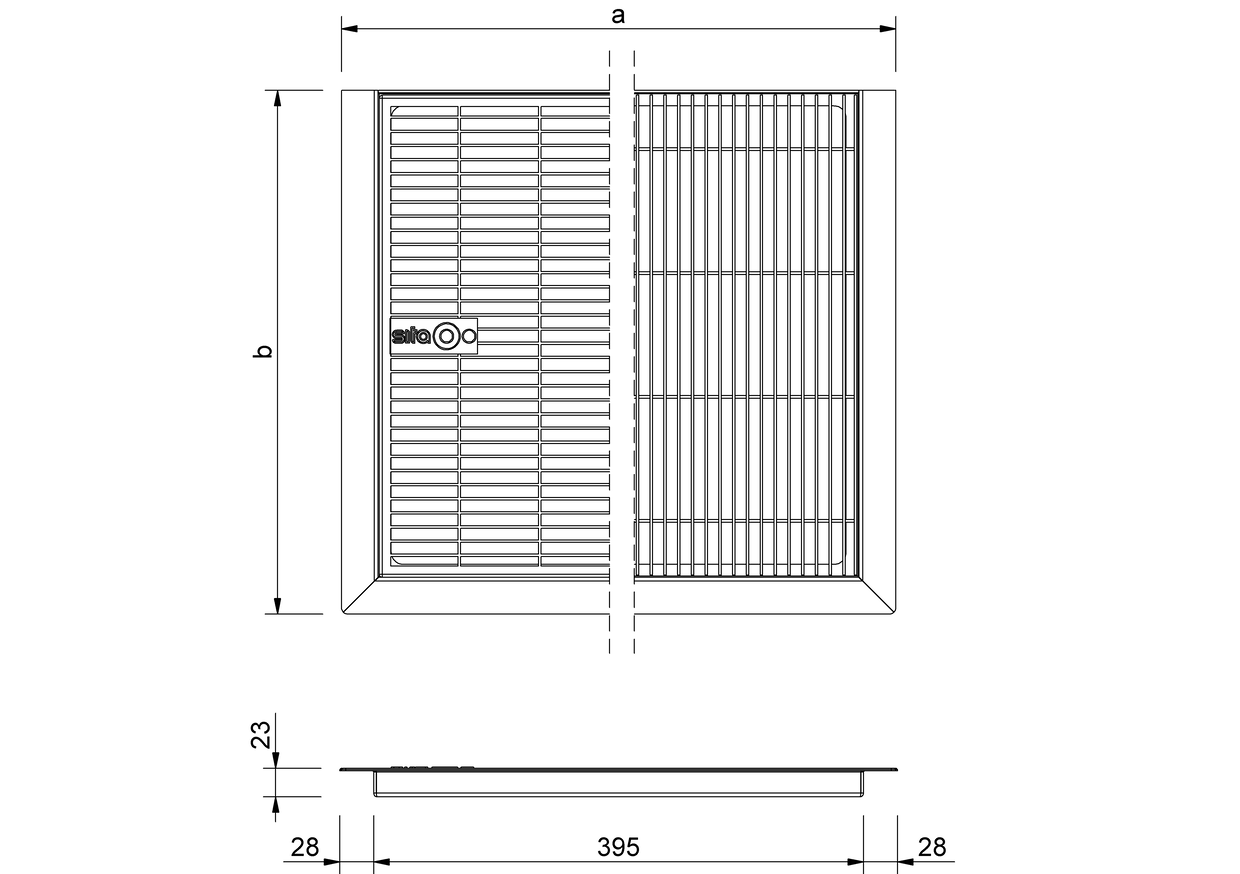

Technical drawing
| a (mm) | b (mm) |
|---|---|
| 450 | 425 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaRondo_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau_Balkon.DWG
DWG EB_SitaEasy_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau_mit_Platten.DWG
DWG EB_SitaVasant_Double_SitaDrain_Profilrahmen_nicht_bel_Dachaufbau_mit_Plattenbelag.DWG
PDF SitaRondo_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag_im_Splitbett.pdf
PDF SitaEasy_mit_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau_mit_Platten.pdf
PDF SitaVasant_Double_SitaDrain_Profilrahmen_nicht_bel_Dachaufbau_mit_Plattenbelag.pdf
Article selection

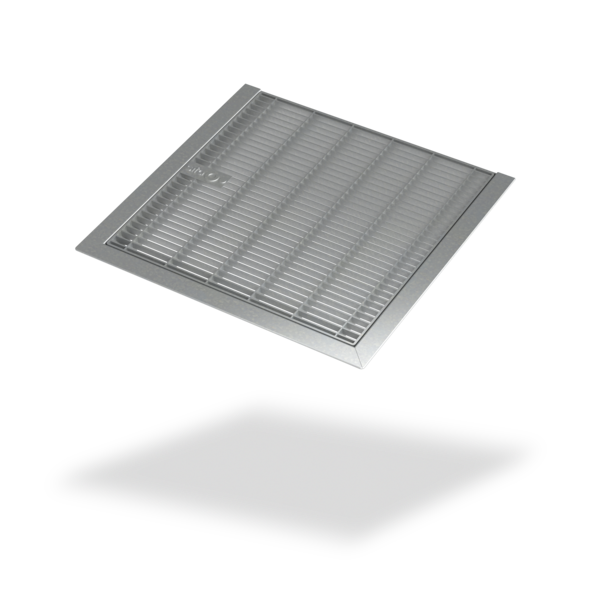

SitaDrain® profile frame with grate insert for parapet outlets, made of galvanised steel, load rating class K3 to DIN EN 1253-2, can be travelled over in a wheelchair, cut-out dimensions 400 mm x 400 mm, with surrounding profile frame to hold the grate and supported on three sides on the slab paving, supply and install to professional standards.
SitaDrain® profile frame with SitaEasy for main drainage in an inverted roof
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve for WDVS
7 SitaEasy

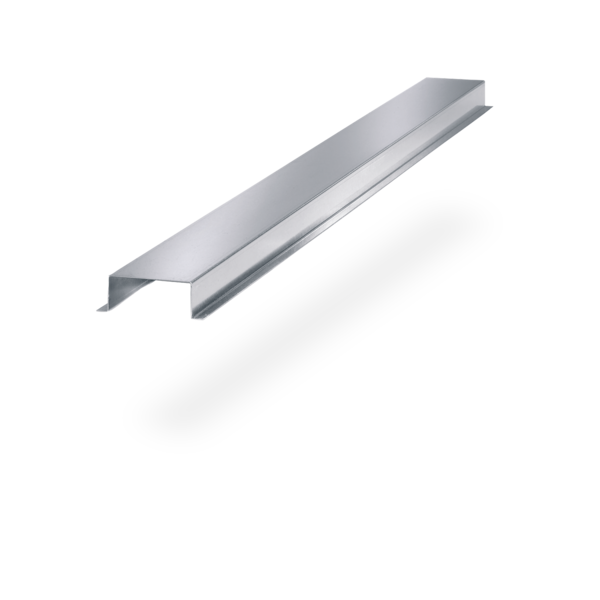

8 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
9.1 Profile frame
9.2 Inspection grate
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve for WDVS
7 SitaEasy
8 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
9.1 Profile frame
9.2 Inspection grate
Inverted roof structure to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Filter fabric
- Drainage mat
- XPS thermal insulation
- Protective mat
- Waterproof membrane
- Substructure
SitaRondo with loose retaining flange and SitaDrain profile frame in a non-ventilated roof structure with slab paving in a gravel bed
1 SitaAttika cladding cover plate
2 SitaMore vapour barrier plate flex
SitaRondo with loose retaining flange consisting of:
3.1 SitaRondo
3.2 Screws, washers and seals
3.3 Loose retaining flange
4 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
5.1 Inspection grate
5.2 Profile frame
2 SitaMore vapour barrier plate flex
SitaRondo with loose retaining flange consisting of:
3.1 SitaRondo
3.2 Screws, washers and seals
3.3 Loose retaining flange
4 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
5.1 Inspection grate
5.2 Profile frame
Non-ventilated roof structure according to the general rules of engineering with slab cover in split bed with:
- Slab paving
- Split bed
- Filter fleece
- Surface drainage
- Building protection mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet opening with joint tape
SitaEasy and SitaEasy retaining element with SitaDrain® profile frame in a non-ventilated roof structure with slab paving on support pads
1 SitaAttika cladding cover plate
2 SitaPipe Edelstahl pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy
SitaEasy retaining element consisting of:
6.1 Seal
6.2 Retaining element base body
SitaDrain® profile frame consisting of:
7.1 Inspection grate
7.2 Profile frame
2 SitaPipe Edelstahl pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy
SitaEasy retaining element consisting of:
6.1 Seal
6.2 Retaining element base body
SitaDrain® profile frame consisting of:
7.1 Inspection grate
7.2 Profile frame
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pads
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaVasant Double and SitaDrain profile frames in a non-ventilated roof structure with panel cladding
1 SitaPipe Stainless steel pipe
2 SitaPipe Stainless steel pipe clamp
3 SitaPipe Stainless steel retention clamp
4 SitaMore sealing sleeve
5 SitaVasant Double transition piece
SitaVasant Double consisting of:
6.1 Pipe
6.2 Vapour barrier panel
6.3 Retention clamp
6.4 Outlet
6.5 Emergency drainage channel with seal for water collection box
6.6 Hinged foot
SitaDrain profile frame consisting of:
7.1 Mesh cover
7.2 Profile frame
8 SitaVasant horizontal insulating block
2 SitaPipe Stainless steel pipe clamp
3 SitaPipe Stainless steel retention clamp
4 SitaMore sealing sleeve
5 SitaVasant Double transition piece
SitaVasant Double consisting of:
6.1 Pipe
6.2 Vapour barrier panel
6.3 Retention clamp
6.4 Outlet
6.5 Emergency drainage channel with seal for water collection box
6.6 Hinged foot
SitaDrain profile frame consisting of:
7.1 Mesh cover
7.2 Profile frame
8 SitaVasant horizontal insulating block
Non-ventilated roof structure to the general rules of engineering with:
- Slab covering on support pads
- Protective mat
- Waterproofing
- Insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
AutoCAD
DWG EB_SitaEasy_und_SitaDrain_Profilrahmen_HE_im_Umkehrdach_mit_Plattenbelag.DWGDWG EB_SitaRondo_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau_Balkon.DWG
DWG EB_SitaEasy_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau_mit_Platten.DWG
DWG EB_SitaVasant_Double_SitaDrain_Profilrahmen_nicht_bel_Dachaufbau_mit_Plattenbelag.DWG
Installation Examples
PDF SitaDrain_Profilrahmen_mit_SitaEasy_fuer_die_Hauptentwaesserung_im_Umkehrdach.pdfPDF SitaRondo_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag_im_Splitbett.pdf
PDF SitaEasy_mit_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau_mit_Platten.pdf
PDF SitaVasant_Double_SitaDrain_Profilrahmen_nicht_bel_Dachaufbau_mit_Plattenbelag.pdf
| SitaDrain® profile frame | Article no. | ||
|---|---|---|---|
Galvanised steel | |||
| grating | 20404034 | Show product | |
| longitudinal bar grating | 20404035 | Show product |
+
