SitaDSS Profi
Siphonic drainage outlet
- Products

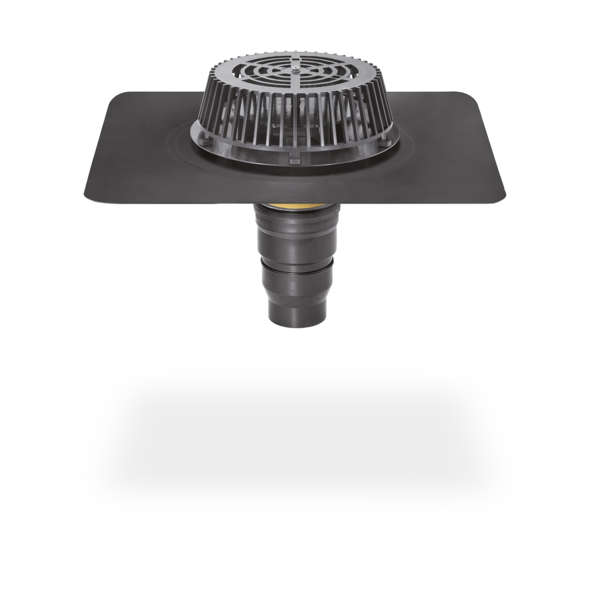

SitaDSS Profi
Siphonic drainage outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Thermally insulated

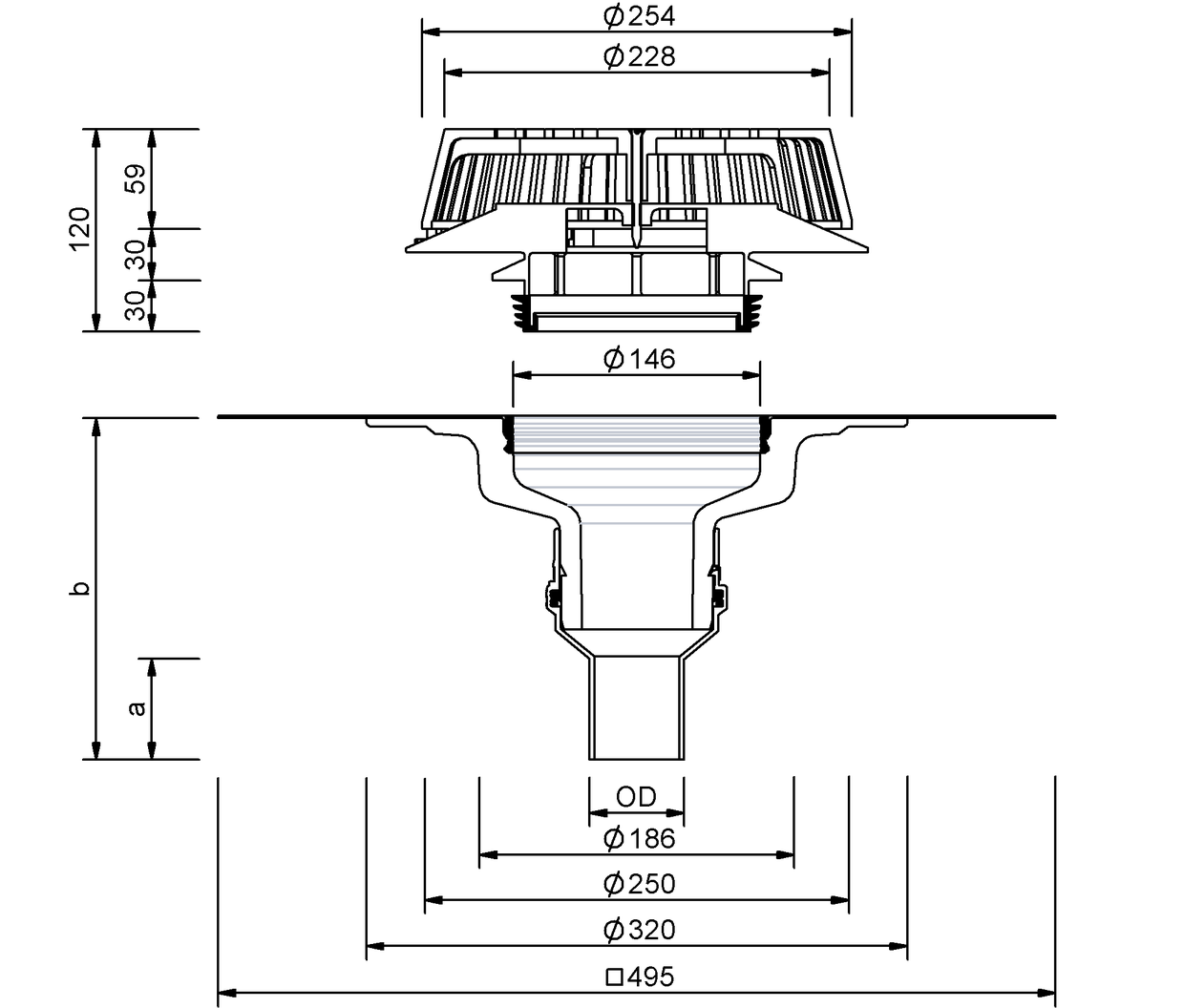

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 56 | 56 | 250 | 60 | 202 |
| 70 | 75 | 250 | 60 | 194 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF SitaDSS_Profi_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Profi_mit_SitaMore_Uebergangsverbinderset_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Profi_und_SitaPipe_Edelstahl_Rohrsystem_zur_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau.pdf
Article selection
SitaDSS Profi siphonic drainage rainwater outlet made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 56 or DN 70, with Airstop including dome grate, for direct connection to PE pipes (butt welding or with electrofusion socket) or to the SitaPipe Edelstahl pipe system, for siphonic drainage, with a large connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the Airstop including dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 56 | 0.7 | 2 | 3.2 | 4.1 | 4.9 | 6.6 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 |
| 70 | 0.5 | 1.3 | 2.8 | 4.2 | 5.5 | 7.6 | 9.4 | 12.9 | 16.3 | 16.7 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 56 | 0.9 | 2.2 | 3.5 | 5.2 | 6.9 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 | 8.2 |
| 70 | 1 | 2.1 | 3.6 | 5.6 | 7.4 | 10.6 | 13.6 | 17 | 17.1 | 17.1 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
SitaDSS Profi in a non-ventilated roof structure

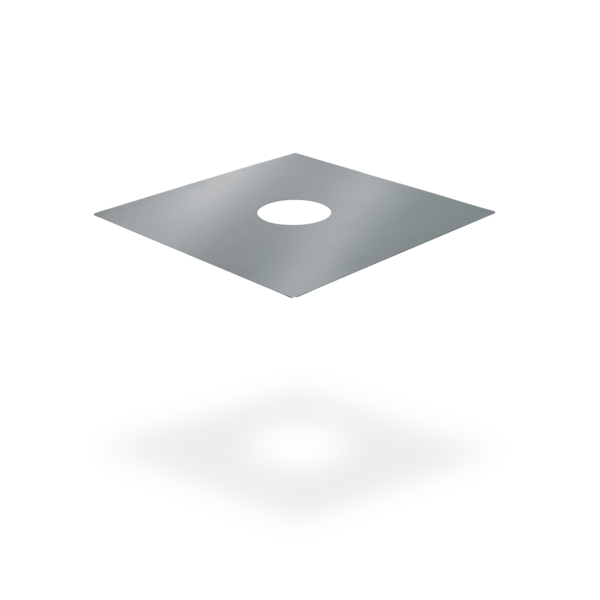

1 SitaMore reinforcement plate
SitaDSS Profi consisting of:
2.1 PE plug-in coupler with snap-on ring
2.2 Base body
2.3 Fastening ring for Airstop
2.4 Dome grate
2.5 Airstop
SitaDSS Profi extension unit consisting of:
3.1 Base body
3.2 Sealing ring
4 SitaDSS Profi insulating body for extension unit
5 SitaDSS Rail mounting rail
6 SitaDSS Rail suspension unit
7 SitaDSS Clamp
8 SitaPipe PE electrofusion socket
9 SitaPipe PE branch
10 SitaPipe PE bend
11 SitaPipe PE reduction piece
12 SitaPipe PE pipe
SitaDSS Profi consisting of:
2.1 PE plug-in coupler with snap-on ring
2.2 Base body
2.3 Fastening ring for Airstop
2.4 Dome grate
2.5 Airstop
SitaDSS Profi extension unit consisting of:
3.1 Base body
3.2 Sealing ring
4 SitaDSS Profi insulating body for extension unit
5 SitaDSS Rail mounting rail
6 SitaDSS Rail suspension unit
7 SitaDSS Clamp
8 SitaPipe PE electrofusion socket
9 SitaPipe PE branch
10 SitaPipe PE bend
11 SitaPipe PE reduction piece
12 SitaPipe PE pipe
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaDSS Profi with SitaDSS Profi retaining element for emergency drainage in a non-ventilated roof structure
1 SitaMore reinforcement plate
SitaDSS Profi consisting of:
2.1 PE plug-in coupler with snap-on ring
2.2 Base body
SitaDSS Profi extension unit consisting of:
3.1 Base body
3.2 Sealing ring
SitaDSS Profi retaining element consisting of:
4.1 Airstop
4.2 Sealing ring
4.3 Base body
5 SitaDSS Profi insulating body for extension unit
6 SitaDSS Rail mounting rail
7 SitaDSS Rail suspension unit
8 SitaDSS Clamp
9 SitaDSS PE electrofusion socket
10 SitaDSS PE branch
11 SitaDSS PE bend
12 SitaDSS PE reduction piece
13 SitaDSS PE pipe
SitaDSS Profi consisting of:
2.1 PE plug-in coupler with snap-on ring
2.2 Base body
SitaDSS Profi extension unit consisting of:
3.1 Base body
3.2 Sealing ring
SitaDSS Profi retaining element consisting of:
4.1 Airstop
4.2 Sealing ring
4.3 Base body
5 SitaDSS Profi insulating body for extension unit
6 SitaDSS Rail mounting rail
7 SitaDSS Rail suspension unit
8 SitaDSS Clamp
9 SitaDSS PE electrofusion socket
10 SitaDSS PE branch
11 SitaDSS PE bend
12 SitaDSS PE reduction piece
13 SitaDSS PE pipe
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaDSS Profi with SitaMore transition connector set in a non-ventilated roof structure
1 SitaMore reinforcement plate
2 SitaDSS Profi insulating body for extension unit
SitaMore transition connector set consisting of:
3.1 EPDM/V2A connector
3.2 Support ring made of rust-proof stainless steel
(Pull-out protection must be provided on site.)
SitaDSS Profi consisting of:
4.1 PUR base body for outlet
4.2 Plug-in coupler with seal
SitaDSS Airstop consisting of:
5.1 Airstop with fastening ring
5.2 Dome grate with installation screw
SitaDSS Profi extension unit consisting of:
6.1 PUR base body extension unit
6.2 Sealing ring for extension unit
2 SitaDSS Profi insulating body for extension unit
SitaMore transition connector set consisting of:
3.1 EPDM/V2A connector
3.2 Support ring made of rust-proof stainless steel
(Pull-out protection must be provided on site.)
SitaDSS Profi consisting of:
4.1 PUR base body for outlet
4.2 Plug-in coupler with seal
SitaDSS Airstop consisting of:
5.1 Airstop with fastening ring
5.2 Dome grate with installation screw
SitaDSS Profi extension unit consisting of:
6.1 PUR base body extension unit
6.2 Sealing ring for extension unit
Non-ventilated roof structure to the general rules of engineering with:
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
SitaDSS Profi und SitaPipe Edelstahl Rohrsystem zur Hauptentwässerung im nicht belüfteten Dachaufbau
SitaDSS Profi mit Airstop bestehend aus:
1.1 PE Steckmuffe
1.2 Grundkörper
1.3 Befestigungsring für Airstop
1.4 Airstop
1.5 Kiesfang
SitaDSS Profi Aufstockelement bestehend aus:
2.1 Grundkörper
2.2 Dichtring
3 SitaDSS Profi Dämmkörper Aufstockelement
4 SitaPipe Edelstahl Rohr
5 SitaPipe Edelstahl Sicherungsschelle
6 SitaPipe Edelstahl Befestigungswinkel
7 SitaPipe Edelstahl Abzweig 45°
8 SitaPipe Edelstahl Bogen
9 SitaPipe Edelstahl Übergang exzentrisch
1.1 PE Steckmuffe
1.2 Grundkörper
1.3 Befestigungsring für Airstop
1.4 Airstop
1.5 Kiesfang
SitaDSS Profi Aufstockelement bestehend aus:
2.1 Grundkörper
2.2 Dichtring
3 SitaDSS Profi Dämmkörper Aufstockelement
4 SitaPipe Edelstahl Rohr
5 SitaPipe Edelstahl Sicherungsschelle
6 SitaPipe Edelstahl Befestigungswinkel
7 SitaPipe Edelstahl Abzweig 45°
8 SitaPipe Edelstahl Bogen
9 SitaPipe Edelstahl Übergang exzentrisch
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Installation Examples
PDF SitaDSS_Profi_im_nicht_beluefteten_Dachaufbau.pdfPDF SitaDSS_Profi_mit_Anstauelement_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Profi_mit_SitaMore_Uebergangsverbinderset_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Profi_und_SitaPipe_Edelstahl_Rohrsystem_zur_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau.pdf
+
