SitaIndra
Emergency drainage outlet

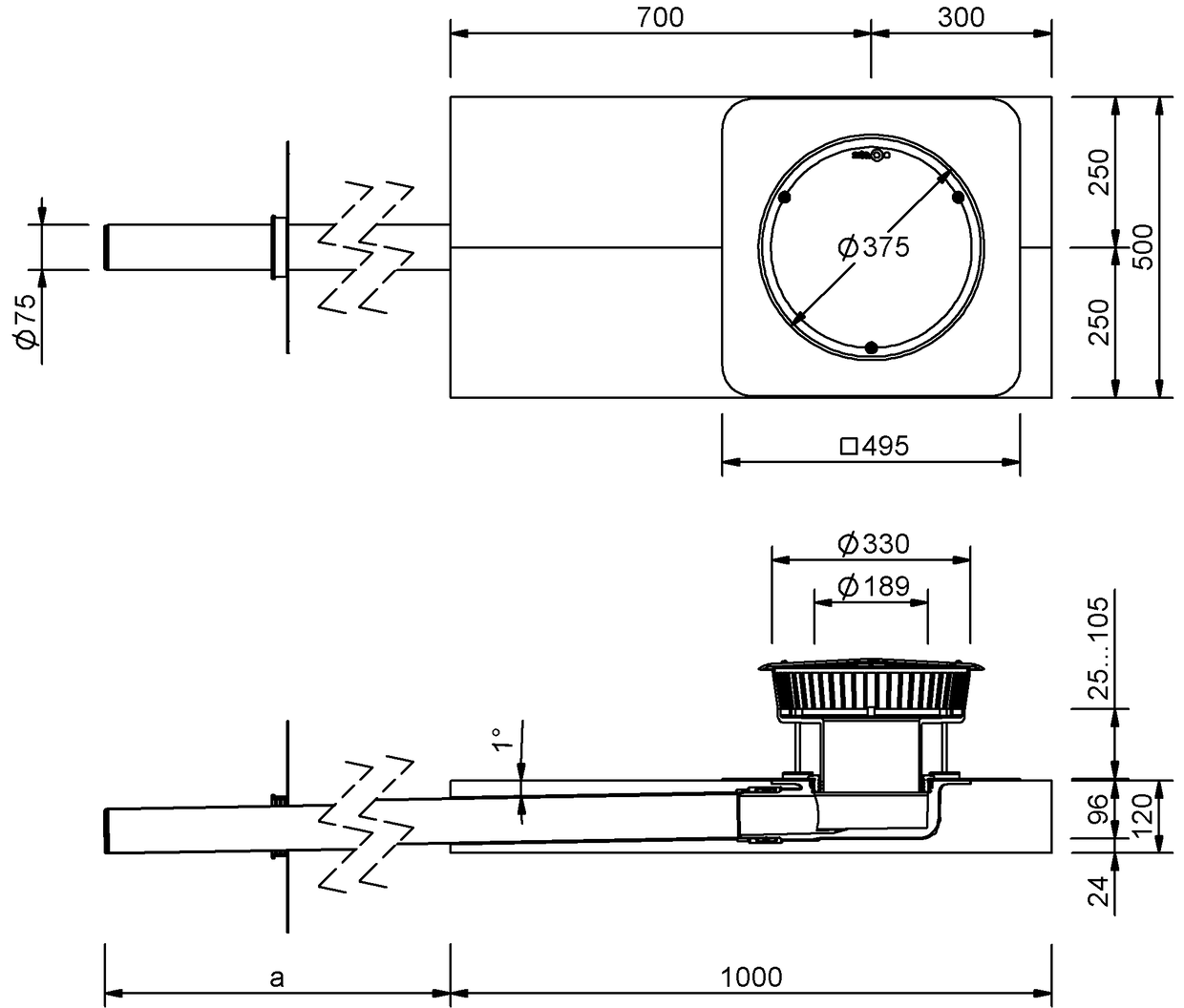

Size DN | External diameter OD (mm) | a (mm) |
---|---|---|
70 | 75 | 520 |
70 | 75 | 1020 |
70 | 75 | 1520 |

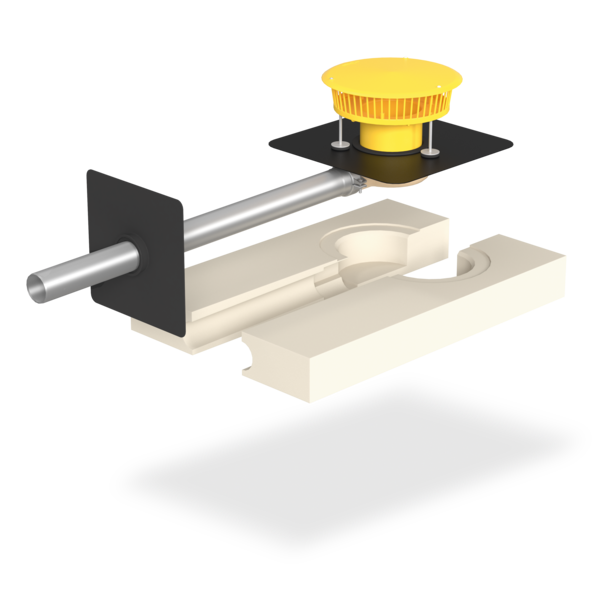

SitaIndra parapet outlet, angled, made of polyurethane, thermally insulated, according to DIN EN 1253-2, in size DN 70, discharge rate 3.6 l/s at 35 mm retaining height as waterspout and 9.9 l/s at 35 mm retaining height and connected DN 70 downpipe, with stainless steel connection pipe and safety clamp, vapour barrier plate for secure connection to the vapour barrier and two-part insulating body made of polyurethane with a thermal conductivity lambda=0.0249 W/mK and a compressive strength of 200 kPa, size: 500 x 1000 x 120 mm. For conventional drainage, with large foamed-in connection sleeve of choice (495 x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the supplied retaining element, supply and install to professional standards.
Back-up Heigh (mm) | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Support length | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
1.0 metres | 0.8 | 1.9 | 3 | 3.2 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8 | 3.9 | 4 | 4.2 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
1.5 metres | 0.8 | 1.9 | 3 | 3.2 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8 | 3.9 | 4 | 4.2 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
2.0 metres | 0.8 | 1.9 | 3 | 3.2 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8 | 3.9 | 4 | 4.2 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
Back-up Heigh (mm) | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Support length | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
2.0 metres | 0.8 | 1.9 | 2.9 | 4 | 5.1 | 7.5 | 9.9 | 11.6 | 13.2 | 14.2 | 15.2 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 |
1.5 metres | 0.8 | 1.9 | 2.9 | 4 | 5.1 | 7.5 | 9.9 | 11.6 | 13.2 | 14.2 | 15.2 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 |
1.0 metres | 0.8 | 1.9 | 2.9 | 4 | 5.1 | 7.5 | 9.9 | 11.6 | 13.2 | 14.2 | 15.2 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 |

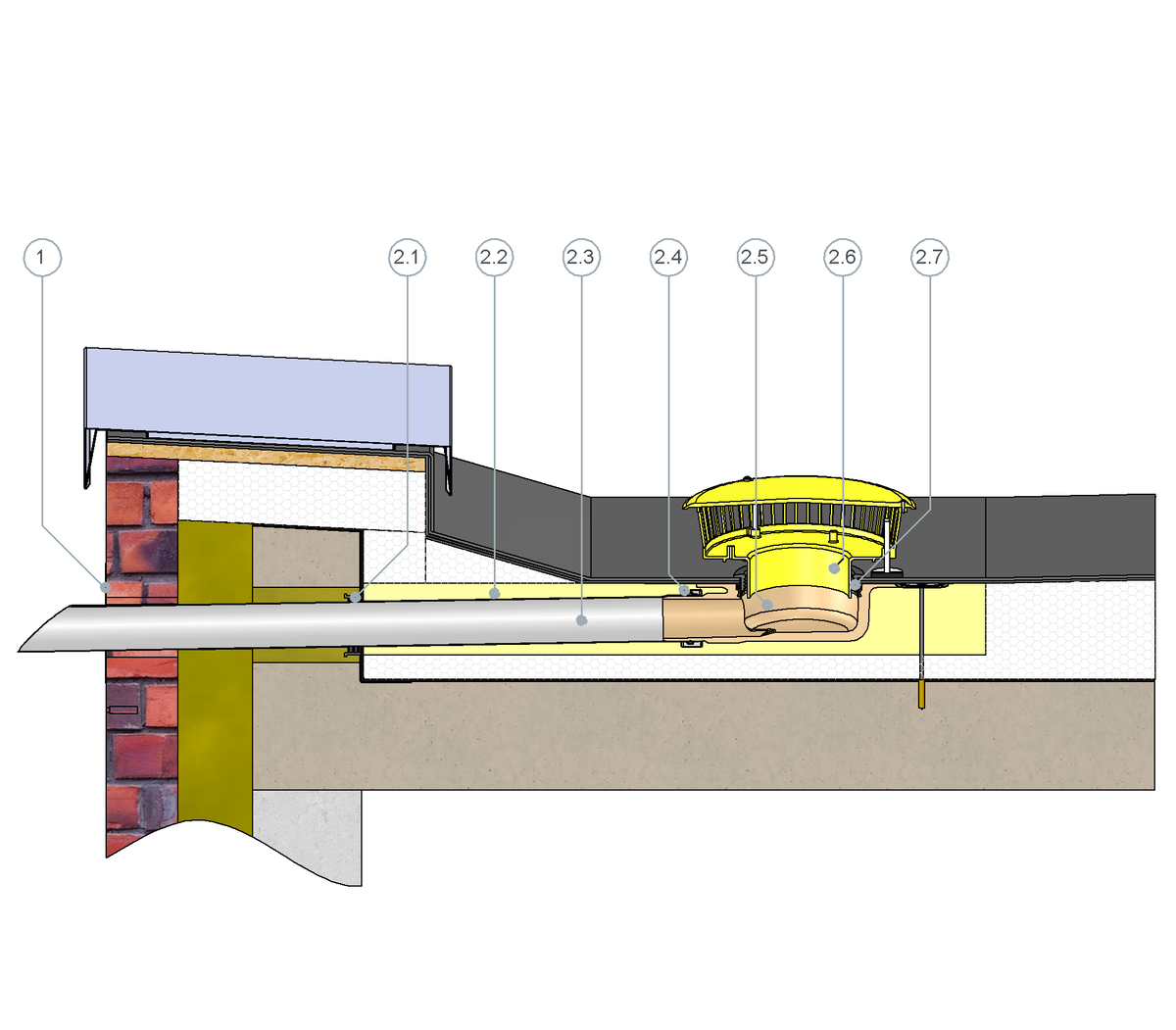

SitaIndra emergency drainage set as waterspout in a non-ventilated roof structure
SitaIndra emergency drainage set consisting of:
2.1 SitaMore vapour barrier plate flex
2.2 SitaIndra insulating body
2.3 SitaPipe Edelstahl pipe
2.4 SitaPipe Edelstahl safety clamp
2.5 SitaIndra base body
2.6 SitaIndra retaining element
2.7 Sealing ring
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape

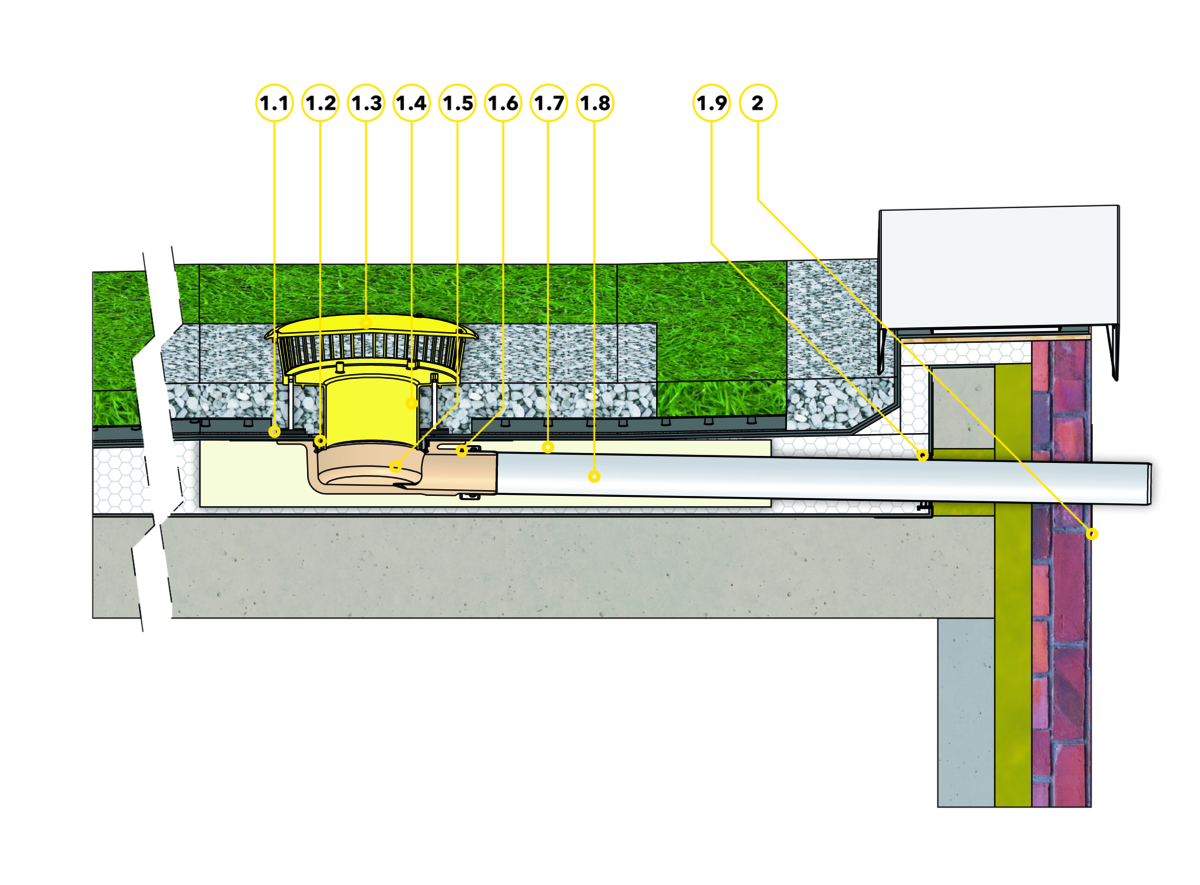

SitaIndra emergency drainage as waterspout in a non-ventilated roof structure with greenery
1.1 Rubber-metal buffer, height-adjustable
1.2 Sealing ring
1.3 Closed cover
1.4 Retaining element
1.5 SitaIndra base body
1.6 SitaPipe Edelstahl safety clamp
1.7 SitaIndra insulating body
1.8 SitaPipe Edelstahl pipe
1.9 SitaMore vapour barrier plate flex
2 SitaAttika cladding cover plate
- roof greenery according to system provider
- drainage mat
- building protection mat
- Sealing
- Heat insulation
- Vapour barrier
- Substructure
