SitaPipe PP

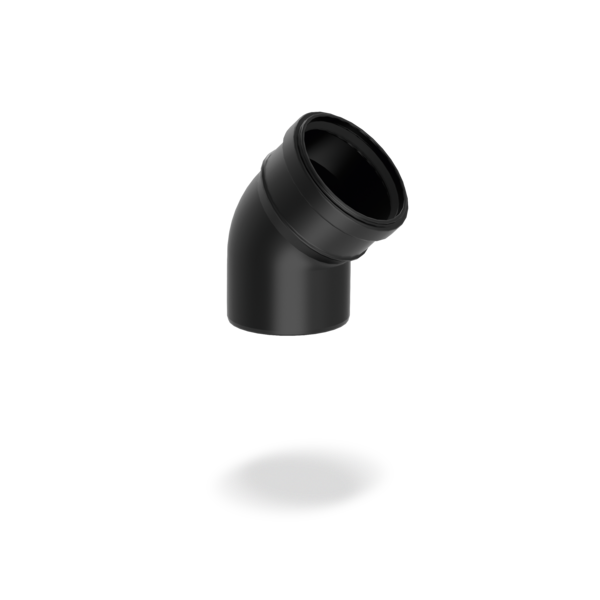

bend

Attributes

White internal surfaces to simplify video inspections
Mechanical resistance, very high mechanical strength, even against impacts up to -10°C
System resistant to underpressures up to - 400 mbar and overpressures up to 1.5 bar
Good acoustic comfort: 16 dB(A) in accordance with EN 14366 and 18 dB(A) in accordance with DIN 4109 at a flow rate of 2 l/s
Ecological because it is made of fully recyclable material
Can be connected to other materials such as SitaPipe stainless steel, PE, PVC and PP

Technical drawing

Size DN	External diameter OD (mm)	Bend	a (mm)	b (mm)
100	110	15°	59	61
100	110	30°	59	61
100	110	45°	59	61
100	110	87,3°	61	61
100	110	67.3°	59	61
125	125	15°	64	66
125	125	30°	64	66
125	125	45°	64	66
125	125	87,3°	59	66
125	125	67.3°	64	66
150	160	87,3°	79	75
150	160	30°	79	75
150	160	15°	79	83
150	160	45°	79	75
70	75	15°	52	53
70	75	30°	52	53
70	75	45°	52	53
70	75	87,3°	52	53
70	75	67.3°	52	53
50	50	15°	46	48
50	50	30°	46	48
50	50	87,3°	46	48
50	50	67.3°	46	48
50	50	45°	46	48
90	90	45°	56	56
90	90	87.3°	56	56
90	90	30°	56	56
90	90	15°	56	56

Performance text Installation Examples

SitaStandard vertical with SitaPipe PP pipe system

1 SitaStandard insulating body for extension unit

SitaStandard extension unit, consisting of:

2.1 Sealing ring
2.2 Base body

SitaStandard, vertical, consisting of:

3.1 Dome grate
3.2 Base body

4 SitaPipe PP base plate
5 SitaPipe PP threaded rod
6 SitaPipe PP pipe clamp
7 SitaPipe PP bend 45°
8 SitaPipe PP pipe

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

Downloads

SitaPipe PP			Article no.
Bend
	DN 100	67°	60041167	Show product
	DN 125	67°	60041267	Show product
	DN 100	15°	60041511	Show product
	DN 125	15°	60041512	Show product
	DN 150	15°	60041516	Show product
	DN 50	15°	60041550	Show product
	DN 70	15°	60041575	Show product
	DN 90	15°	60041590	Show product
	DN 100	30°	60043011	Show product
	DN 125	30°	60043012	Show product
	DN 150	30°	60043016	Show product
	DN 50	30°	60043050	Show product
	DN 70	30°	60043075	Show product
	DN 90	30°	60043090	Show product
	DN 100	45°	60044511	Show product
	DN 125	45°	60044512	Show product
	DN 150	45°	60044516	Show product
	DN 50	45°	60044550	Show product
	DN 70	45°	60044575	Show product
	DN 90	45°	60044590	Show product
	DN 50	67°	60046750	Show product
	DN 70	67°	60047567	Show product
	DN 100	87.3°	60048811	Show product
	DN 125	87.3°	60048812	Show product
	DN 150	87.3°	60048816	Show product
	DN 50	87.3°	60048850	Show product
	DN 70	87.3°	60048875	Show product
	DN 90	87,3°	60048890	Show product
