SitaRetention
Fix
Attributes
- Simple insertion in the outlet
- Can be individually shortened

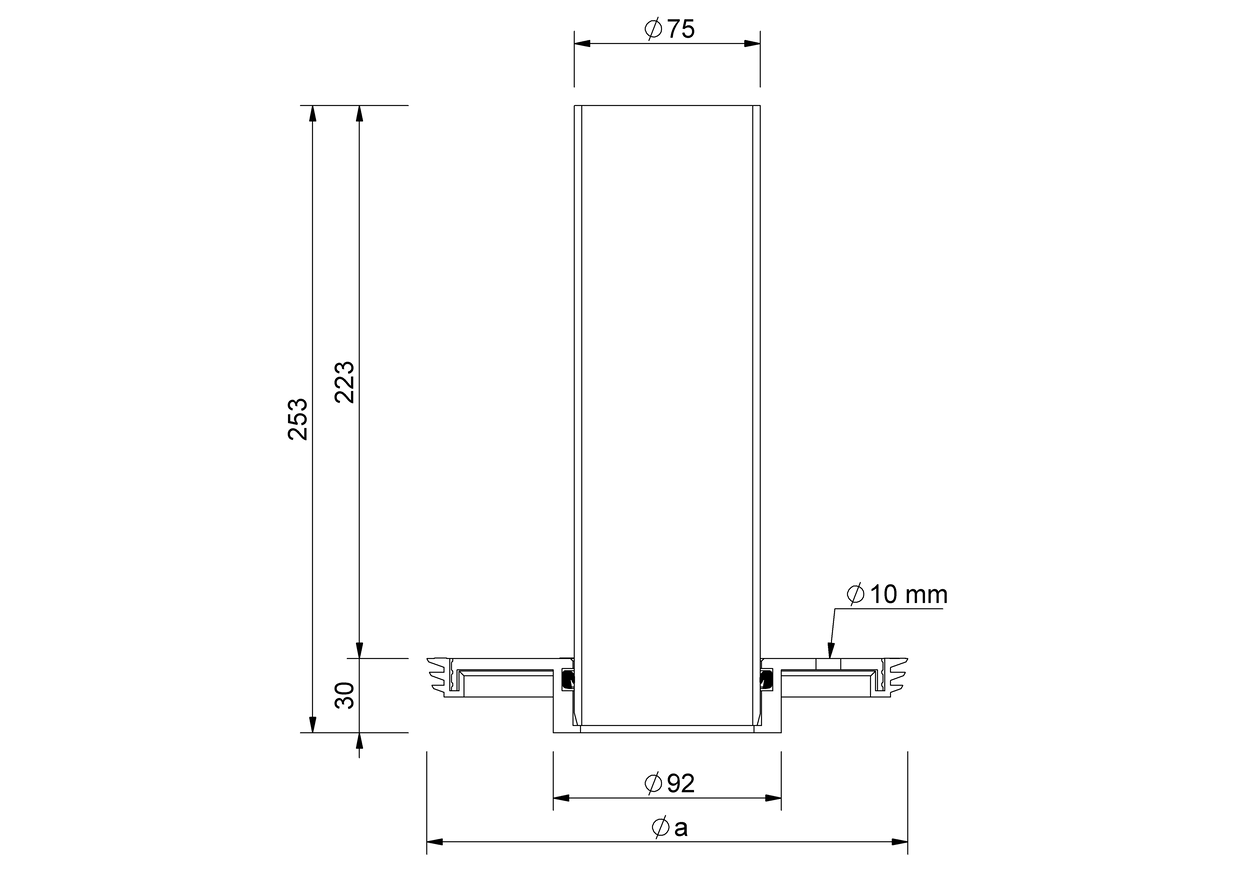

Technical drawing
| For model/series | a (mm) |
|---|---|
| SitaTrendy | 151 |
| SitaStandard, SitaIndra, SitaMulti | 194 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection

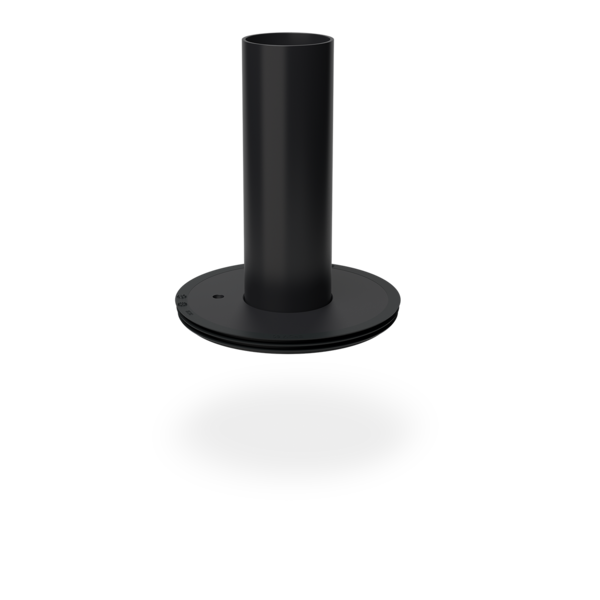

SitaRetention Fix, made of polyamide (base plate) and HDPE (ventilation pipe), with a predefined opening to ensure a controlled discharge of rainwater from a retention roof, for installation in roof outlets of the SitaStandard, SitaIndra and SitaMulti or SitaTrendy series. The ventilation pipe can be individually shortened on site, unshortened height 223 mm, with sealing rings made of EPDM, supply and install to professional standards.

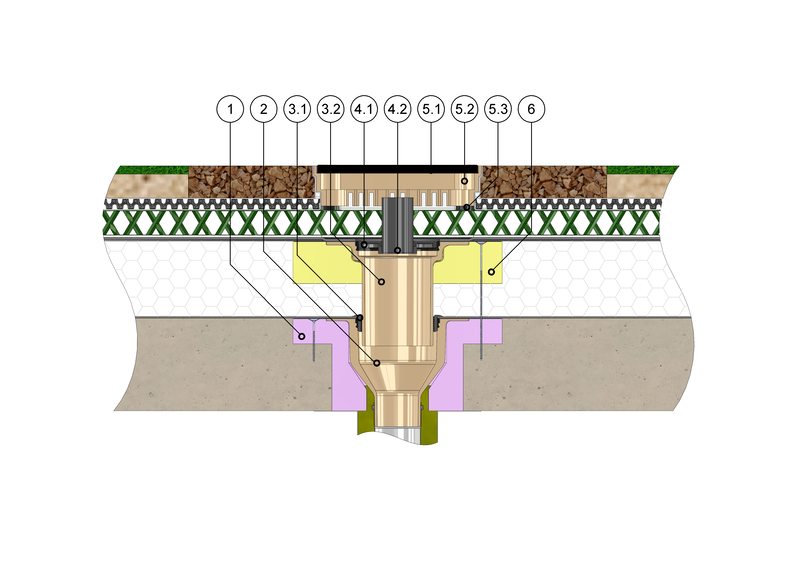

SitaRetention green roof shaft and SitaRetention Fix with SitaStandard in a non-ventilated roof structure with extensive greenery
1 SitaStandard insulating body
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber-metal buffers
6 SitaStandard insulating body for extension unit
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber-metal buffers
6 SitaStandard insulating body for extension unit
Non-ventilated roof structure with extensive greenery to the general rules of engineering with:
- Roof greenery according to system supplier
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

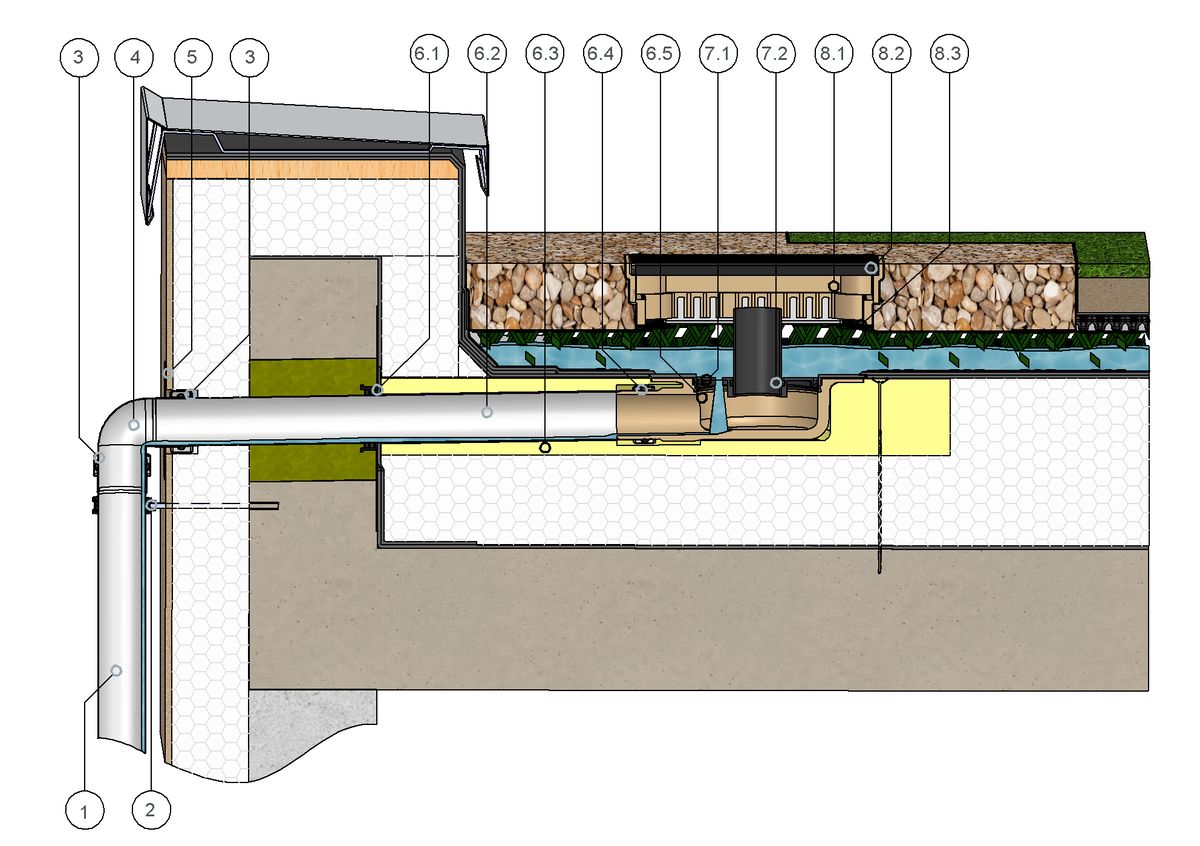

SitaIndra without dome grate with SitaRetention Fix in a non-ventilated roof structure with retention green roof
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 SitaMore vapour barrier plate flex
6.2 SitaPipe Edelstahl pipe
6.3 SitaIndra insulating body
6.4 SitaPipe Edelstahl safety clamp
6.5 SitaIndra base body
SitaRetention Fix consisting of:
7.1 Base plate with fastening ring
7.2 Ventilation pipe
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber-metal buffers
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 SitaMore vapour barrier plate flex
6.2 SitaPipe Edelstahl pipe
6.3 SitaIndra insulating body
6.4 SitaPipe Edelstahl safety clamp
6.5 SitaIndra base body
SitaRetention Fix consisting of:
7.1 Base plate with fastening ring
7.2 Ventilation pipe
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber-metal buffers
Retention roof in non-ventilated roof structure to the general rules of engineering with:
- Retention structure and roof greenery according to system supplier
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
SitaRetention Fix with SitaStandard in a non-ventilated roof structure
1 SitaStandard insulating body
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber-metal buffers
6 SitaStandard insulating body for extension unit
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber-metal buffers
6 SitaStandard insulating body for extension unit
Non-ventilated roof structure with extensive greenery to the general rules of engineering with:
- Roof greenery according to system supplier
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaRetention | Article no. | ||
|---|---|---|---|
Fix | |||
| SitaStandard, SitaIndra, SitaMulti | 409103 | Show product | |
| SitaTrendy | 409104 | Show product |
