SitaRondo

Parapet outlet

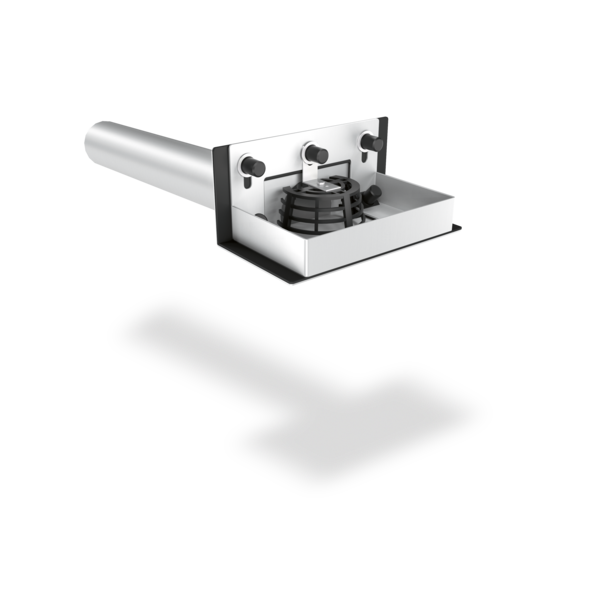

Foto_S_SitaRondo_Anstau-Losflansch_DN100.tif

Attributes

Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

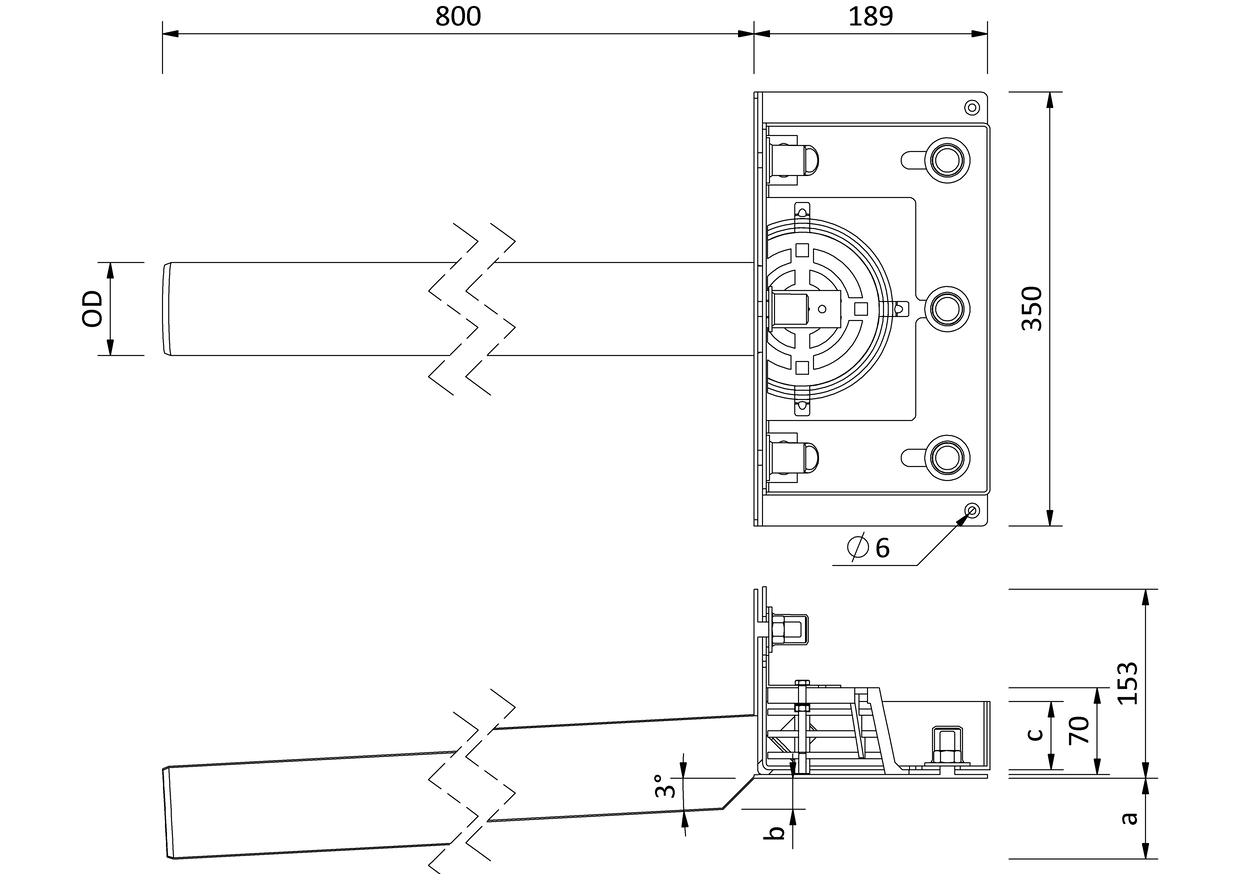

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)	a (mm)	b (mm)	c (mm)
100	110	170	76	37	35
100	110	170	76	37	100
100	110	170	76	37	55
125	125	185	81	42	100
125	125	185	81	42	35
125	125	185	81	42	55
50	50	110	57	16	100
50	50	110	57	16	35
50	50	110	57	16	55
70	75	135	65	25	35
70	75	135	65	25	100
70	75	135	65	25	55

Performance text

SitaRondo with loose retaining flange, made of rust-proof stainless steel, material number 1.4301, with screw-on flange construction, nominal widths DN 50, DN 70, DN 100 and DN 125, 800 mm pipe length, inclination 3°, with loose retaining flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes. With M12 threaded bolt, washers, nuts, protective caps and dome grate, supply and installation to professional standards.

Streamflow

Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
50	0.5	1.1	1.2	1.3	1.3	1.3	1.4	1.4	1.4	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
70	0.8	1.2	1.4	1.6	1.7	1.8	1.9	2	2.1	2.1	2.2	2.3	2.4	2.4	2.4	2.4	2.4	2.4	2.4	2.4
100	0.8	1.5	2	2.4	2.8	3.1	3.4	3.7	3.9	4.1	4.3	4.5	4.7	4.9	5	5.2	5.4	5.6	5.8	5.9
125	0.8	1.6	2.3	2.8	3.3	3.7	4	4.4	4.8	5.1	5.4	5.6	5.9	6.1	6.4	6.7	6.9	7.2	7.4	7.4

Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.

Installation Examples

SitaRondo with loose retaining flange and SitaDrain profile frame in a non-ventilated roof structure with slab paving in a gravel bed

1 SitaAttika cladding cover plate
2 SitaMore vapour barrier plate flex

SitaRondo with loose retaining flange consisting of:
3.1 SitaRondo
3.2 Screws, washers and seals
3.3 Loose retaining flange

4 SitaDrain® gravel strip

SitaDrain® profile frame consisting of:
5.1 Inspection grate
5.2 Profile frame

Non-ventilated roof structure according to the general rules of engineering with slab cover in split bed with:

Slab paving
Split bed
Filter fleece
Surface drainage
Building protection mat
Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet opening with joint tape

Downloads

Technical drawings

Installation Instructions

PDF Einbauanleitung_SitaRondo_SitaSpy_E280028.pdf

Article selection

SitaRondo			Article no.
Loose retaining flange
	DN 50	35 mm	18201199	Show product
	DN 50	55 mm	18202099	Show product
	DN 50	100 mm	18203099	Show product
	DN 70	35 mm	18221099	Show product
	DN 70	55 mm	18222099	Show product
	DN 70	100 mm	18223099	Show product
	DN 100	35 mm	18241099	Show product
	DN 100	55 mm	18242099	Show product
	DN 100	100 mm	18243099	Show product
	DN 125	35 mm	18261099	Show product
	DN 125	55 mm	18262099	Show product
	DN 125	100 mm	18263099	Show product
