SitaStandard
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

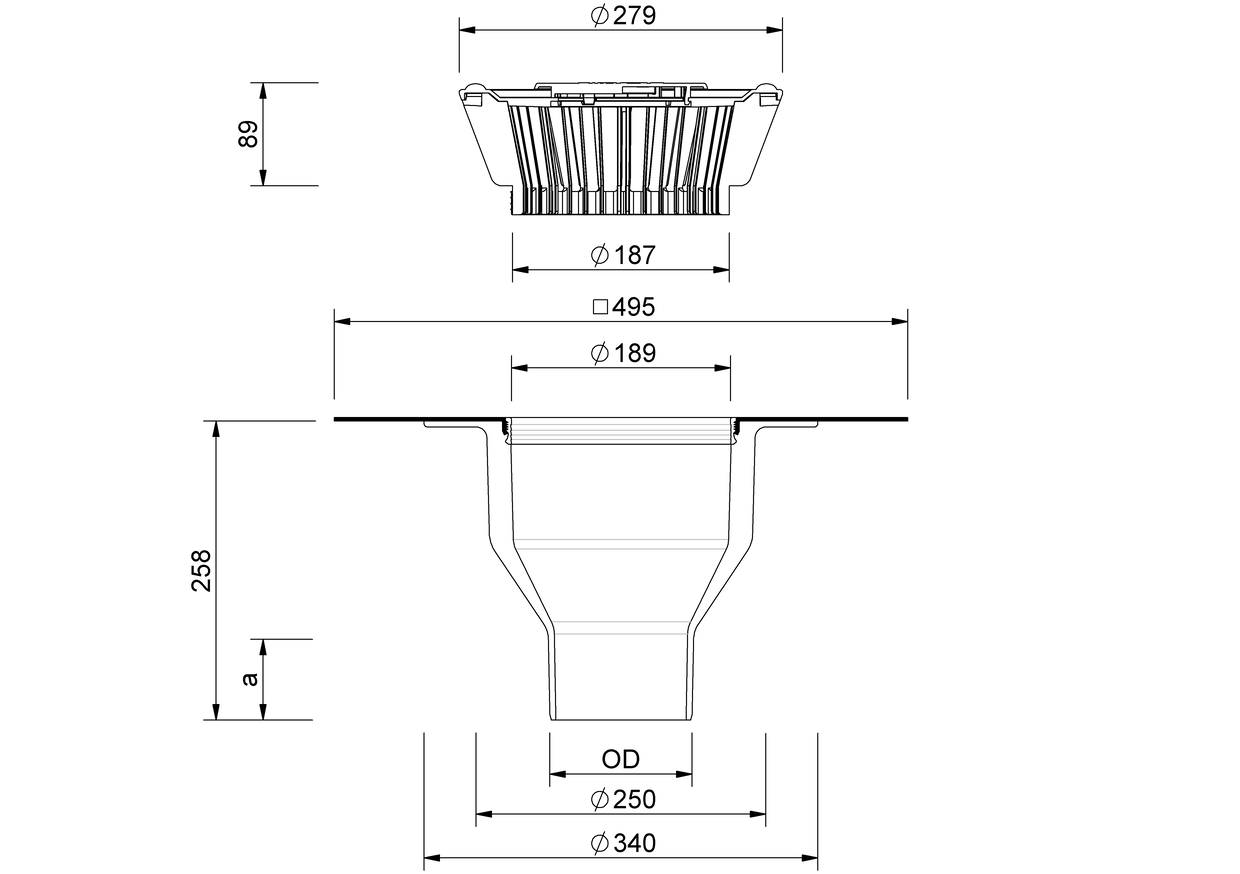

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) |
|---|---|---|---|
| 70 | 75 | 250 | 65 |
| 100 | 110 | 250 | 67 |
| 125 | 125 | 250 | 70 |
| 150 | 160 | 250 | 77 |
| 200 | 200 | 250 | 101 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaStandard_mit_Anstauelement_ im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaStandard_HE_nicht_beluefteter_Dachaufbau_mit_Begruenung.DWG
DWG EB_SitaStandard_senkrecht_im_Umkehrdach_mit_SitaGreen_Gruendachschacht.DWG
DWG EB_SitaStandard_senkrecht_mit_SitaDrain_Flaechenrahmen.DWG
PDF SitaStandard_mit_Anstauelement_und_Fallleitung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaStandard_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau_mit_Begruenung.pdf
PDF SitaStandard_senkrecht_mit_SitaGreen_Gruendachschacht_fuer_die_Hauptentwaesserung_im_Umkehrdach.pdf
PDF SitaDrain_Flaechenrahmen_mit_SitaStandard_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.pdf
PDF TechnischeZeichnung_100210_en.pdf
PDF TechnischeZeichnung_100400_en.pdf
PDF TechnischeZeichnung_100410_en.pdf
PDF TechnischeZeichnung_100600_en.pdf
PDF TechnischeZeichnung_100610_en.pdf
PDF TechnischeZeichnung_100800_en.pdf
PDF TechnischeZeichnung_100810_en.pdf
PDF TechnischeZeichnung_101000_en.pdf
PDF TechnischeZeichnung_101010_en.pdf
DWG TZ_DB_SitaStandard_senkrecht_DN100.dwg
DWG TZ_DB_SitaStandard_senkrecht_DN125.dwg
DWG TZ_DB_SitaStandard_senkrecht_DN150.dwg
DWG TZ_DB_SitaStandard_senkrecht_DN200.dwg
DWG TZ_DB_SitaStandard_senkrecht_DN70.dwg
Article selection

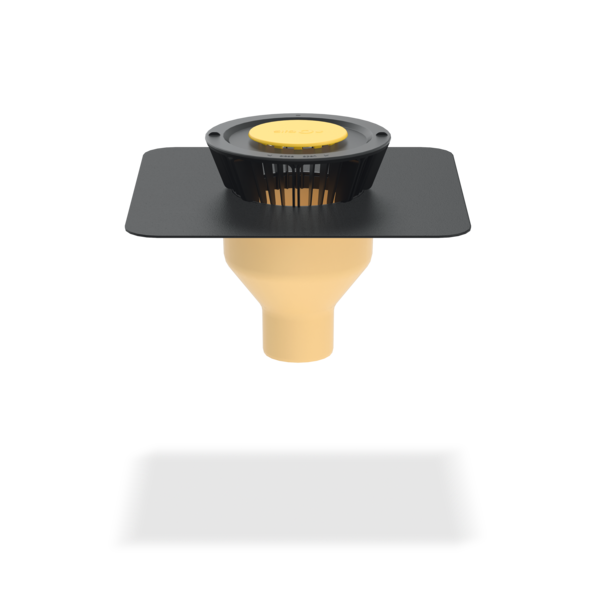

SitaStandard vertical, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 100, DN 125, DN 150 and DN 200. For direct connection to pipes with plug-in coupler, for conventional drainage, with large foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the supplied dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.7 | 1.7 | 2.7 | 3.8 | 4.8 | 6 | 7.1 | 8.3 | 9.4 | 10.8 | 12.2 | 13.5 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| 100 | 0.7 | 1.8 | 2.8 | 3.8 | 4.8 | 6.1 | 7.4 | 8.5 | 9.6 | 11 | 12.3 | 13.6 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| 125 | 0.7 | 1.8 | 2.9 | 4.1 | 5.2 | 6.4 | 7.6 | 8.7 | 9.7 | 11 | 12.3 | 14.1 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| 150 | 0.6 | 1.6 | 2.6 | 3.6 | 4.6 | 5.9 | 7.2 | 8.2 | 9.2 | 11 | 12.8 | 14 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 |
| 200 | 0.5 | 1.5 | 2.5 | 3.5 | 4.5 | 5.8 | 7.1 | 8.1 | 9.2 | 10.6 | 12 | 13.3 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.2 | 3.1 | 4.6 | 6 | 7.6 | 9.2 | 11.1 | 13 | 13.9 | 14.8 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 |
| 100 | 1.6 | 2.8 | 4 | 5.5 | 7 | 8.8 | 10.5 | 12.3 | 14.1 | 16.7 | 19.3 | 22.8 | 26.2 | 26.2 | 26.2 | 26.2 | 26.2 | 26.2 | 26.2 | 26.2 |
| 125 | 1.2 | 2.3 | 3.4 | 4.9 | 6.3 | 7.9 | 9.5 | 11.6 | 13.6 | 16.1 | 18.6 | 21.9 | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 |
| 150 | 1.4 | 2.4 | 3.4 | 4.9 | 6.3 | 8 | 9.6 | 11.6 | 13.6 | 16.2 | 18.7 | 22.3 | 25.8 | 25.8 | 25.8 | 25.8 | 25.8 | 25.8 | 25.8 | 25.8 |
SitaStandard vertical, in a non-ventilated roof structure

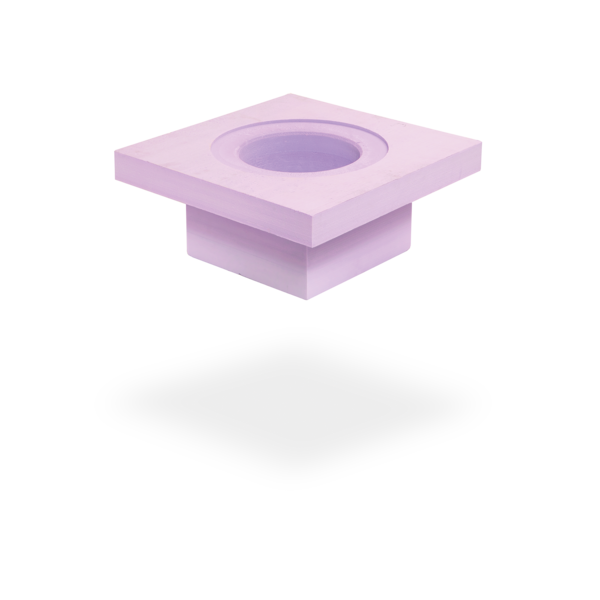

1 SitaStandard insulating body for outlet
SitaStandard vertical consisting of:
2.1 Base body with connection sleeve of choice

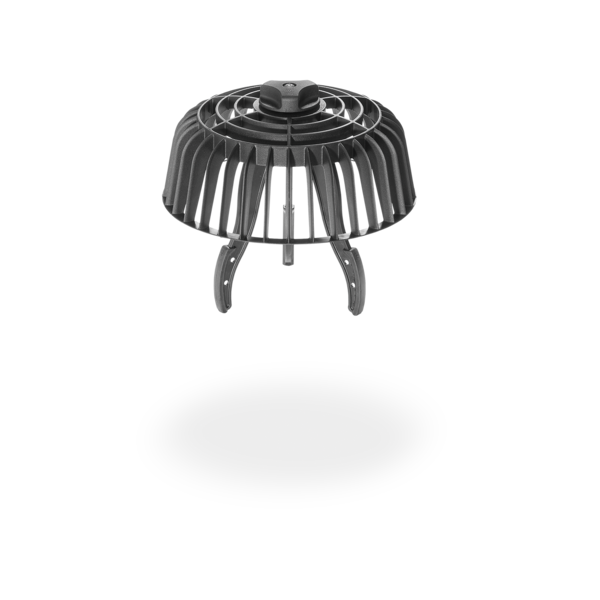

2.2 Dome grate base body
2.3 Dome grate cover

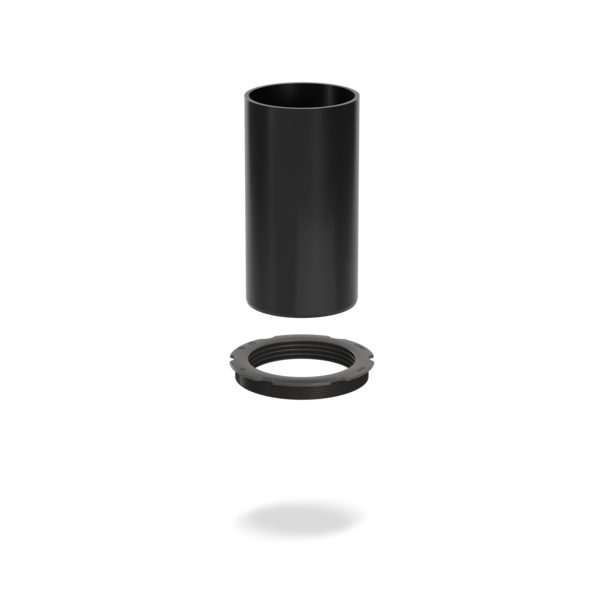

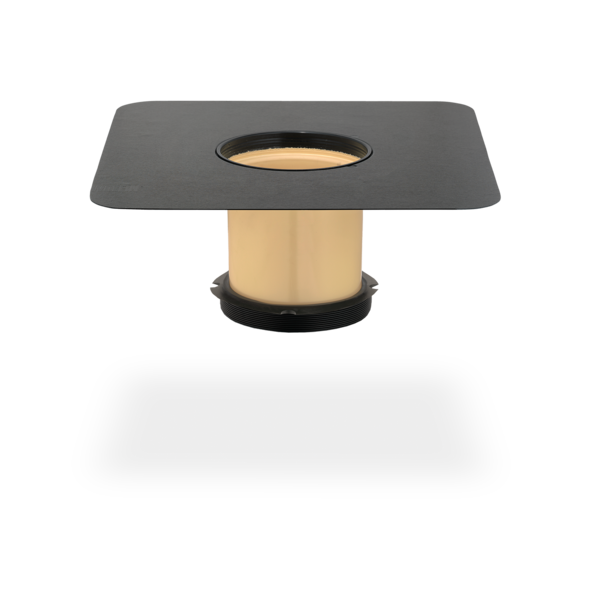

SitaStandard extension unit, consisting of:
3.1 Base body with connection sleeve of choice
3.2 Sealing ring
4 SitaStandard insulating body for extension unit

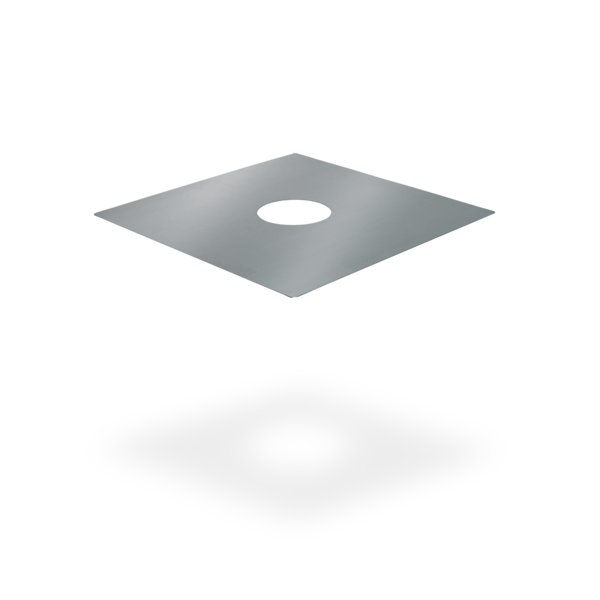

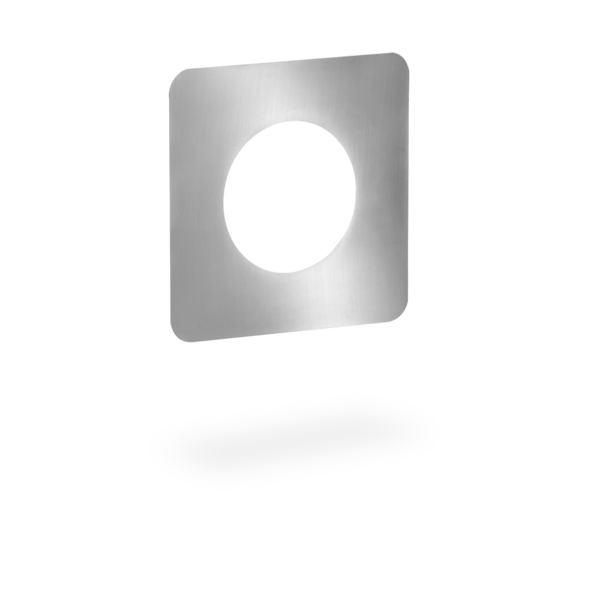

5 SitaMore reinforcement plate
SitaStandard vertical consisting of:
2.1 Base body with connection sleeve of choice
2.2 Dome grate base body
2.3 Dome grate cover
SitaStandard extension unit, consisting of:
3.1 Base body with connection sleeve of choice
3.2 Sealing ring
4 SitaStandard insulating body for extension unit
5 SitaMore reinforcement plate
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

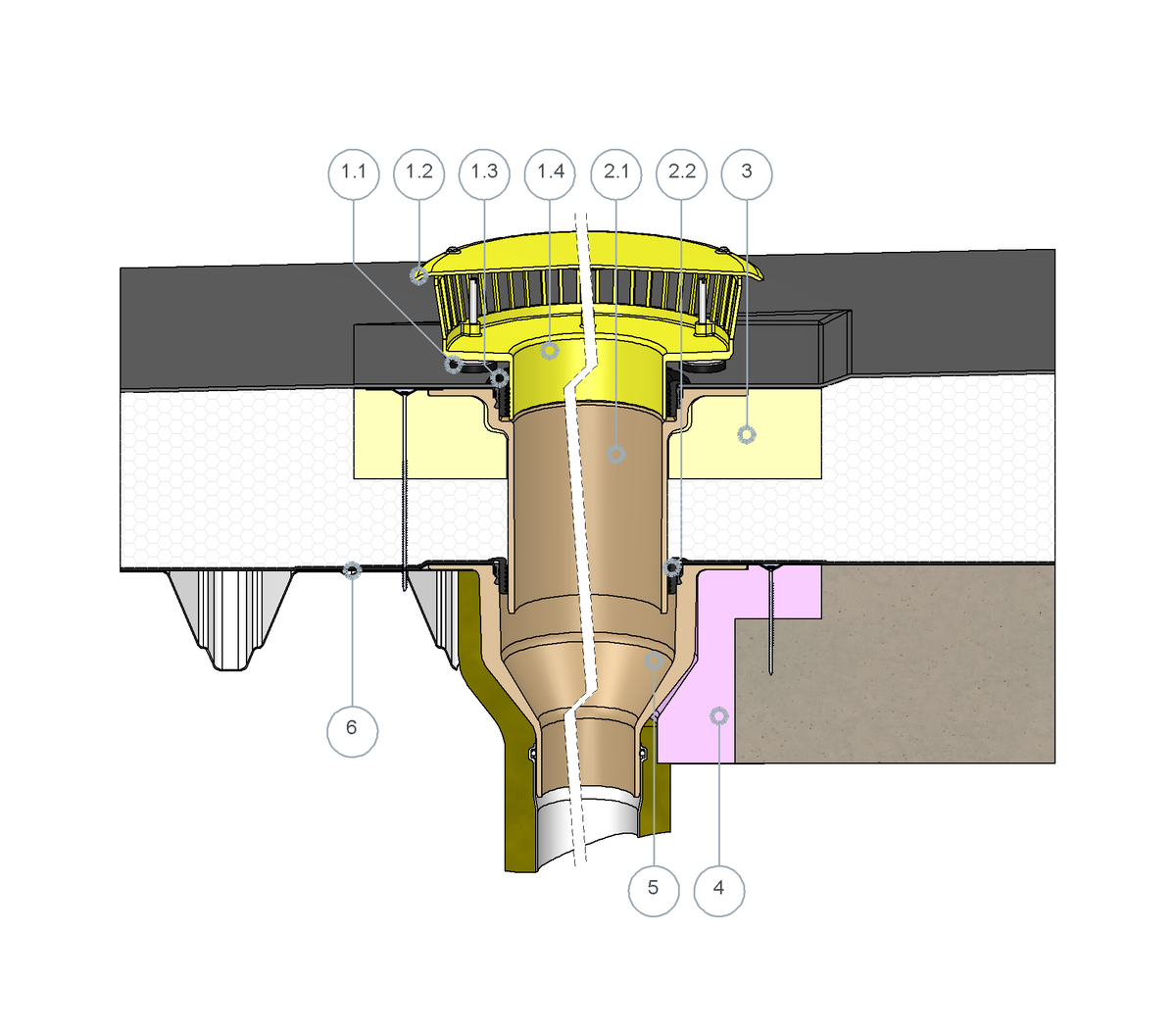

SitaStandard with retaining element and downpipe in a non-ventilated roof structure

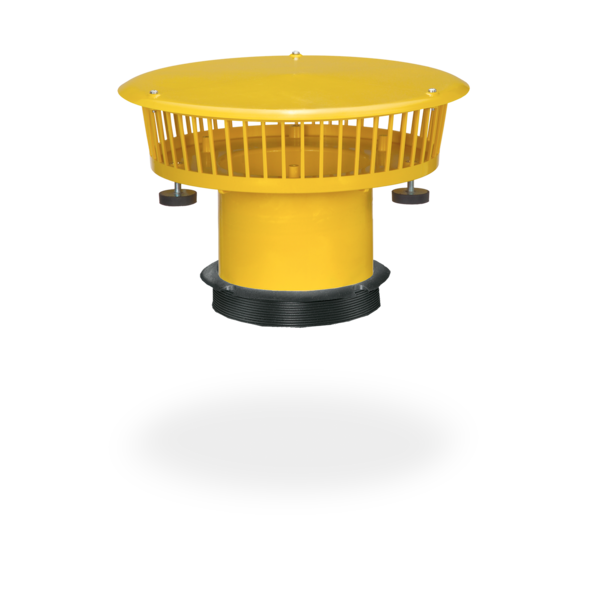

SitaMore retaining element consisting of:
1.1 Height-adjustable rubber-metal buffers
1.2 Closed cover
1.3 Sealing ring
1.4 Base body
SitaStandard extension unit consisting of:
2.1 Base body
2.2 Sealing ring
1.1 Height-adjustable rubber-metal buffers
1.2 Closed cover
1.3 Sealing ring
1.4 Base body
SitaStandard extension unit consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaStandard insulating body for extension unit
4 SitaStandard insulating body for outlet
5 SitaStandard vertical
6 SitaMore reinforcement plate
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

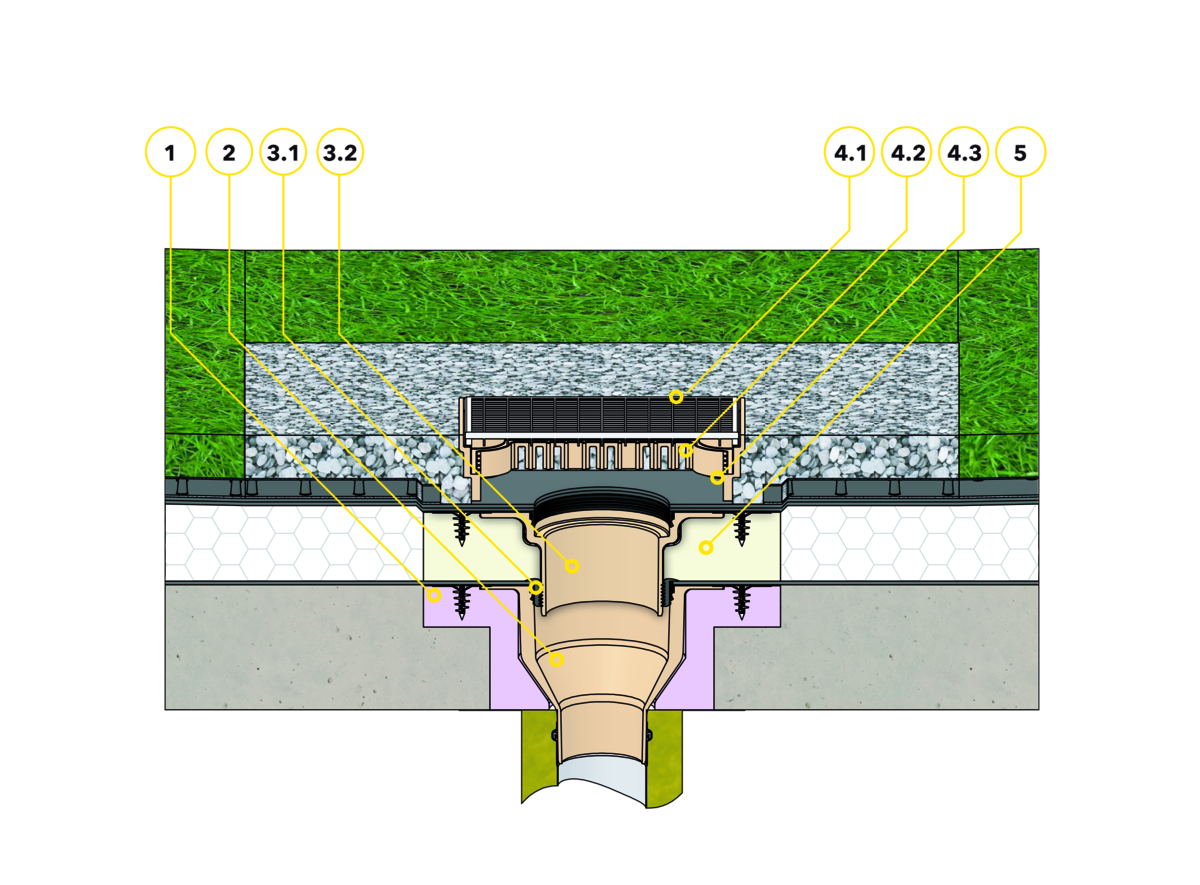

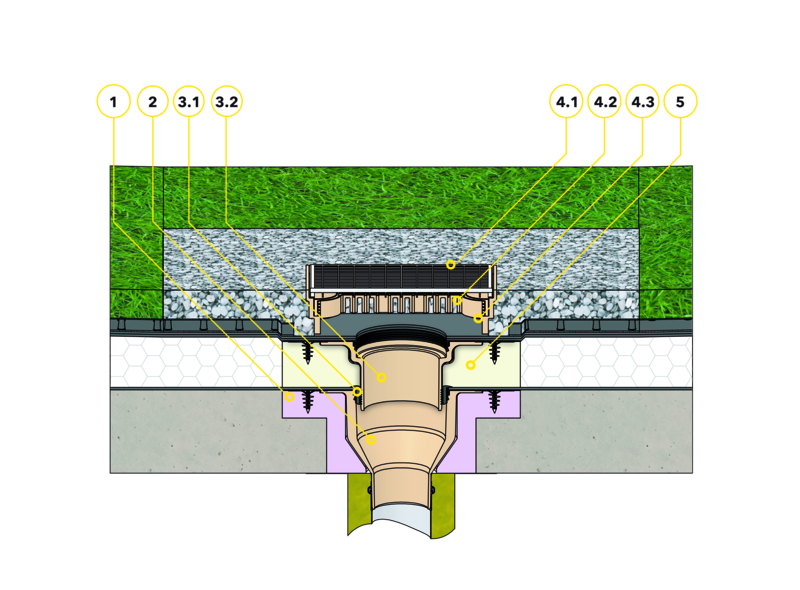

SitaStandard main drainage in a non-ventilated roof structure with greenery
1 SitaStandard insulating body
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
5 SitaStandard insulating body for extension unit
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
5 SitaStandard insulating body for extension unit
Non-ventilated roof structure with greenery according to the general rules of engineering with:
- roof greenery according to system provider
- drainage mat
- building protection mat
- Sealing
- Heat insulation
- Vapour barrier
- Substructure

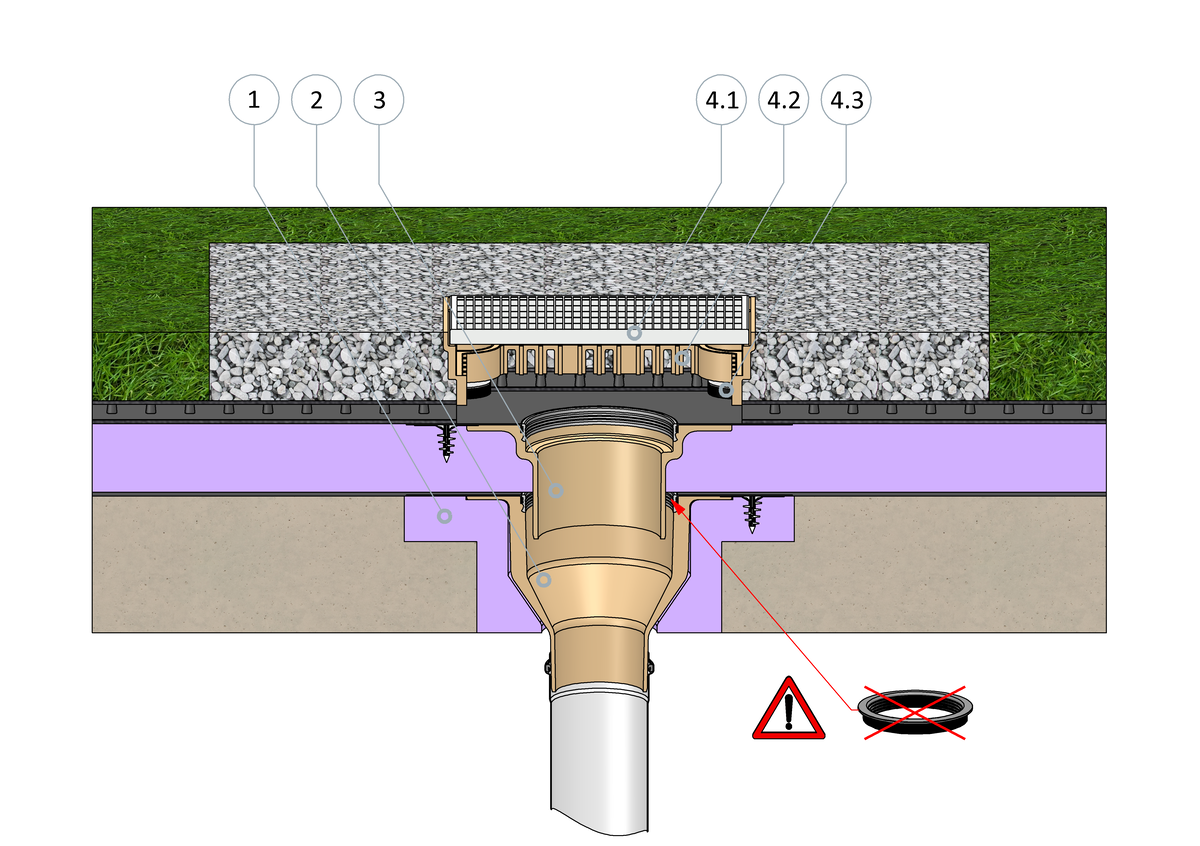

SitaStandard vertical with SitaGreen green roof shaft for main drainage in an inverted roof
1 SitaStandard insulating body
2 SitaStandard vertical
3 SitaStandard extension unit without sealing ring
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
2 SitaStandard vertical
3 SitaStandard extension unit without sealing ring
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system supplier
- Filter fabric
- Drainage mat
- Protective mat
- XPS thermal insulation
- Waterproof membrane
- Substructure
SitaDrain area frame with SitaStandard in a non-ventilated roof structure with slab paving on support pads
1 SitaStandard insulating body for outlet
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaDrain® area frame consisting of:
4.1 Inspection grate
4.2 Area frame
5 SitaStandard vertical
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaDrain® area frame consisting of:
4.1 Inspection grate
4.2 Area frame
5 SitaStandard vertical
Non-ventilated roof structure with slab paving on support pad to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
