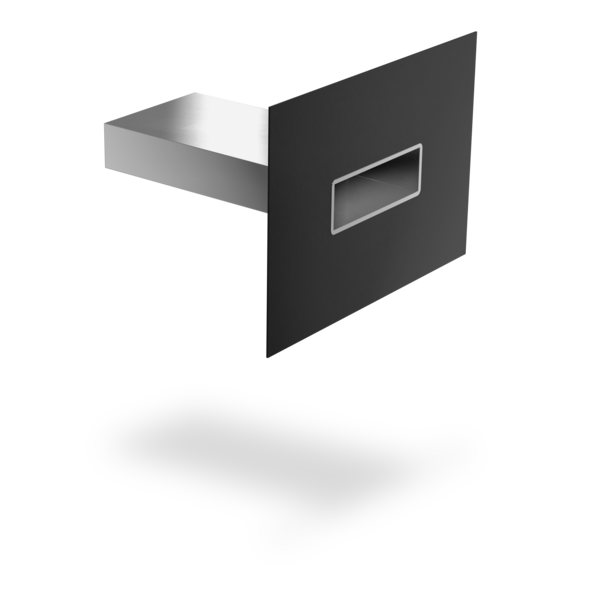

SitaSteel rectangular waterspout
Parapet outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

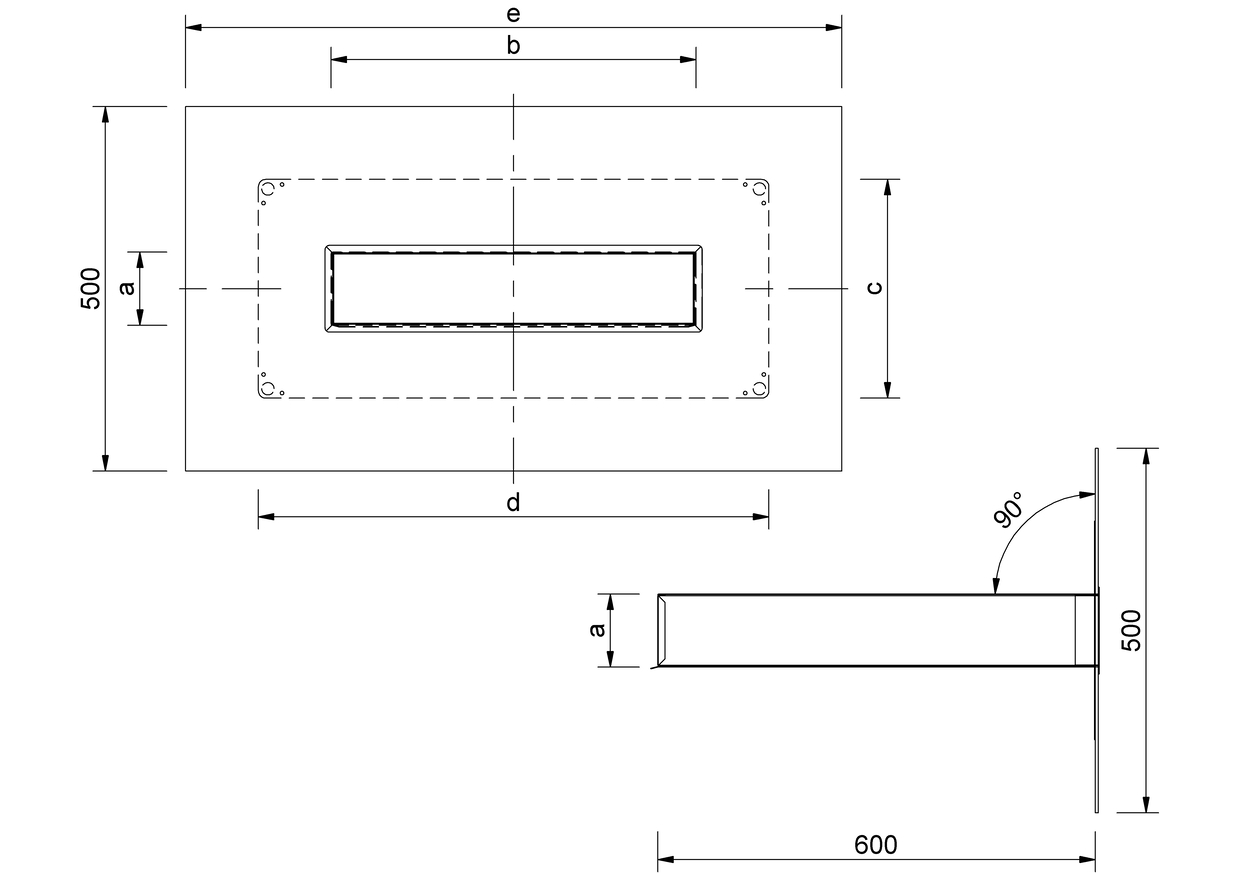

Technical drawing
| Pipe cross-section (mm x mm) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|
| 150 x 50 | 50 | 150 | 250 | 350 | 600 |
| 300 x 100 | 100 | 300 | 300 | 500 | 700 |
| 500 x 100 | 100 | 500 | 300 | 700 | 900 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaSteel rectangular rainwater outlet, made of stainless steel, material number 1.4401 spigot and 1.4301 flange, according to DIN EN 1253-2, spigot dimension 150 mm x 50 mm, 300 mm x 100 mm, 500 mm x 100 mm, with a spigot length of 600 mm and 3 degree inclination, with integrated selected connection sleeve, with pre-cut recesses in the flange for fixing to the parapet, supply and installation to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe cross-section (mm x mm) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 150 x 50 | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1.1 | 1.4 | 1.9 | 2.3 | 2.7 | 2.9 | 3.2 | 3.5 | 3.7 | 4 | 4.2 | 4.4 | 4.6 | 4.8 | 5 |
| 300 x 100 | 0.3 | 0.6 | 0.9 | 1.5 | 2 | 2.6 | 3.2 | 3.9 | 4.6 | 5.8 | 6.3 | 6.9 | 7.7 | 8.5 | 9.3 | 10.1 | 11.2 | 12.2 | 13.2 | 14.2 |
| 500 x 100 | 0.5 | 0.9 | 1.4 | 2.4 | 3.4 | 4.5 | 5.5 | 6.7 | 7.8 | 9.6 | 10.5 | 11.5 | 12.8 | 14 | 15.5 | 17 | 18.5 | 20 | 21.6 | 23.2 |

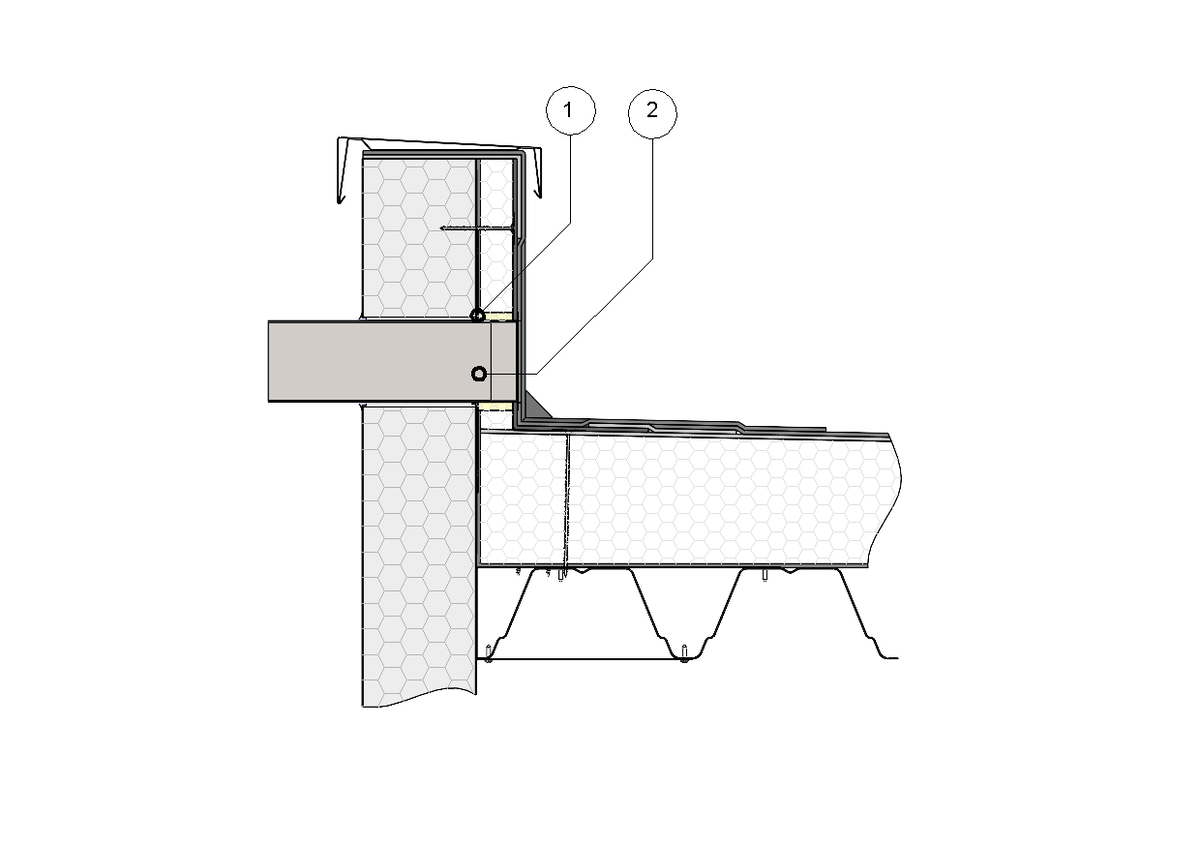

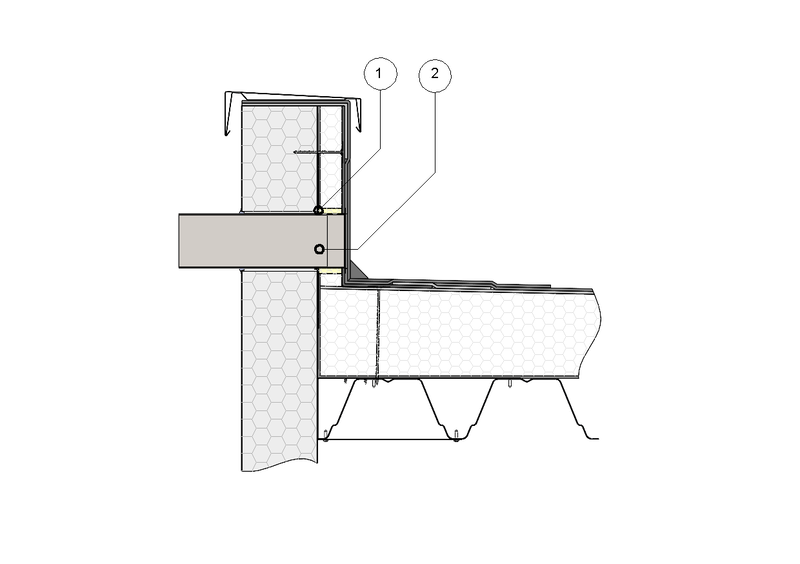

SitaSteel rectangular waterspout in a non-ventilated roof structure

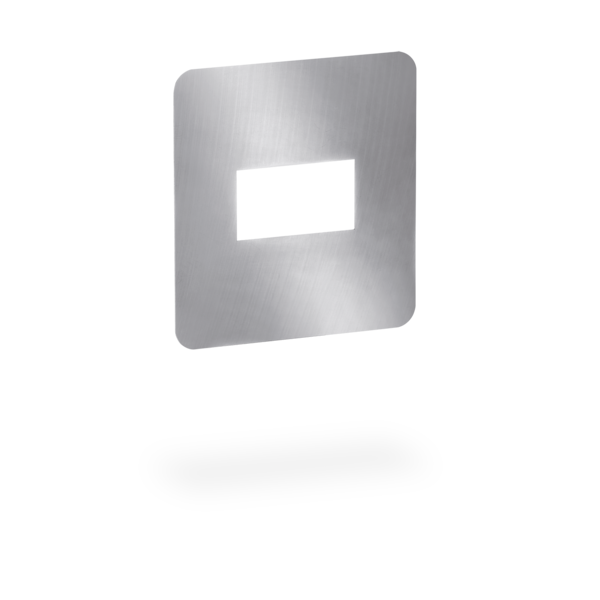

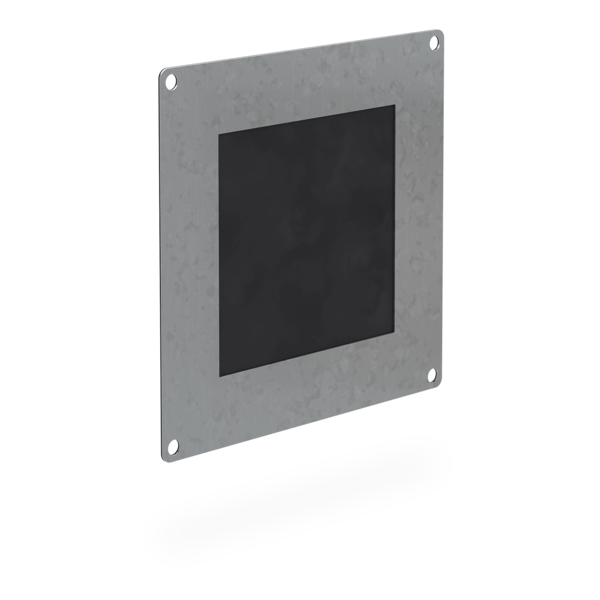

1 SitaSteel vapour barrier plate
2 SitaSteel rectangular waterspout
2 SitaSteel rectangular waterspout
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaSteel rectangular waterspout | Article no. | |||
|---|---|---|---|---|
| 150 x 50 | bitumen-sleeve | 30101000 | Show product | |
| 300 x 100 | bitumen-sleeve | 30101100 | Show product | |
| 500 x 100 | bitumen-sleeve | 30101200 | Show product |
+
