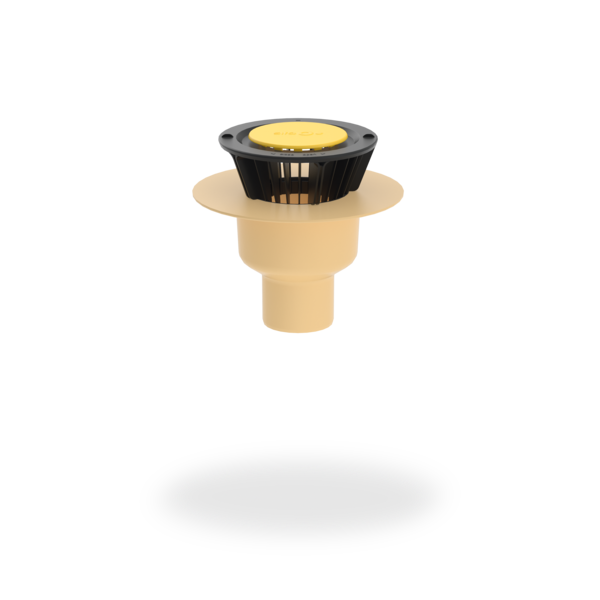

SitaTrendy

Conventional outlet

Attributes

Thermally insulated
Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

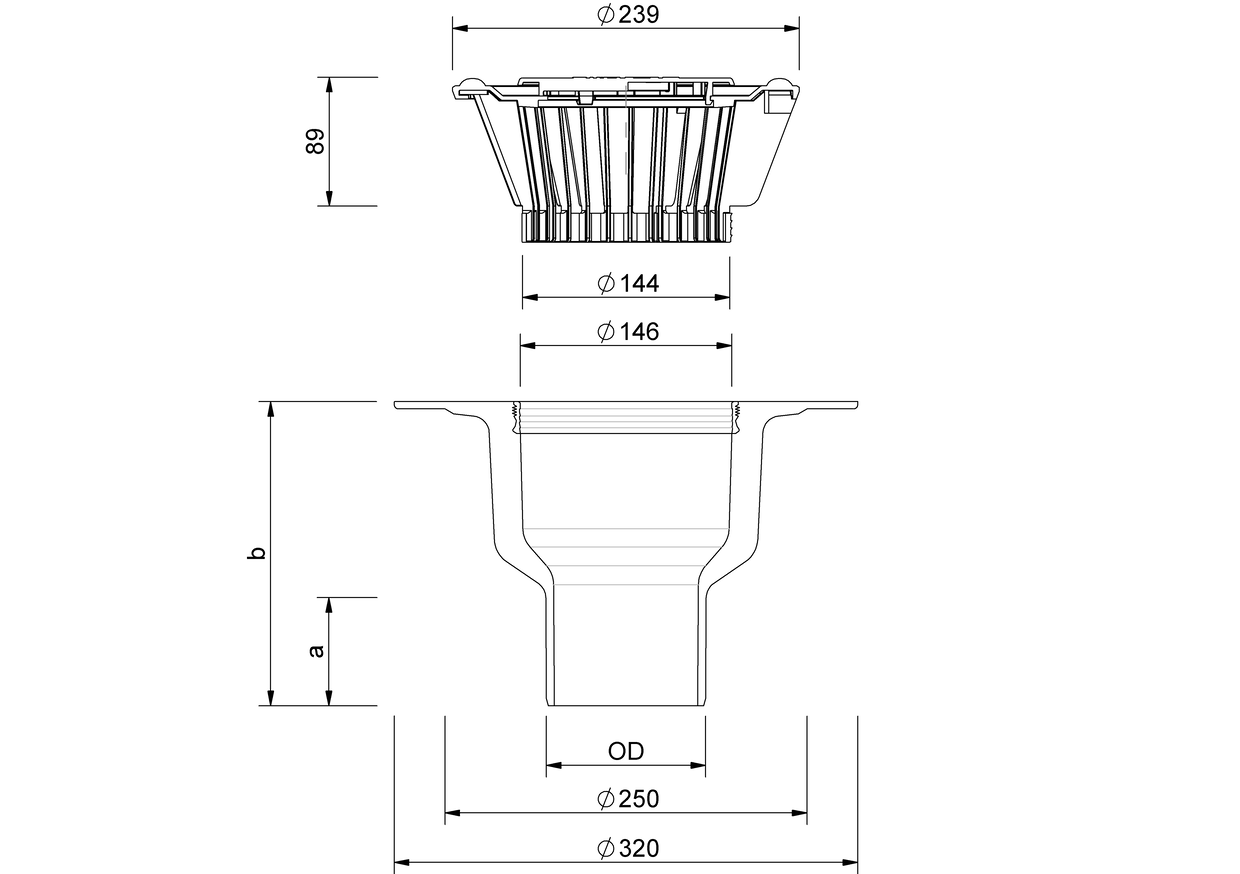

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)	a (mm)	b (mm)
125	125	250	79	210
90	90	250	56	125
70	75	250	63	210
100	110	250	75	210

Performance text

SitaTrendy Fluid vertical, made of polyurethane, thermally insulated, to DIN EN 1253-2, for liquid applied waterproofing, in sizes DN 70, DN 90, DN 100 and DN 125. For direct connection to pipes with plug-in coupler, for conventional drainage, including dome grate, supply and install to professional standards.

Streamflow

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	0.6	1.4	2.2	3.1	3.9	4.7	5.5	6.6	7.6	8.6	9.5	10.4	11.3	11.3	11.3	11.3	11.3	11.3	11.3	11.3
90	0.4	1.3	2.1	3.3	4.5	5.5	6.5	7.3	8	8.6	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2
100	0.6	1.5	2.3	3.3	4.3	5.2	6.1	7.3	8.5	9.4	10.3	11	11.7	11.7	11.7	11.7	11.7	11.7	11.7	11.7
125	0.7	1.6	2.4	3.3	4.2	5.1	5.9	7.3	8.7	10.1	11.4	12.7	14	14	14	14	14	14	14	14

Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	1.2	2.1	2.9	4.4	5.8	7.3	8.8	10.5	12.1	12.4	12.6	13.1	13.5	13.5	13.5	13.5	13.5	13.5	13.5	13.5
90	1.2	2.3	3.3	4.9	6.4	7.9	9.4	11.2	13	14.8	16.6	18.8	20.9	20.9	20.9	20.9	20.9	20.9	20.9	20.9
100	1.2	2.3	3.3	4.7	6.1	7.8	9.4	11.4	13.3	15.2	17	19.6	22.2	22.2	22.2	22.2	22.2	22.2	22.2	22.2
125	1.2	2.2	3.2	4.6	6	7.5	9	10.7	12.4	14.3	16.2	18.5	20.8	20.8	20.8	20.8	20.8	20.8	20.8	20.8

Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.

Downloads

SitaTrendy			Article no.
Fluid vertical
	DN 90	Adhesive flange	150190	Show product
	DN 70	Adhesive flange	150290	Show product
	DN 100	Adhesive flange	150490	Show product
	DN 125	Adhesive flange	150690	Show product
