SitaTurbo

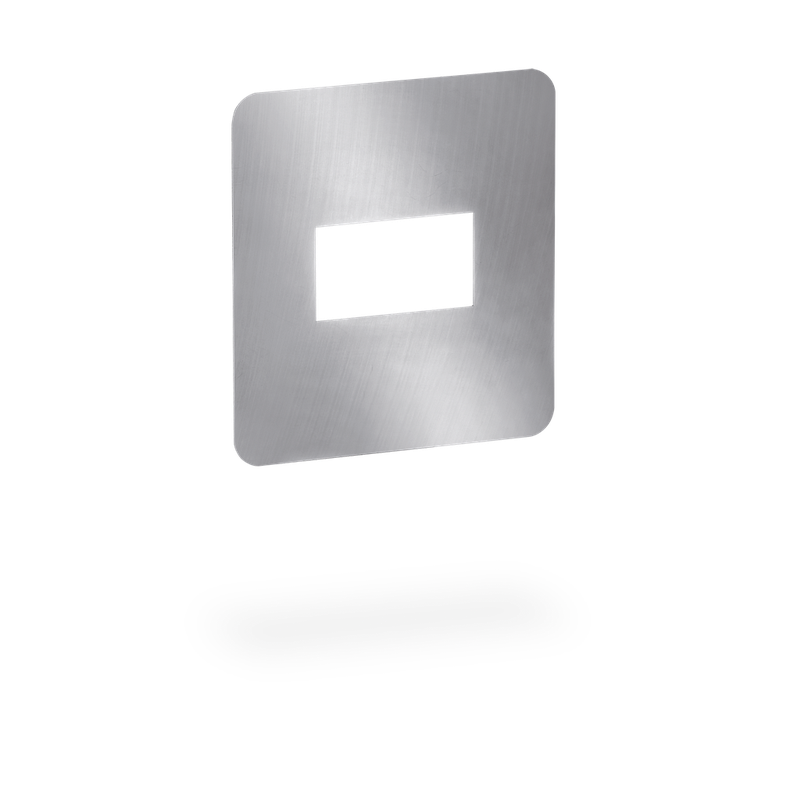

Cladding cover plate
- Products
Accessories
Cladding cover plate
Attributes
- Screwless fastening
- Matt surface

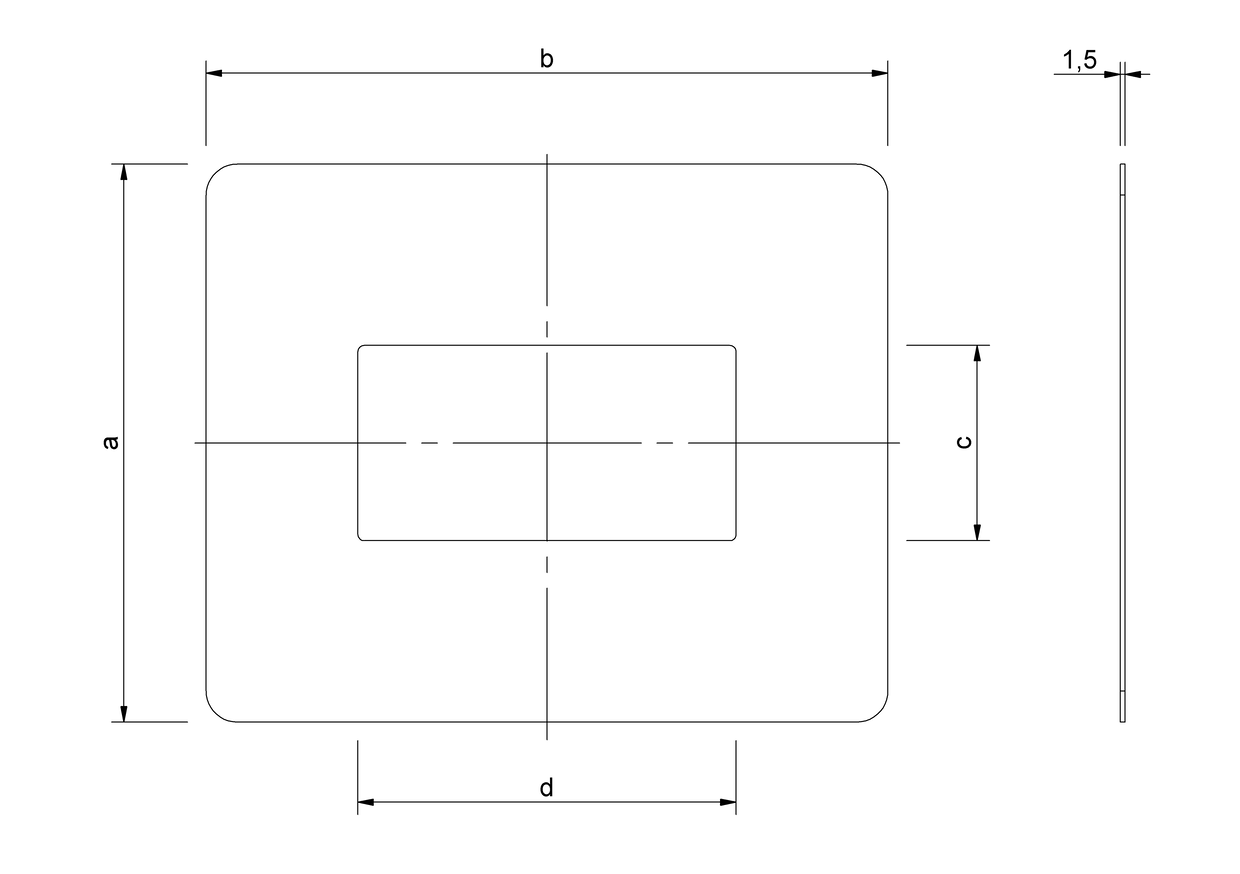

Technical drawing
| For model/series | Recess dimension (mm x mm) | a (mm) | b (mm) | c (mm) | d (mm) |
|---|---|---|---|---|---|
| SitaTurbo | 130 x 74 | 180 | 220 | 74 | 133 |
| SitaTurbo, SitaTurbo Max, SitaTurbo Max with retaining ring, SitaKaskade Flat parapet lead-through | 122 x 63 | 250 | 250 | 63 | 122 |
| SitaTurbo, SitaTurbo Max, SitaTurbo Max with retaining ring, SitaKaskade Flat parapet lead-through | 122 x 63 | 180 | 220 | 63 | 122 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_E189024_en.pdf
PDF TechnischeZeichnung_E189044_en.pdf
DWG TZ_DB_SitaTurbo_Fassadenabdeckplatte_220x180.DWG
DWG TZ_DB_SitaTurbo_Fassadenabdeckplatte_250x250.DWG
DWG TZ_DB_SitaTurbo_Fassadenabdeckplatte_Uebergangsstueck_220x180.DWG
Article selection
SitaTurbo cladding cover plate, made of rust-proof stainless steel, material number 1.4301, to cover the parapet or wall opening for the SitaTurbo parapet outlet with a material thickness of 1.5 mm. For fastening on the external cladding, supply and install to professional standards.
SitaTurbo for main drainage in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal
5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body
SitaTurbo consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose flange
8.5 Dome grate
9 SitaTurbo connection sleeve
10 SitaPipe Edelstahl cleaning pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal
5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body
SitaTurbo consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose flange
8.5 Dome grate
9 SitaTurbo connection sleeve
10 SitaPipe Edelstahl cleaning pipe
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaTurbo for emergency drainage with downpipe in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal
5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body
SitaTurbo for emergency drainage consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose retaining flange
8.5 Dome grate
9 SitaTurbo cover plate
10 SitaTurbo connection sleeve
11 SitaPipe Edelstahl bend 45°
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal
5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body
SitaTurbo for emergency drainage consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose retaining flange
8.5 Dome grate
9 SitaTurbo cover plate
10 SitaTurbo connection sleeve
11 SitaPipe Edelstahl bend 45°
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Waterproofing membrane
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet opening with joint tape

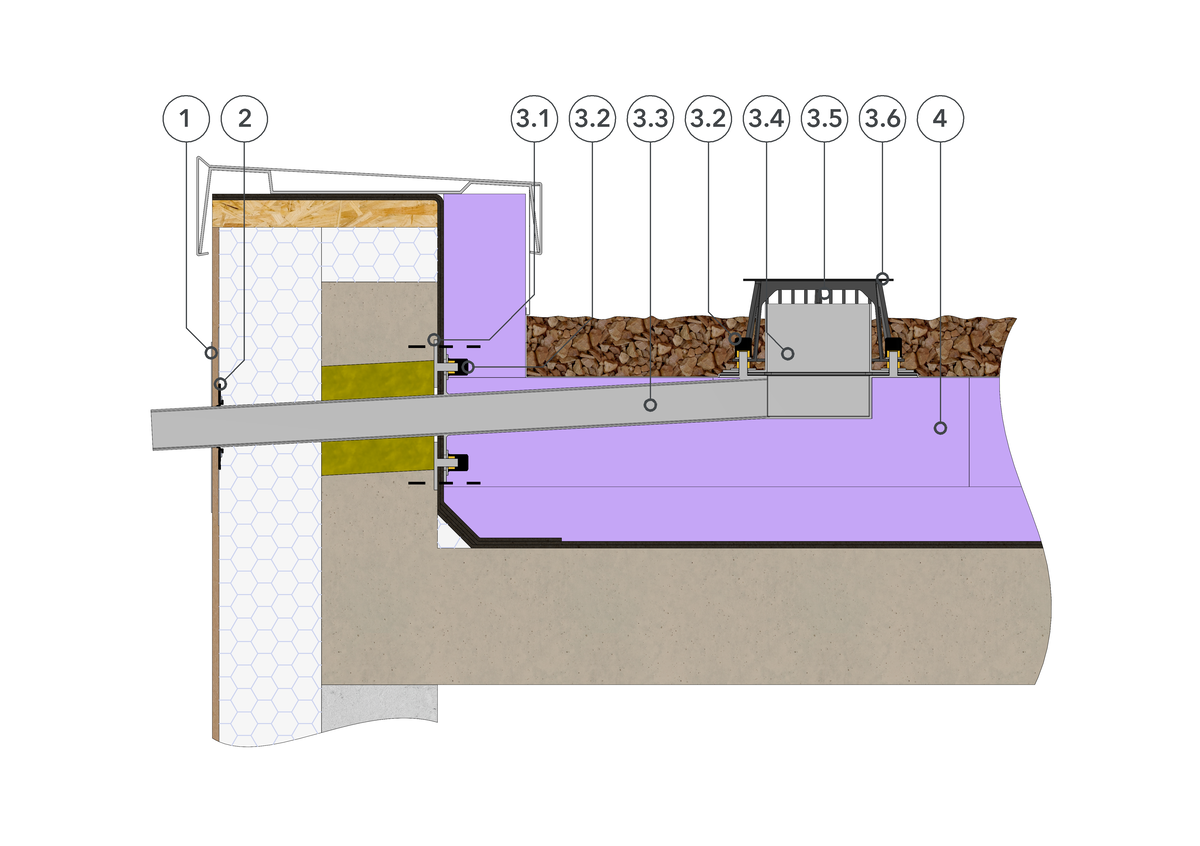

SitaTurbo inverted roof for emergency drainage in an inverted roof
1 SitaTurbo cladding cover plate
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Dome grate
3 SitaTurbo cover plate
4 SitaTurbo insulating body XPS for inverted roof
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Dome grate
3 SitaTurbo cover plate
4 SitaTurbo insulating body XPS for inverted roof
Inverted roof structure to the general rules of engineering with:
- Gravel
- Roofing fabric
- Thermal insulation
- Sealing
- Substructure
- Parapet lead-through with joint tape
