SitaTurbo
Adapter
Attributes
- Can be installed without tools
- Simple attachment
- Backwater safe

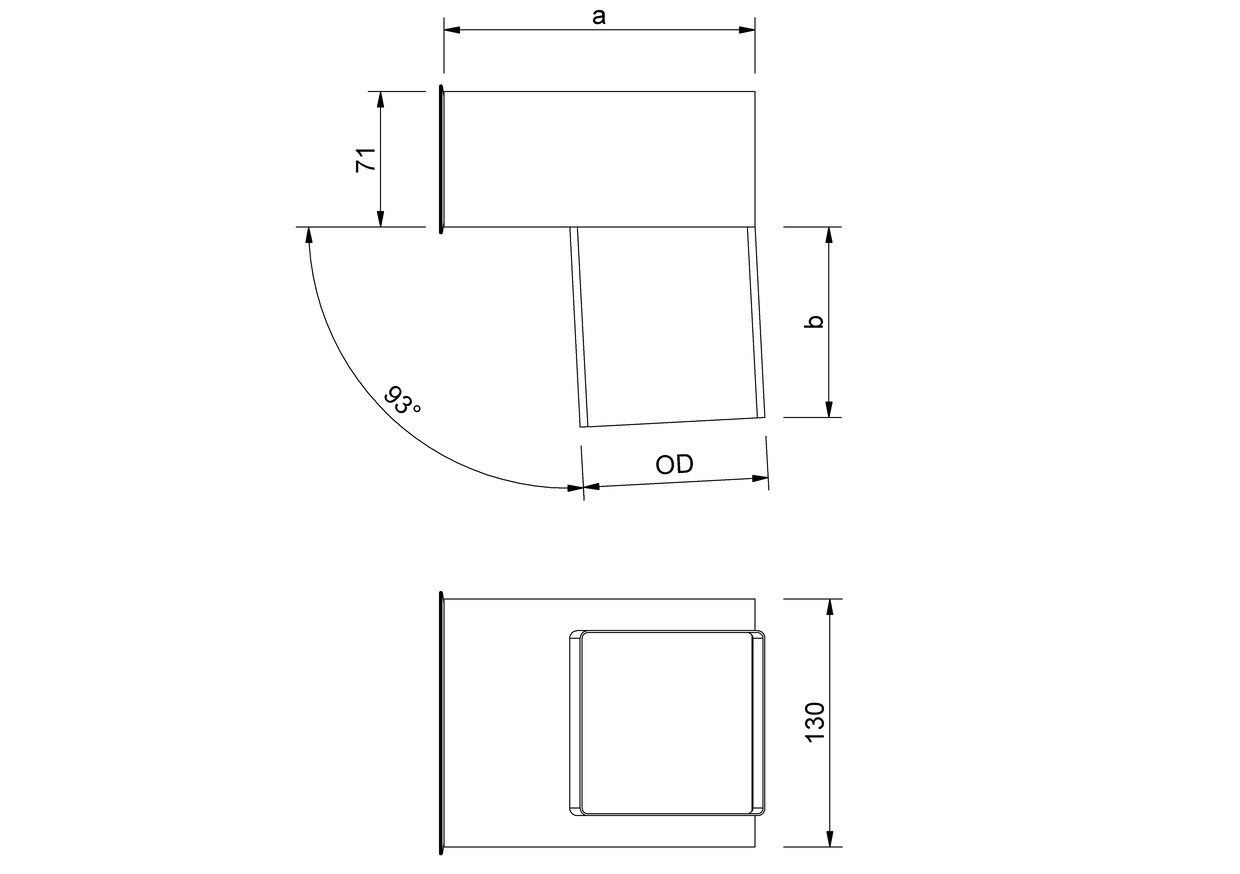

Technical drawing
| External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|
| 97 | 163 | 100 |
| 77 | 142 | 100 |
| 117 | 183 | 100 |
| External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|
| 97 | 163 | 100 |
| 77 | 142 | 100 |
| 117 | 183 | 100 |

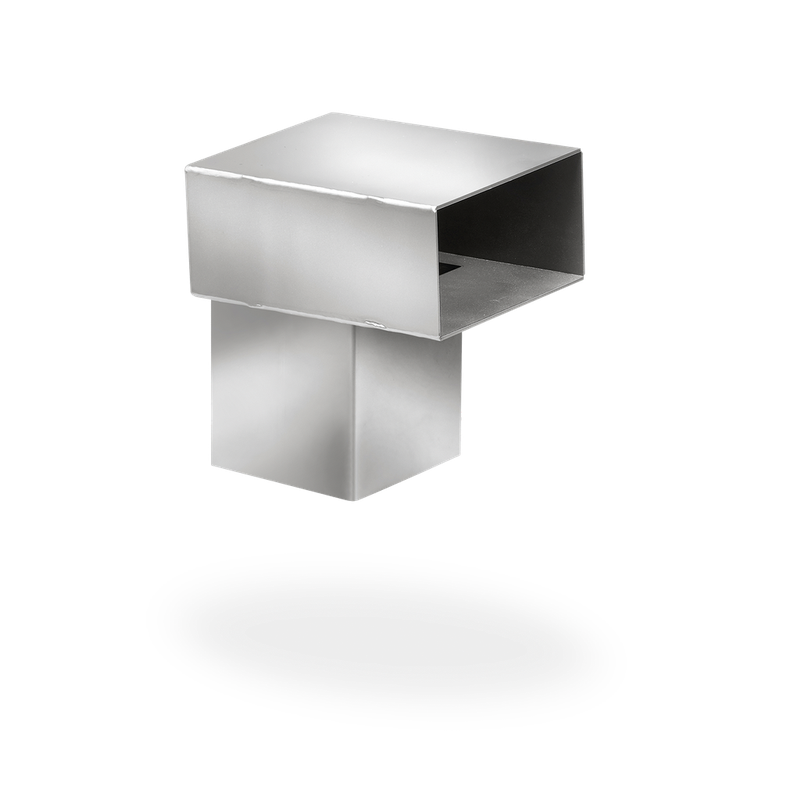

SitaTurbo transition piece to rectangular pipe, made of stainless steel, material number: 1.4301, for transition from the SitaTurbo parapet outlet to a rectangular zinc pipe according to DIN EN 612, with external dimensions 77 mm x 77 mm, 97 mm x 97 mm and 117 mm x 117 mm, with lubricant and sealing ring, supply and install to professional standards.
| SitaTurbo | Article no. | |||
|---|---|---|---|---|
Adapter to rectangular zinc pipe | ||||
| to rectangular pipe 77x77 mm | SitaTurbo, SitaTurbo inverted roof | 189111 | Show product | |
| to rectangular pipe 97x97 mm | SitaTurbo, SitaTurbo inverted roof | 189112 | Show product | |
| to rectangular pipe 117x117 mm | SitaTurbo, SitaTurbo inverted roof | 189113 | Show product |
