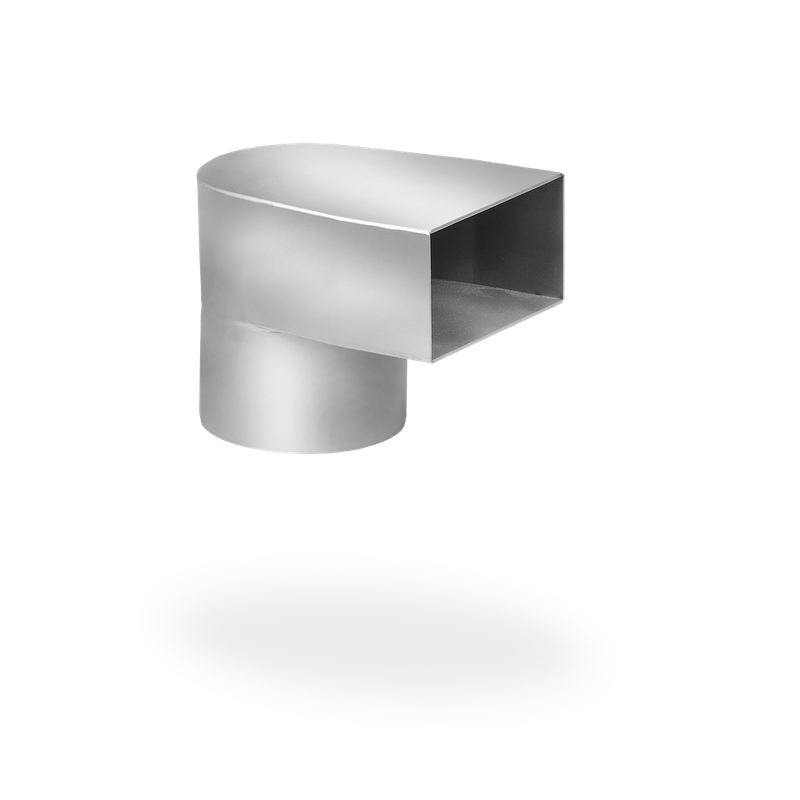

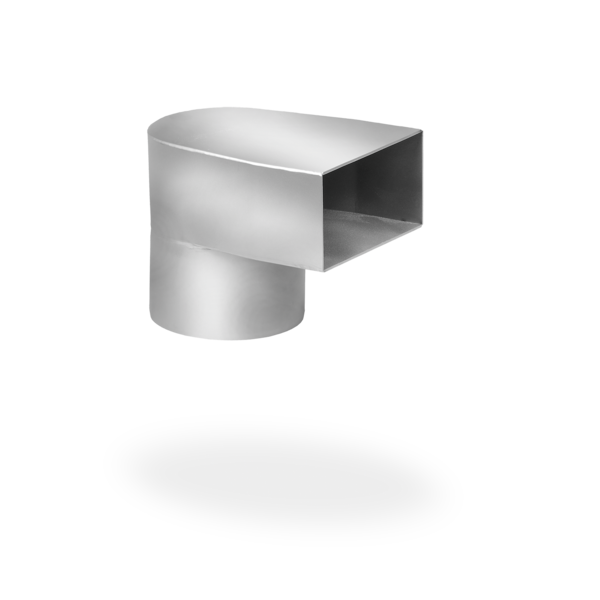

SitaTurbo
Adapter
Attributes
- Can be installed without tools
- Simple attachment
- Backwater safe

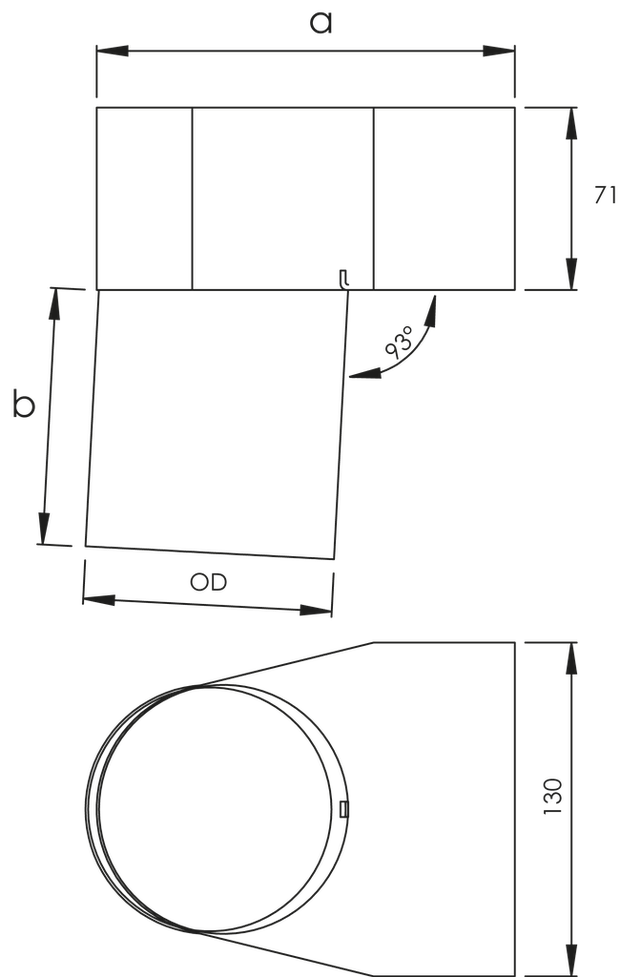

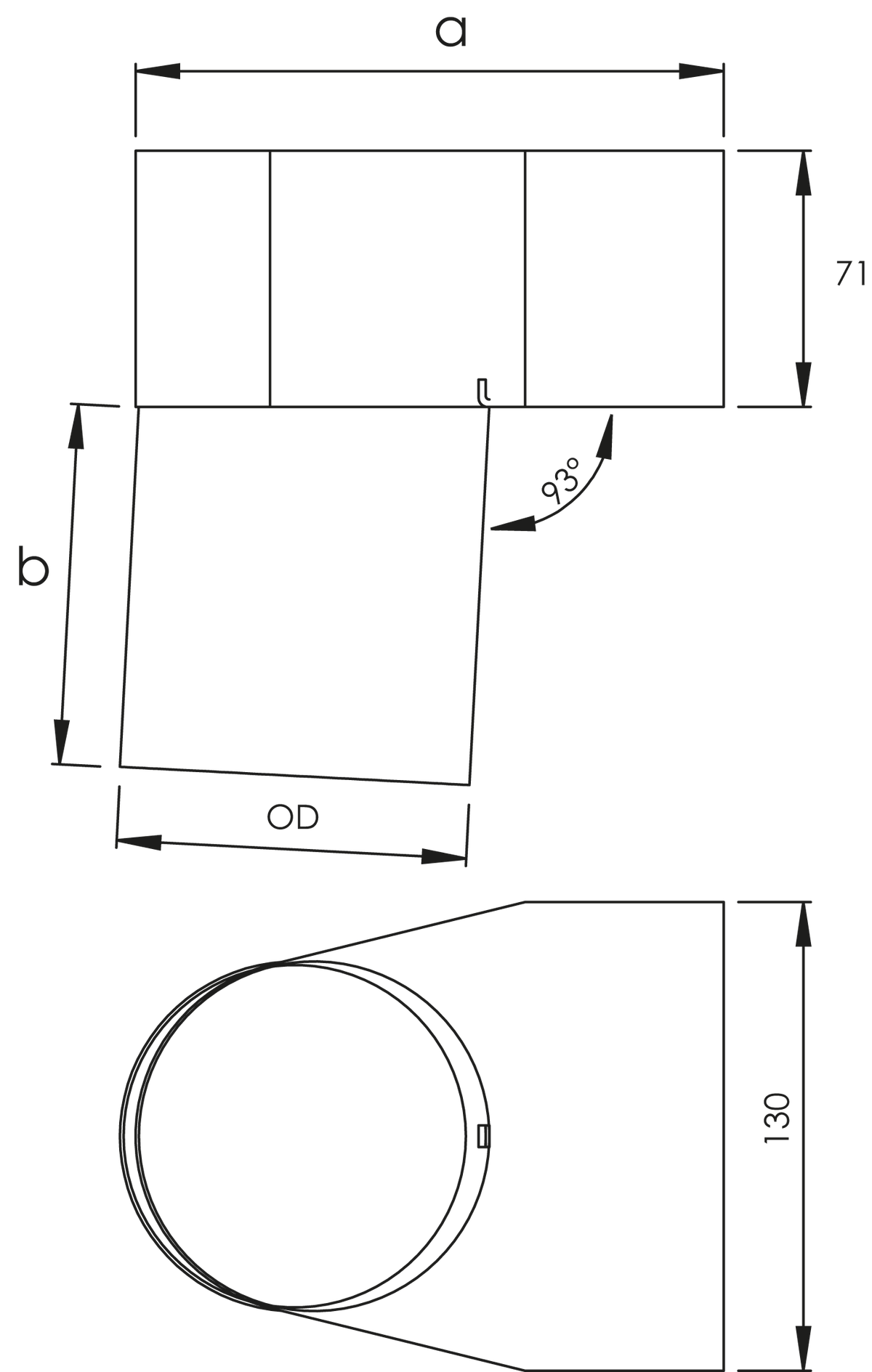

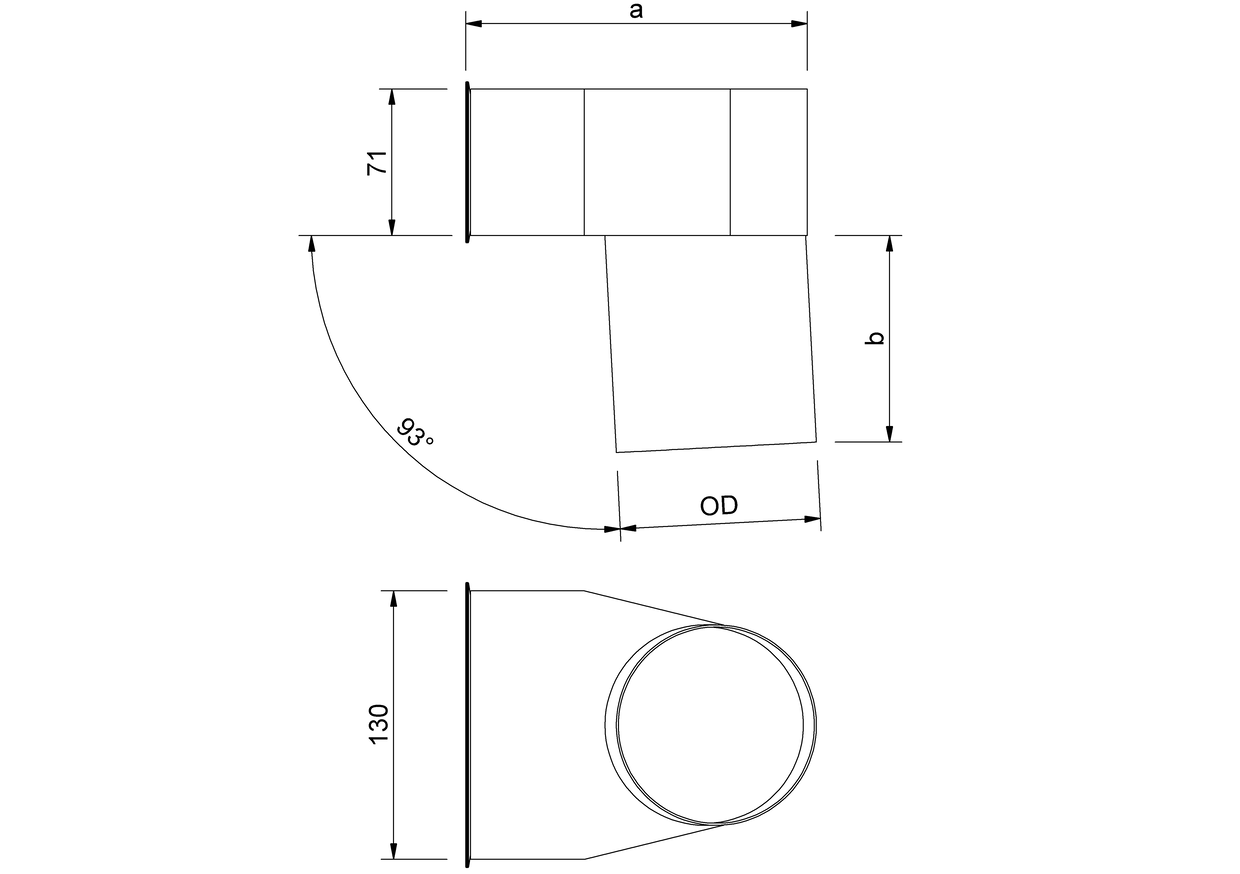

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|---|
| 125 | 117 | 183 | 100 |
| 80 | 77 | 143 | 100 |
| 100 | 97 | 163 | 100 |
| Size DN | External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|---|
| 125 | 117 | 183 | 100 |
| 80 | 77 | 143 | 100 |
| 100 | 97 | 163 | 100 |
SitaTurbo transition piece to round zinc pipe, made of stainless steel, material number: 1.4301, for transition from the SitaTurbo parapet outlet to a round zinc pipe according to DIN EN 612, in sizes DN 80, DN 100 and DN 125, with lubricant and sealing ring, supply and install to professional standards.
| SitaTurbo | Article no. | |||
|---|---|---|---|---|
Adapter to round zinc pipe according to DIN EN 612 | ||||
| to round pipe according to DIN EN 612 / DN 80 | SitaTurbo, SitaTurbo inverted roof | 189108 | Show product | |
| to round pipe according to DIN EN 612 / DN 100 | SitaTurbo, SitaTurbo inverted roof | 189109 | Show product | |
| to round pipe according to DIN EN 612 / DN 125 | SitaTurbo, SitaTurbo inverted roof | 189110 | Show product |
