Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

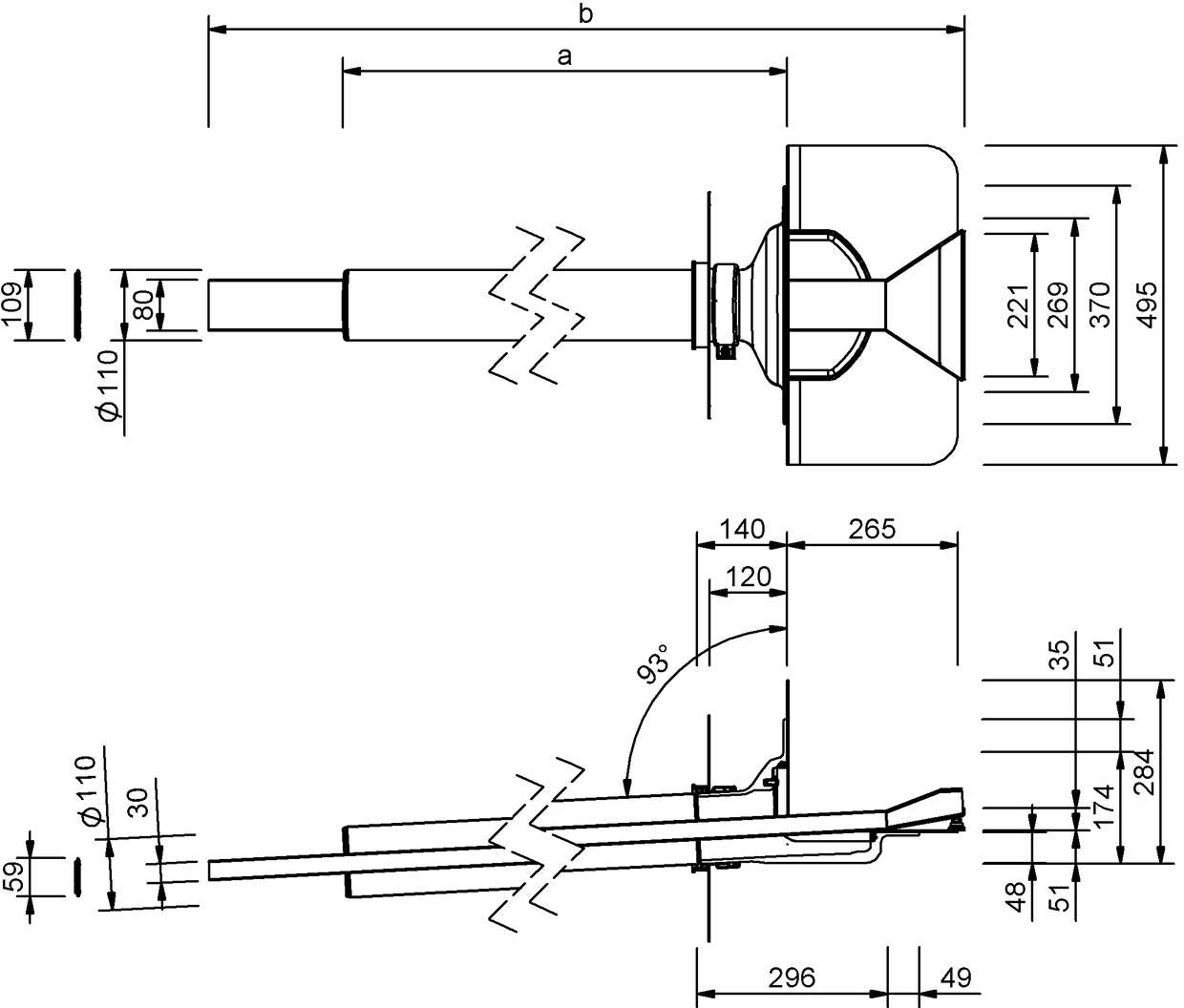

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 100 | 110 | 170 | 642 | 1121 |
| 100 | 110 | 170 | 1142 | 1621 |

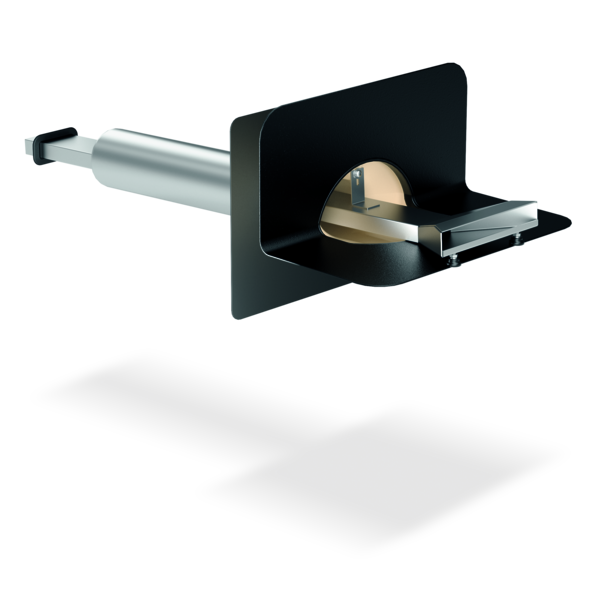

SitaVasant Double for direct installation in the parapet, made of polyurethane and rust-proof stainless steel, material number 1.4301, main drainage and emergency drainage in one, with connection sleeve of choice, size DN 100, discharge rate 2.9 l/s at up to 35 mm retaining height in main drainage and 2.3 l/s at 35 mm retaining height in emergency drainage with SitaVasant transition piece, very low inlet pot of 48 mm, as a kit including outlet, connection pipe, safety clamp, channel, transition piece and flex vapour barrier plate, for conventional drainage, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Support length | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 1000 mm | 0.5 | 0.7 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 2.9 | 3.1 | 3.3 | 3.5 | 3.7 | 4 | 4.1 | 4.3 | 4.5 | 4.8 | 5 | 5.2 | 5.5 |
| 500 mm | 0.5 | 0.7 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 2.9 | 3.1 | 3.3 | 3.5 | 3.7 | 4 | 4.1 | 4.3 | 4.5 | 4.8 | 5 | 5.2 | 5.5 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Support length | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 1000 mm | 0.5 | 0.7 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 2.9 | 3.1 | 3.3 | 3.5 | 3.7 | 4 | 4.1 | 4.3 | 4.5 | 4.8 | 5 | 5.2 | 5.5 |
| 500 mm | 0.5 | 0.7 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 2.9 | 3.1 | 3.3 | 3.5 | 3.7 | 4 | 4.1 | 4.3 | 4.5 | 4.8 | 5 | 5.2 | 5.5 |
SitaVasant Double with dome grate in a non-ventilated roof structure
2 SitaPipe Stainless steel pipe clamp
3 SitaPipe Stainless steel retention clamp
4 SitaMore sealing sleeve
5 SitaVasant Double transition piece
SitaVasant Double consisting of:
6.1 Pipe
6.2 Emergency drainage channel with seal for water collection box
6.3 Vapour barrier panel
6.4 Retention clamp
6.5 outlet
6.6 Hinged foot
7 SitaVasant Double dome grate
- Waterproofing membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaVasant Double with dome grate in timber frame construction
2 SitaPipe Stainless steel retention clamp
3 SitaPipe Stainless steel pipe
4 SitaVasant Double transition piece
5 SitaMore sealing sleeve
SitaVasant Double consisting of:
6.1 Pipe
6.2 Retention clamp
6.3 Emergency drainage channel with seal for water collection box
6.4 Outlet
6.5 Hinged foot
7 SitaVasant Double dome grate
- Waterproofing
- Ceiling beam
- Thermal insulation
- Vapour barrier
SitaVasant Double and SitaDrain profile frames in a non-ventilated roof structure with panel cladding
2 SitaPipe Stainless steel pipe clamp
3 SitaPipe Stainless steel retention clamp
4 SitaMore sealing sleeve
5 SitaVasant Double transition piece
SitaVasant Double consisting of:
6.1 Pipe
6.2 Vapour barrier panel
6.3 Retention clamp
6.4 Outlet
6.5 Emergency drainage channel with seal for water collection box
6.6 Hinged foot
SitaDrain profile frame consisting of:
7.1 Mesh cover
7.2 Profile frame
8 SitaVasant horizontal insulating block
- Slab covering on support pads
- Protective mat
- Waterproofing
- Insulation
- Vapour barrier
- Substructure
