SitaVent pipe fairlead
pipe fairlead
- Products

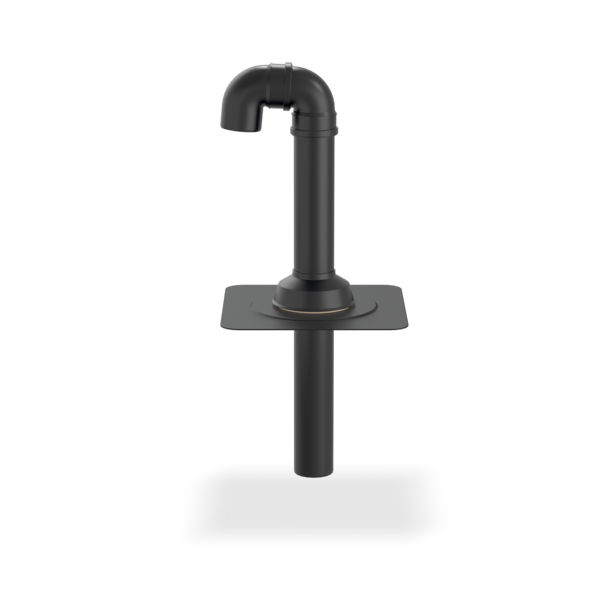

SitaVent pipe system with pipe fairlead
pipe fairlead
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Backflow safe up to a water column of 2 m

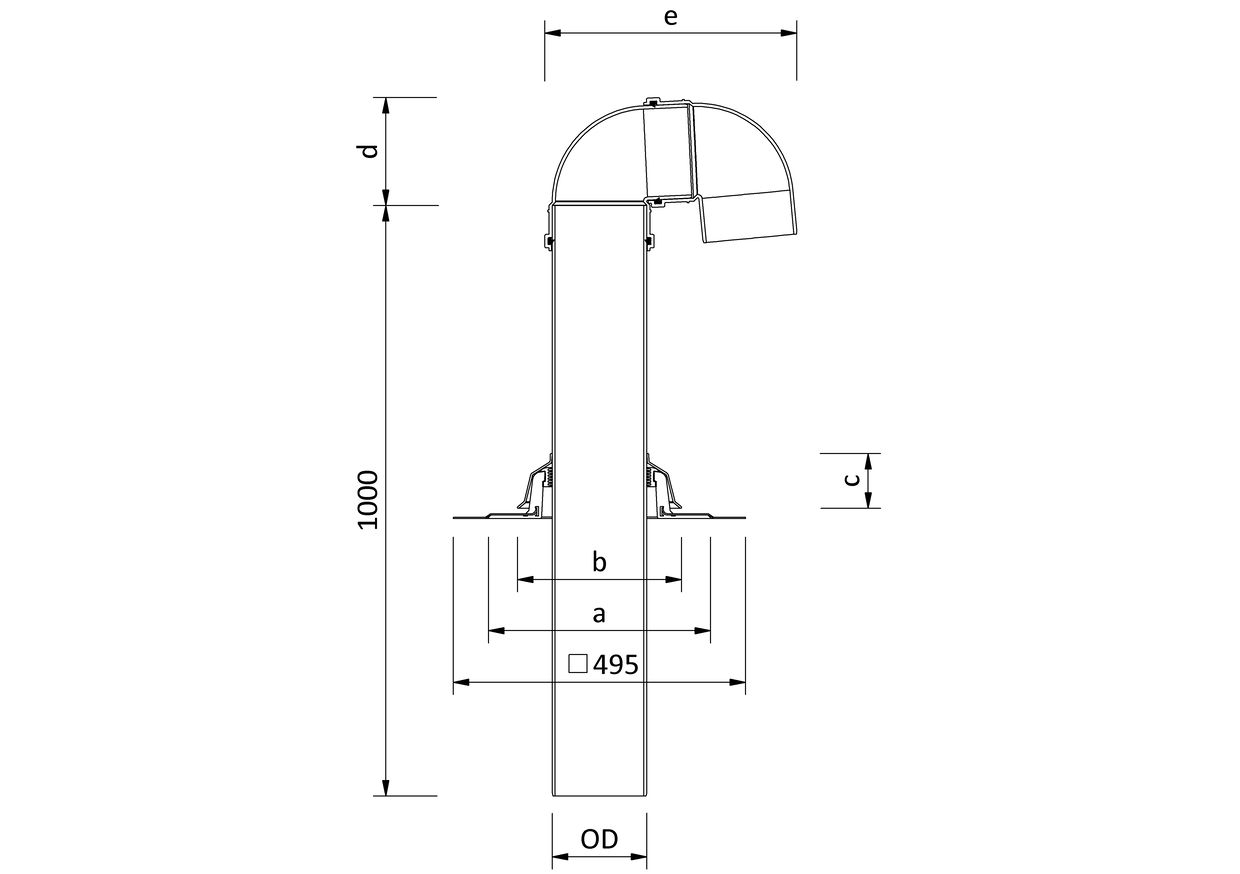

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|---|---|
| 100 | 110 | 170 | 340 | 228 | 90 | 138 | 314 |
| 150 | 160 | 220 | 376 | 278 | 93 | 183 | 427 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaVent pipe fairlead made of polyurethane in sizes DN 100 or DN 150. With foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane. Complete, including seven-lip sealing ring, lubricant, with removable 87.3° polypropylene bend and polyamide rain deflector, supply and install to professional standards.
SitaVent pipe fairlead in a non-ventilated roof structure
SitaVent pipe lead-through consisting of:
1.1 Base plate
1.2 Rain deflector
1.3 Sealing ring

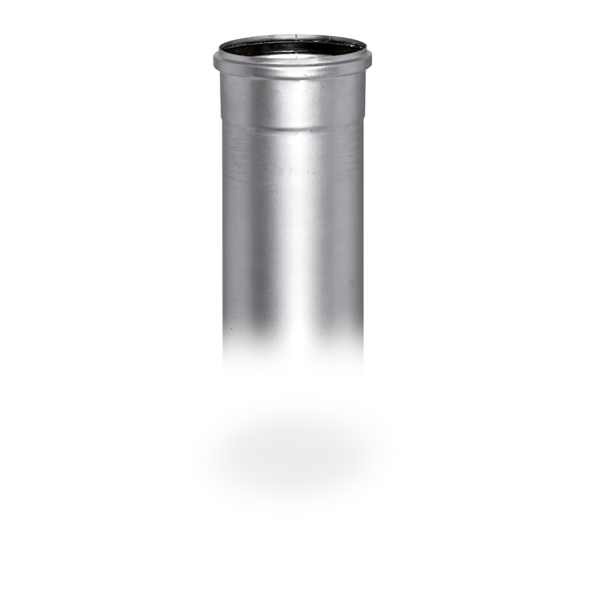

1.4 Connection pipe
1.5 Pipe bend

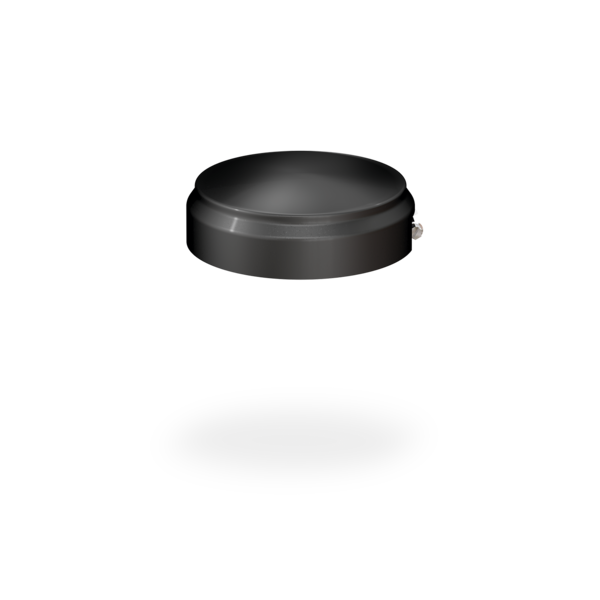

2 SitaVent vapour barrier cap

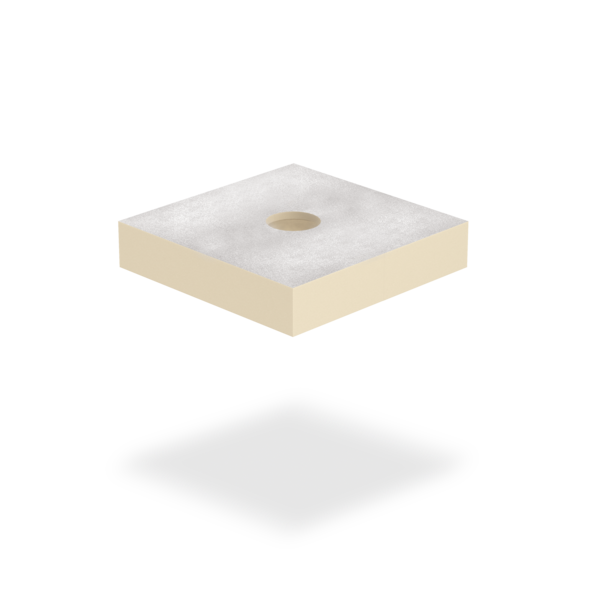

3 SitaMore reinforcement plate
SitaVent base plate consisting of:
4.1 Base plate
4.2 Sealing ring
1.1 Base plate
1.2 Rain deflector
1.3 Sealing ring
1.4 Connection pipe
1.5 Pipe bend
2 SitaVent vapour barrier cap
3 SitaMore reinforcement plate
SitaVent base plate consisting of:
4.1 Base plate
4.2 Sealing ring
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaVent pipe lead-through in inverted roofs with green roofs
SitaVent pipe lead-through consisting of:
1.1 Base plate with connection sleeve of choice
1.2 Rain deflector
1.3 Sealing ring
1.4 Connection pipe
1.5 Pipe bend
2 SitaVent vapour barrier cap
SitaVent base plate consisting of:
3.1 Base plate with connection sleeve of choice
3.2 Sealing ring
1.1 Base plate with connection sleeve of choice
1.2 Rain deflector
1.3 Sealing ring
1.4 Connection pipe
1.5 Pipe bend
2 SitaVent vapour barrier cap
SitaVent base plate consisting of:
3.1 Base plate with connection sleeve of choice
3.2 Sealing ring
Non-ventilated roof structure to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Drainage
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
