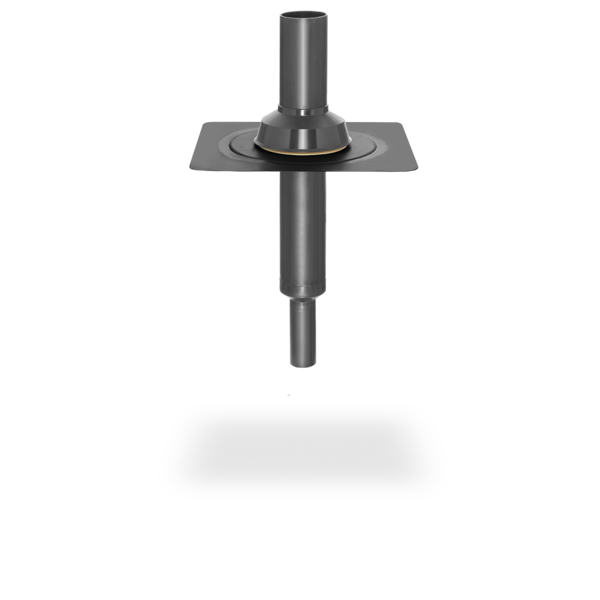

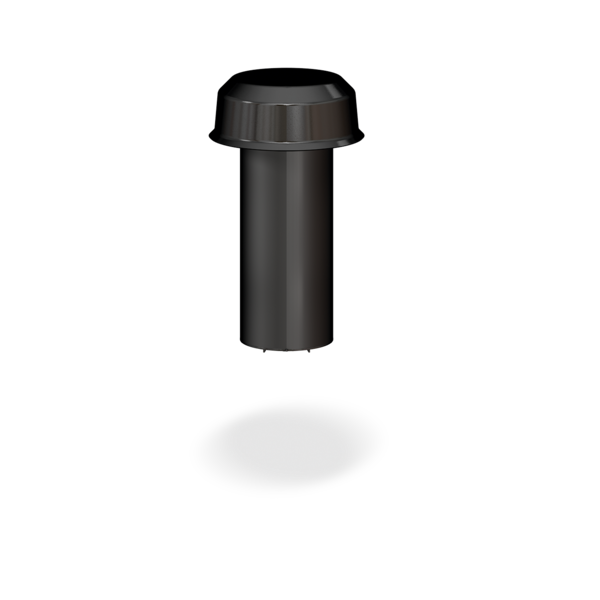

SitaVent system vent

Ventilation

Attributes

Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable
Backflow safe up to a water column of 2 m

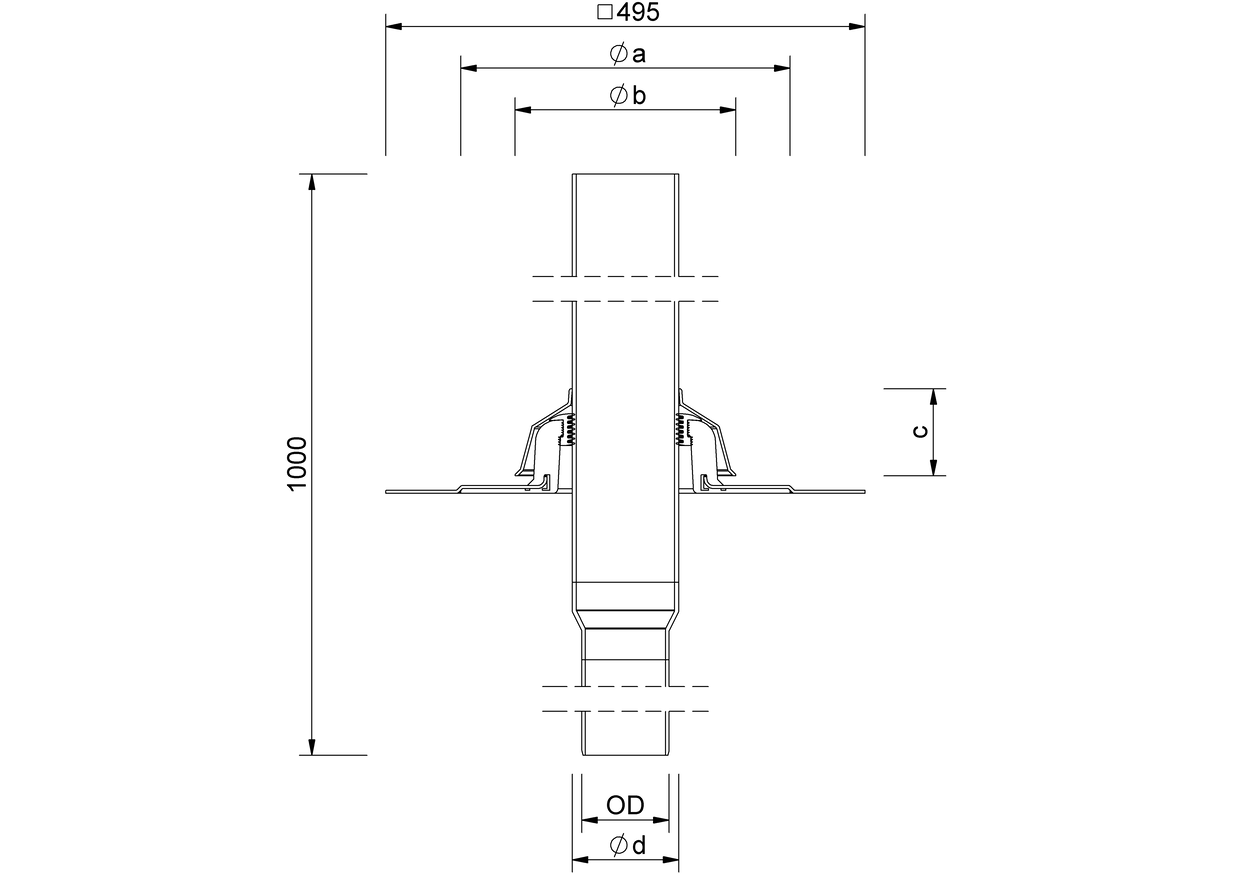

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)	a (mm)	b (mm)	c (mm)	d (mm)
125	125	220	376	278	93	160
90	90	170	340	227	90	110
150	160	220	376	278	93	160
100	110	170	340	227	90	110
70	75	170	340	227	90	110

Performance text

SitaVent system vent, made of polyurethane, in sizes DN 70, DN 90, DN 100, DN 125 and DN 150. With foamed-in connection sleeve of choice (495 x 495 mm) to suit the roofing membrane. Complete, including seven-lip sealing ring, lubricant, long PE connection pipe, polyamide rain deflector and rain cover, supply and install to professional standards.

Installation Examples

SitaVent system vent with SitaVent protective grating in a non-ventilated roof structure

1 SitaMore reinforcement plate

SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring

3 SitaVent protective grating

SitaVent system vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate

5 SitaVent base plate insulating body

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

SitaVent system vent with SitaVent rain cover in a non-ventilated roof structure

1 SitaMore reinforcement plate

SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring

3 SitaVent rain cover

SitaVent system vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate

5 SitaVent base plate insulating body

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

SitaVent system vent with SitaVent condensation deflector in a non-ventilated roof structure

1 SitaMore reinforcement plate

SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring

SitaVent condensation deflector consisting of:
3.1 Adapter for condensation deflector pipe
3.2 Rain cover
3.3 Condensation deflector pipe

SitaVent system vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate

5 SitaVent base plate insulating body

Non-ventilated roof structure to the general rules of engineering with:

Waterproofing membrane
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaVent system vent			Article no.

	DN 70	bitumen-sleeve	174200	Show product
	DN 70	Resitrix CL-sleeve	174201	Show product
	DN 70	Thermofin F15-sleeve	174202	Show product
	DN 70	Elevate QuickSeam SA Flashing-sleeve	174203	Show product
	DN 70	Mapeplan T D-sleeve	174204	Show product
	DN 70	Alkortec-sleeve	174205	Show product
	DN 70	Hertalan Easy Weld-sleeve	174207	Show product
	DN 70	Sikaplan 15G-sleeve	174209	Show product
	DN 70	PVC soft-sleeve	174210	Show product
	DN 70	Polyfin 4020 v-sleeve	174216	Show product
	DN 70	Wolfin IB-sleeve	174220	Show product
	DN 70	Evalastic V-sleeve	174222	Show product
	DN 70	Sarnafil-TG 66-15 beige-sleeve	174224	Show product
	DN 70	Thermoplan TL pearl white-sleeve	174229	Show product
	DN 70	Extrupol F-sleeve	174232	Show product
	DN 70	Rhepanol HG 18-sleeve	174234	Show product
	DN 70	VAEPLAN V-sleeve	174235	Show product
	DN 70	Evalon V light grey-sleeve	174237	Show product
	DN 70	Köster TPO 2.0 F-sleeve	174248	Show product
	DN 70	Evalon V slate grey-sleeve	174250	Show product
	DN 70	Thermofol U15 anthracite-sleeve	174252	Show product
	DN 70	Flagon EP basalt grey-sleeve	174273	Show product
	DN 70	Sarnafil-TG 66-15 grey-sleeve	174276	Show product
	DN 70	Hertalan with joining rim-sleeve	174282	Show product
	DN 70	NovoProof with joining surface-sleeve	174284	Show product
	DN 90	bitumen-sleeve	174300	Show product
	DN 90	Resitrix CL-sleeve	174301	Show product
	DN 90	Thermofin F15-sleeve	174302	Show product
	DN 90	Elevate QuickSeam SA Flashing-sleeve	174303	Show product
	DN 90	Alkortec-sleeve	174305	Show product
	DN 90	Hertalan Easy Weld-sleeve	174307	Show product
	DN 90	Sikaplan 15G-sleeve	174309	Show product
	DN 90	PVC soft-sleeve	174310	Show product
	DN 90	Polyfin 4020 v-sleeve	174316	Show product
	DN 90	Wolfin IB-sleeve	174320	Show product
	DN 90	Evalastic V-sleeve	174322	Show product
	DN 90	Sarnafil-TG 66-15 beige-sleeve	174324	Show product
	DN 90	Thermoplan TL pearl white-sleeve	174329	Show product
	DN 90	Rhepanol HG 18-sleeve	174334	Show product
	DN 90	VAEPLAN V-sleeve	174335	Show product
	DN 90	Evalon V light grey-sleeve	174337	Show product
	DN 90	Evalon V slate grey-sleeve	174350	Show product
	DN 90	Thermofol U15 anthracite-sleeve	174352	Show product
	DN 90	Flagon SR-sleeve	174366	Show product
	DN 90	Sarnafil-TG 66-15 grey-sleeve	174376	Show product
	DN 90	NovoProof with joining surface-sleeve	174384	Show product
	DN 100	bitumen-sleeve	174500	Show product
	DN 100	Resitrix CL-sleeve	174501	Show product
	DN 100	Thermofin F15-sleeve	174502	Show product
	DN 100	Elevate QuickSeam SA Flashing-sleeve	174503	Show product
	DN 100	Mapeplan T D-sleeve	174504	Show product
	DN 100	Alkortec-sleeve	174505	Show product
	DN 100	Mapeplan D 15-sleeve	174506	Show product
	DN 100	Hertalan Easy Weld-sleeve	174507	Show product
	DN 100	Sikaplan 15G-sleeve	174509	Show product
	DN 100	PVC soft-sleeve	174510	Show product
	DN 100	Polyfin 4020 v-sleeve	174516	Show product
	DN 100	Wolfin IB-sleeve	174520	Show product
	DN 100	Evalastic V-sleeve	174522	Show product
	DN 100	Sarnafil-TG 66-15 beige-sleeve	174524	Show product
	DN 100	Evalon V white-sleeve	174525	Show product
	DN 100	Thermoplan TL pearl white-sleeve	174529	Show product
	DN 100	Extrupol F-sleeve	174532	Show product
DN 100	Rhepanol HG 18-sleeve	174534	Show product
DN 100	VAEPLAN V-sleeve	174535	Show product
DN 100	Evalon V light grey-sleeve	174537	Show product
DN 100	Elevate UltraPly grey-sleeve	174542	Show product
DN 100	Köster TPO 2.0 F-sleeve	174548	Show product
DN 100	Alkorplan F35276-sleeve	174549	Show product
DN 100	Evalon V slate grey-sleeve	174550	Show product
DN 100	Thermofol U15 anthracite-sleeve	174552	Show product
DN 100	Elevate UltraPly white-sleeve	174554	Show product
DN 100	Flagon SR-sleeve	174566	Show product
DN 100	Flagon EP basalt grey-sleeve	174573	Show product
DN 100	Thermobond R-sleeve	174575	Show product
DN 100	Sarnafil-TG 66-15 grey-sleeve	174576	Show product
DN 100	Hertalan with joining rim-sleeve	174582	Show product
DN 100	NovoProof with joining surface-sleeve	174584	Show product
DN 125	bitumen-sleeve	174600	Show product
DN 125	Resitrix CL-sleeve	174601	Show product
DN 125	Thermofin F15-sleeve	174602	Show product
DN 125	Elevate QuickSeam SA Flashing-sleeve	174603	Show product
DN 125	Mapeplan T D-sleeve	174604	Show product
DN 125	Alkortec-sleeve	174605	Show product
DN 125	Mapeplan D 15-sleeve	174606	Show product
DN 125	Hertalan Easy Weld-sleeve	174607	Show product
DN 125	Sikaplan 15G-sleeve	174609	Show product
DN 125	PVC soft-sleeve	174610	Show product
DN 125	Polyfin 4020 v-sleeve	174616	Show product
DN 125	Wolfin IB-sleeve	174620	Show product
DN 125	Evalastic V-sleeve	174622	Show product
DN 125	Sarnafil-TG 66-15 beige-sleeve	174624	Show product
DN 125	Evalon V white-sleeve	174625	Show product
DN 125	Thermoplan TL pearl white-sleeve	174629	Show product
DN 125	Extrupol F-sleeve	174632	Show product
DN 125	Rhepanol HG 18-sleeve	174634	Show product
DN 125	VAEPLAN V-sleeve	174635	Show product
DN 125	Evalon V light grey-sleeve	174637	Show product
DN 125	Elevate UltraPly grey-sleeve	174642	Show product
DN 125	Köster TPO 2.0 F-sleeve	174648	Show product
DN 125	Evalon V slate grey-sleeve	174650	Show product
DN 125	Thermofol U15 anthracite-sleeve	174652	Show product
DN 125	Flagon SR-sleeve	174666	Show product
DN 125	Flagon EP basalt grey-sleeve	174673	Show product
DN 125	Thermobond R-sleeve	174675	Show product
DN 125	Sarnafil-TG 66-15 grey-sleeve	174676	Show product
DN 125	Hertalan with joining rim-sleeve	174682	Show product
DN 125	NovoProof with joining surface-sleeve	174684	Show product
DN 150	bitumen-sleeve	174900	Show product
DN 150	Resitrix CL-sleeve	174901	Show product
DN 150	Thermofin F15-sleeve	174902	Show product
DN 150	Elevate QuickSeam SA Flashing-sleeve	174903	Show product
DN 150	Mapeplan T D-sleeve	174904	Show product
DN 150	Mapeplan D 15-sleeve	174906	Show product
DN 150	Hertalan Easy Weld-sleeve	174907	Show product
DN 150	Sikaplan 15G-sleeve	174909	Show product
DN 150	PVC soft-sleeve	174910	Show product
DN 150	Polyfin 4020 v-sleeve	174916	Show product
DN 150	Wolfin IB-sleeve	174920	Show product
DN 150	Evalastic V-sleeve	174922	Show product
DN 150	Sarnafil-TG 66-15 beige-sleeve	174924	Show product
DN 150	Evalon V white-sleeve	174925	Show product
DN 150	Thermoplan TL pearl white-sleeve	174929	Show product
DN 150	Extrupol F-sleeve	174932	Show product
DN 150	Rhepanol HG 18-sleeve	174934	Show product
DN 150	VAEPLAN V-sleeve	174935	Show product
DN 150	Evalon V light grey-sleeve	174937	Show product
DN 150	Elevate UltraPly grey-sleeve	174942	Show product
DN 150	Köster TPO 2.0 F-sleeve	174948	Show product
DN 150	Evalon V slate grey-sleeve	174950	Show product
DN 150	Thermofol U15 anthracite-sleeve	174952	Show product
DN 150	Elevate UltraPly white-sleeve	174954	Show product
DN 150	Flagon SR-sleeve	174966	Show product
DN 150	Flagon EP basalt grey-sleeve	174973	Show product
DN 150	Thermobond R-sleeve	174975	Show product
DN 150	Sarnafil-TG 66-15 grey-sleeve	174976	Show product
DN 150	Hertalan with joining rim-sleeve	174982	Show product
DN 150	NovoProof with joining surface-sleeve	174984	Show product
DN 70	Tectofin RV plus-sleeve	17420105	Show product
DN 70	Thermoplan TL silver grey-sleeve	17420107	Show product
DN 70	Flagon EP sand grey-sleeve	17420111	Show product
DN 90	Thermoplan TL silver grey-sleeve	17430107	Show product
DN 90	Flagon EP sand grey-sleeve	17430111	Show product
DN 100	Sintofoil RG FR-sleeve	17450104	Show product
DN 100	Tectofin RV plus-sleeve	17450105	Show product
DN 100	Thermoplan TL granite black-sleeve	17450106	Show product
DN 100	Thermoplan TL silver grey-sleeve	17450107	Show product
DN 100	Tectofin RV plus titanium grey-sleeve	17450108	Show product
DN 100	EverGuard weiß-sleeve	17450109	Show product
DN 100	Flagon EP sand grey-sleeve	17450111	Show product
DN 125	Tectofin RV plus-sleeve	17460105	Show product
DN 125	Thermoplan TL silver grey-sleeve	17460107	Show product
DN 125	EverGuard weiß-sleeve	17460109	Show product
DN 125	Flagon EP sand grey-sleeve	17460111	Show product
DN 150	Tectofin RV plus-sleeve	17490105	Show product
DN 150	Thermoplan TL granite black-sleeve	17490106	Show product
DN 150	Thermoplan TL silver grey-sleeve	17490107	Show product
DN 150	Flagon EP sand grey-sleeve	17490111	Show product

SitaVent system vent

Ventilation

Attributes

Technical drawing

SitaVent system vent with SitaVent protective grating in a non-ventilated roof structure

SitaVent system vent with SitaVent rain cover in a non-ventilated roof structure

SitaVent system vent with SitaVent condensation deflector in a non-ventilated roof structure

Technical information

AutoCAD

Installation Examples

Technical drawings

Installation Instructions

Supplies

SitaVent

Base plate

SitaVent

Base plate insulating body

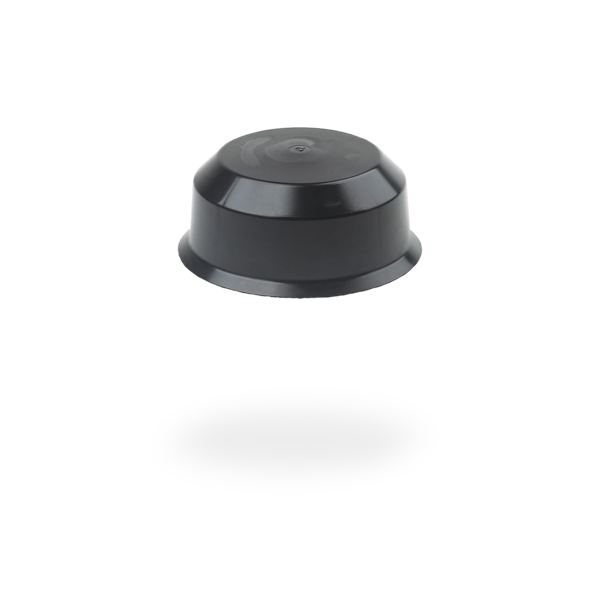

SitaVent

Rain cover

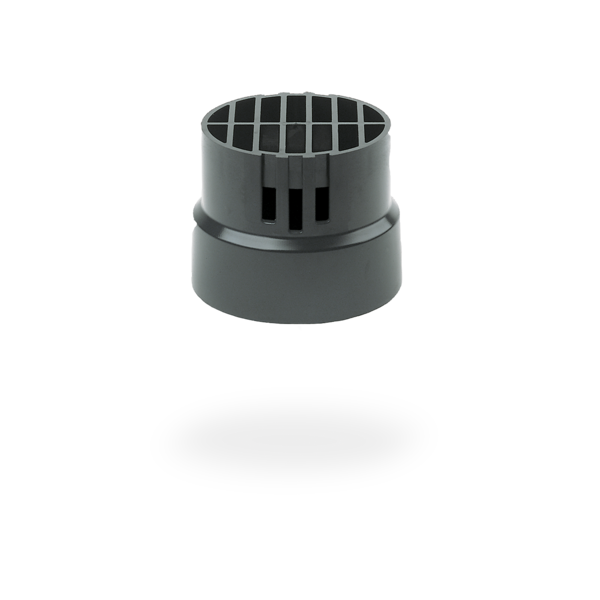

SitaVent

Protective grating

SitaVent

Pipe bend

SitaMore

Reinforcement plate

SitaVent

Condensation deflector

SitaVent

Vapour barrier cap

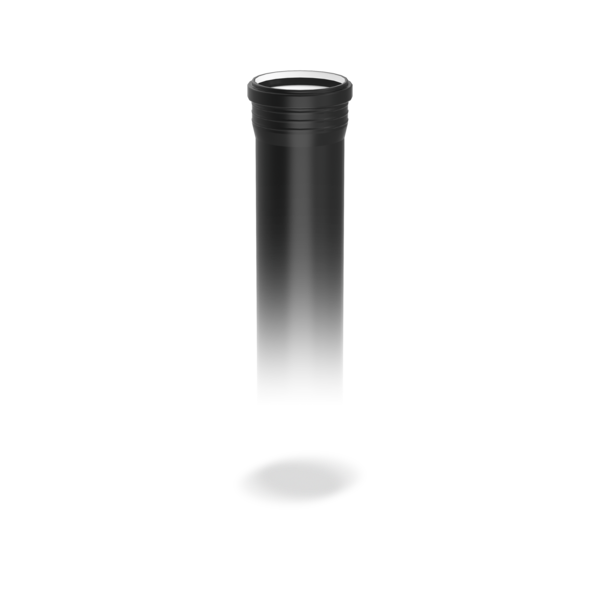

SitaPipe PP
