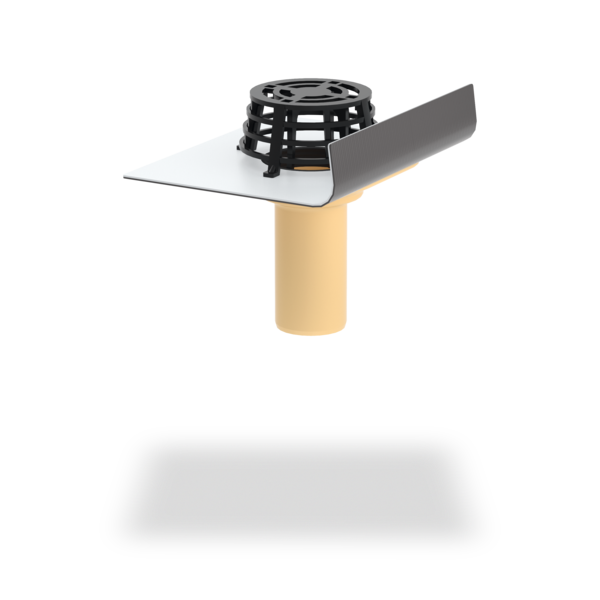

SitaCompact Near

Balcony and terrace drainage rainwater outlet

Attributes

Shortened polyurethane flange
Thermally insulated
Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

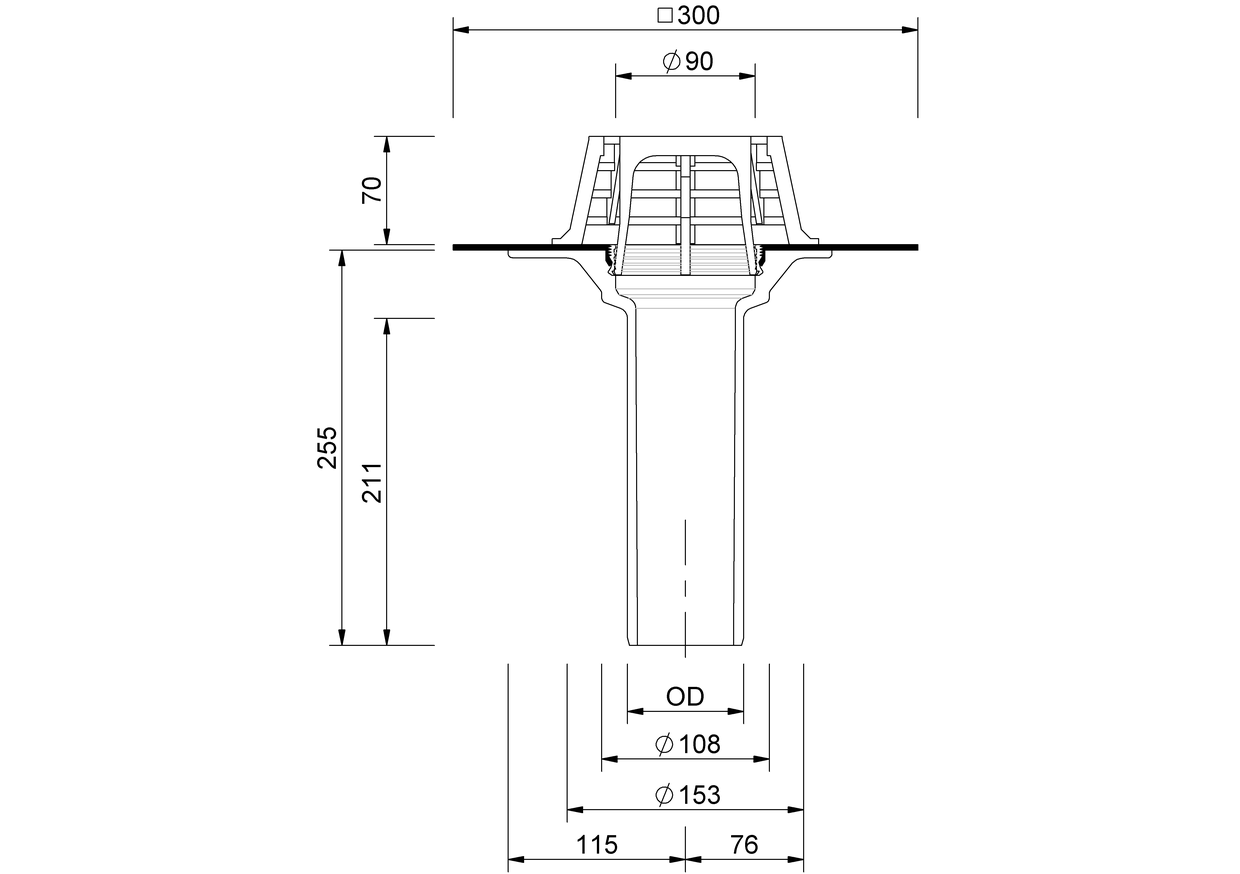

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)
70	75	153

Performance text

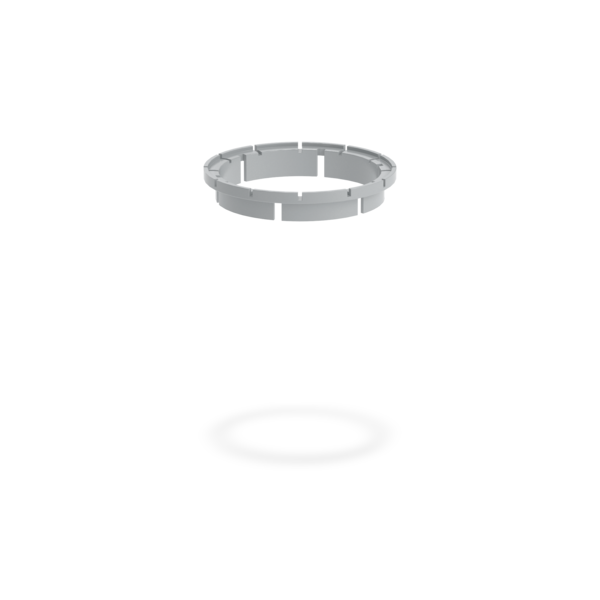

SitaCompact Near, vertical, made of polyurethane, thermally insulated, to DIN EN 1253-2, specially for linear drainage of roof surfaces on top of each other, with shortened collar, in size DN 70. For direct connection to pipes with plug-in coupler, for conventional drainage, with foamed-in plastic connection sleeve of choice (300 mm x 300 mm) to suit the roofing membrane, with fixing ring for additional securing of the connection sleeve and to hold the dome grate, supply and install to professional standards.

Streamflow

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	0.5	1.1	1.6	2.1	2.5	3.4	4.2	4.9	5.6	6.6	7.5	8.8	10	10	10	10	10	10	10	10

Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.

Downloads

Technical information

PDF Tech_Info_SitaCompact_Near_EN.pdf

Technical drawings

Installation Instructions

PDF Einbauanleitung_SitaCompact_SitaCarport_E280001.pdf

Article selection

		Article no.

DN 70	Resitrix CL-sleeve	190501	Show product
DN 70	Thermofin F15-sleeve	190502	Show product
DN 70	Elevate QuickSeam SA Flashing-sleeve	190503	Show product
DN 70	Hertalan Easy Weld-sleeve	190507	Show product
DN 70	Sikaplan 15G-sleeve	190509	Show product
DN 70	PVC soft-sleeve	190510	Show product
DN 70	Polyfin 4020 v-sleeve	190516	Show product
DN 70	Wolfin IB-sleeve	190520	Show product
DN 70	Evalastic V-sleeve	190522	Show product
DN 70	Sarnafil-TG 66-15 beige-sleeve	190524	Show product
DN 70	VAEPLAN V-sleeve	190535	Show product
DN 70	Evalon V light grey-sleeve	190537	Show product
DN 70	Evalon V slate grey-sleeve	190550	Show product
DN 70	Thermofol U15 anthracite-sleeve	190552	Show product
DN 70	Sarnafil-TG 66-15 grey-sleeve	190576	Show product
DN 70	NovoProof with joining surface-sleeve	190584	Show product
DN 70	Tectofin RV plus-sleeve	19050105	Show product
DN 70	Thermoplan TL granite black-sleeve	19050106	Show product
DN 70	Thermoplan TL silver grey-sleeve	19050107	Show product
DN 70	Flagon EP sand grey-sleeve	19050111	Show product

SitaCompact Near

Balcony and terrace drainage rainwater outlet

Attributes

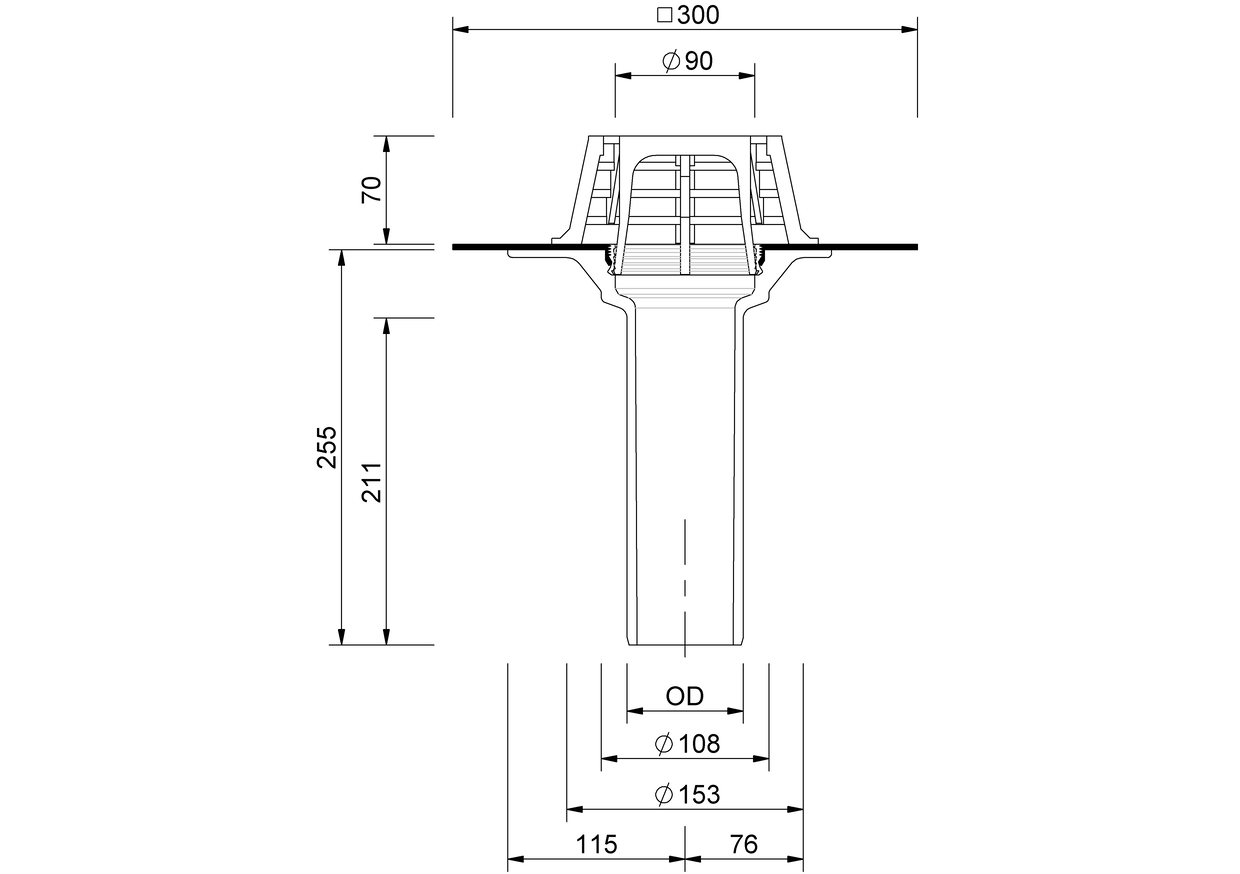

Technical drawing
