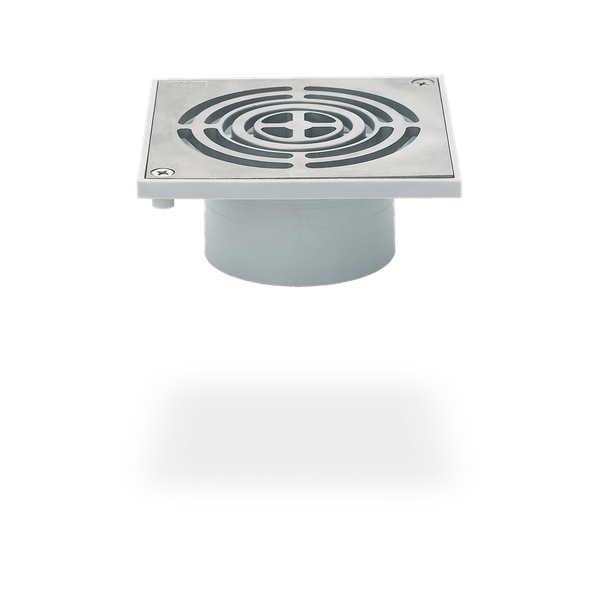

SitaMini
Balcony and terrace drainage rainwater outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

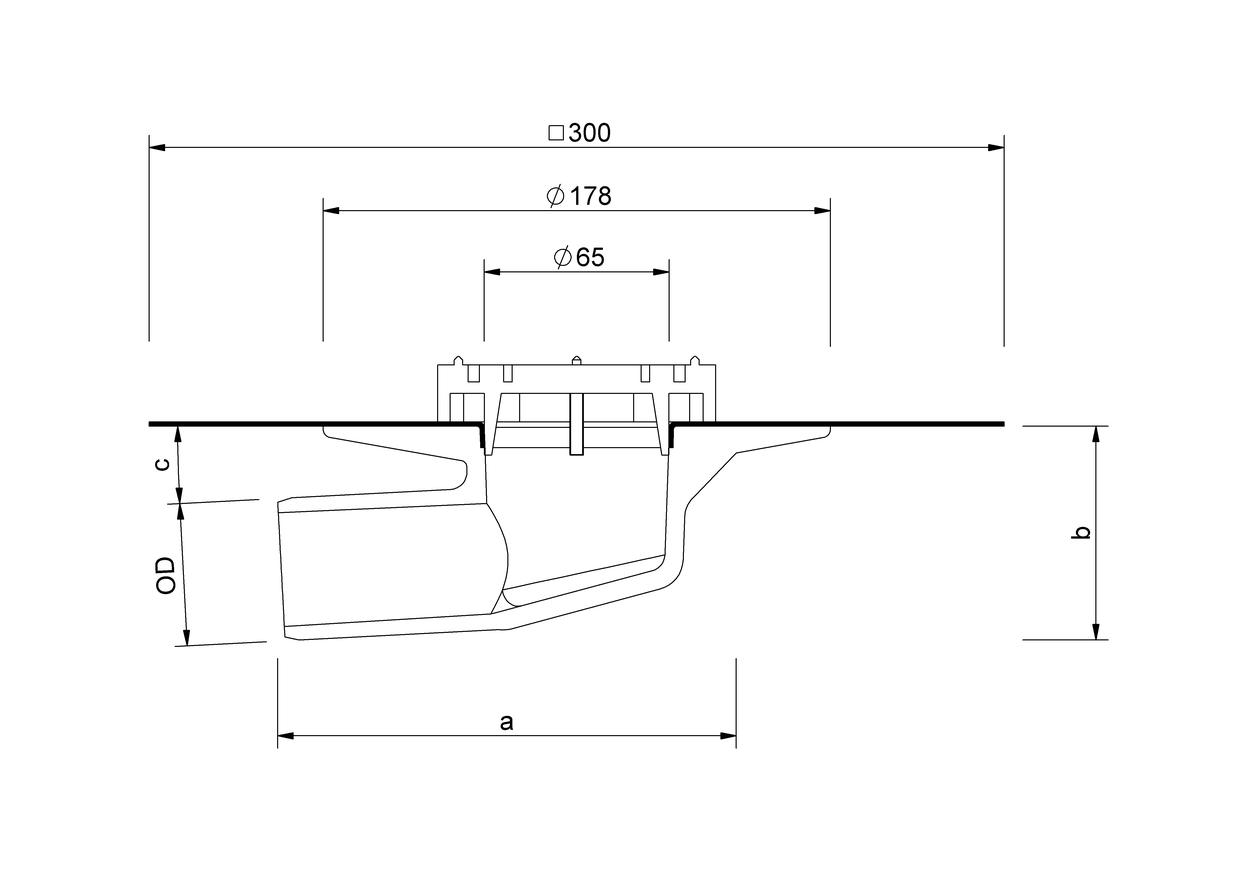

Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) | c |
|---|---|---|---|---|---|
| 50 | 50 | 161 mm x 161 mm | 161 | 75 | 3° |
| 70 | 75 | 167 mm x 167 mm | 167 | 95 | 2° |
Performance text
Installation Examples
Downloads
Article selection
SitaMini balcony outlet, angled, made of polyurethane, thermally insulated, in sizes DN 50 or DN 70, with prefabricated foamed-in connection sleeve of choice (300 mm x 300 mm) to suit the roofing membrane, complete including round filter grille, supply and install to professional standards.

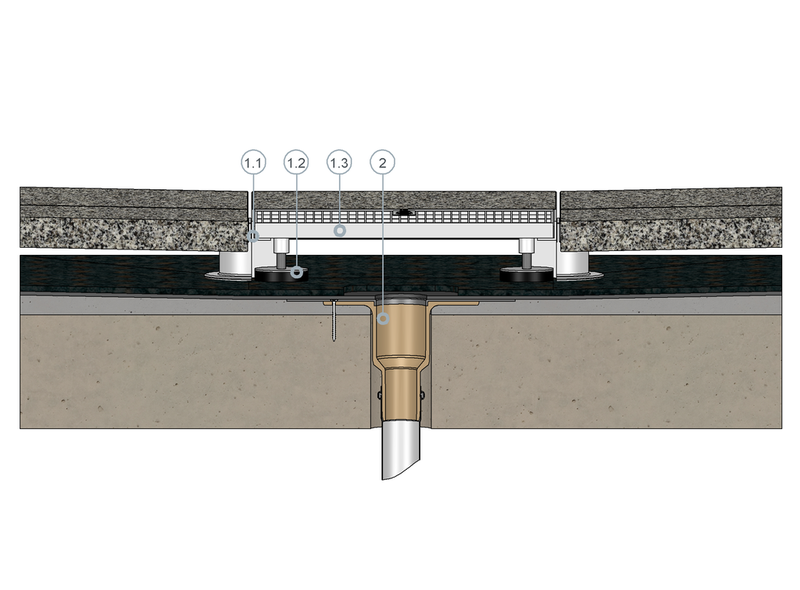

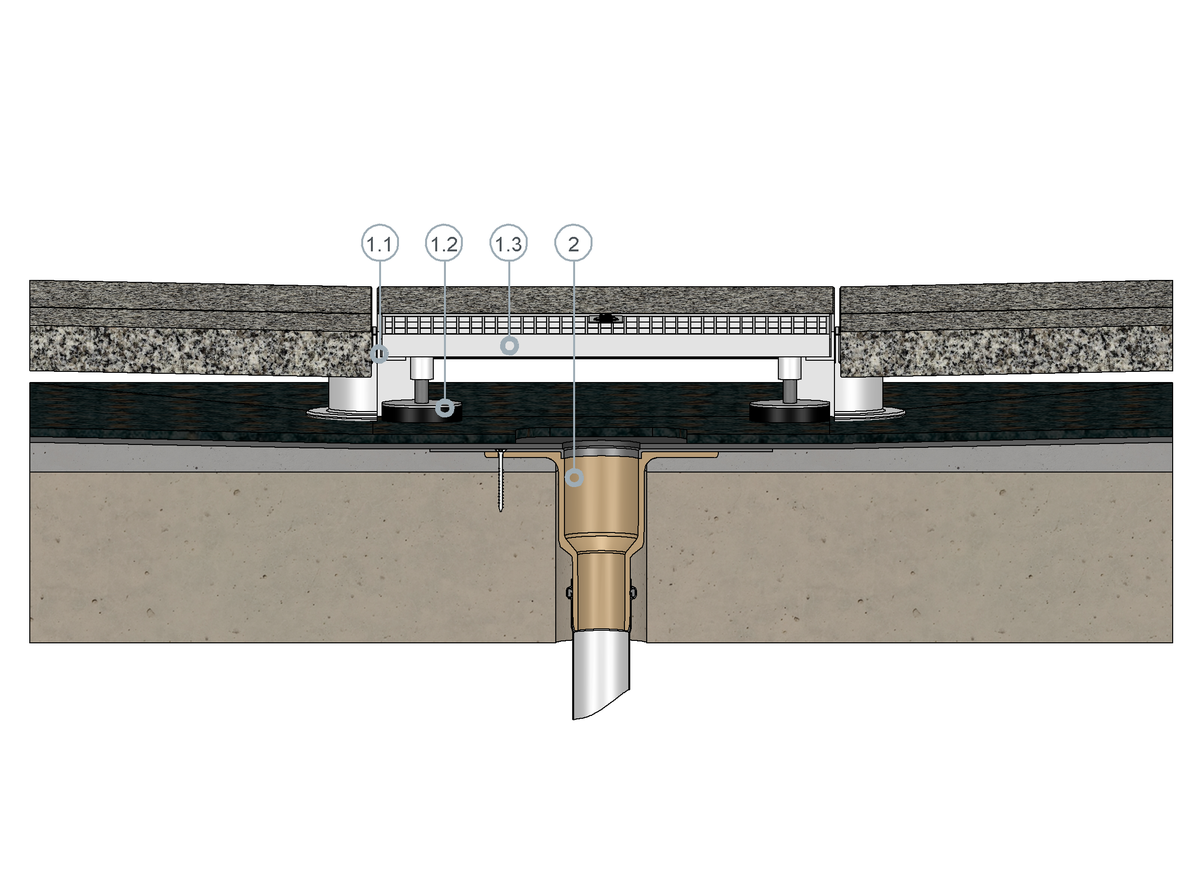

SitaMini and SitaDrain Terra in a ventilated roof structure with slab paving on support pads

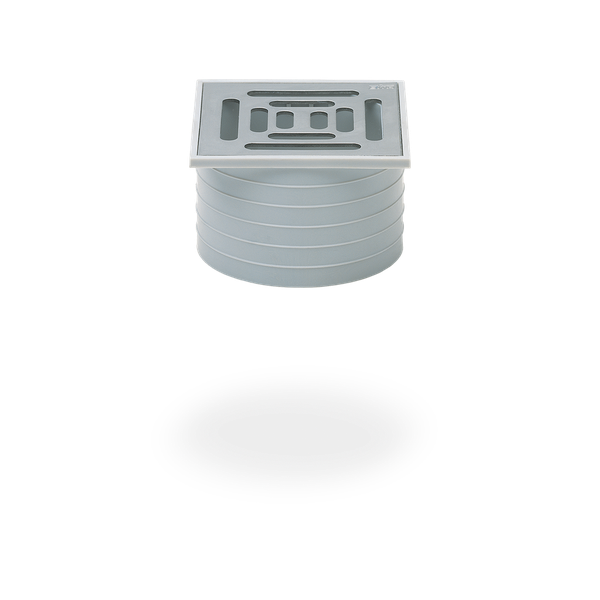

SitaDrain® Terra consisting of:
1.1 Frame
1.2 Height-adjustable rubber-metal buffers
1.3 Inspection grate
2 SitaMini vertical
1.1 Frame
1.2 Height-adjustable rubber-metal buffers
1.3 Inspection grate
2 SitaMini vertical
Ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Sloping screed
- Substructure
+
