SitaStandard
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

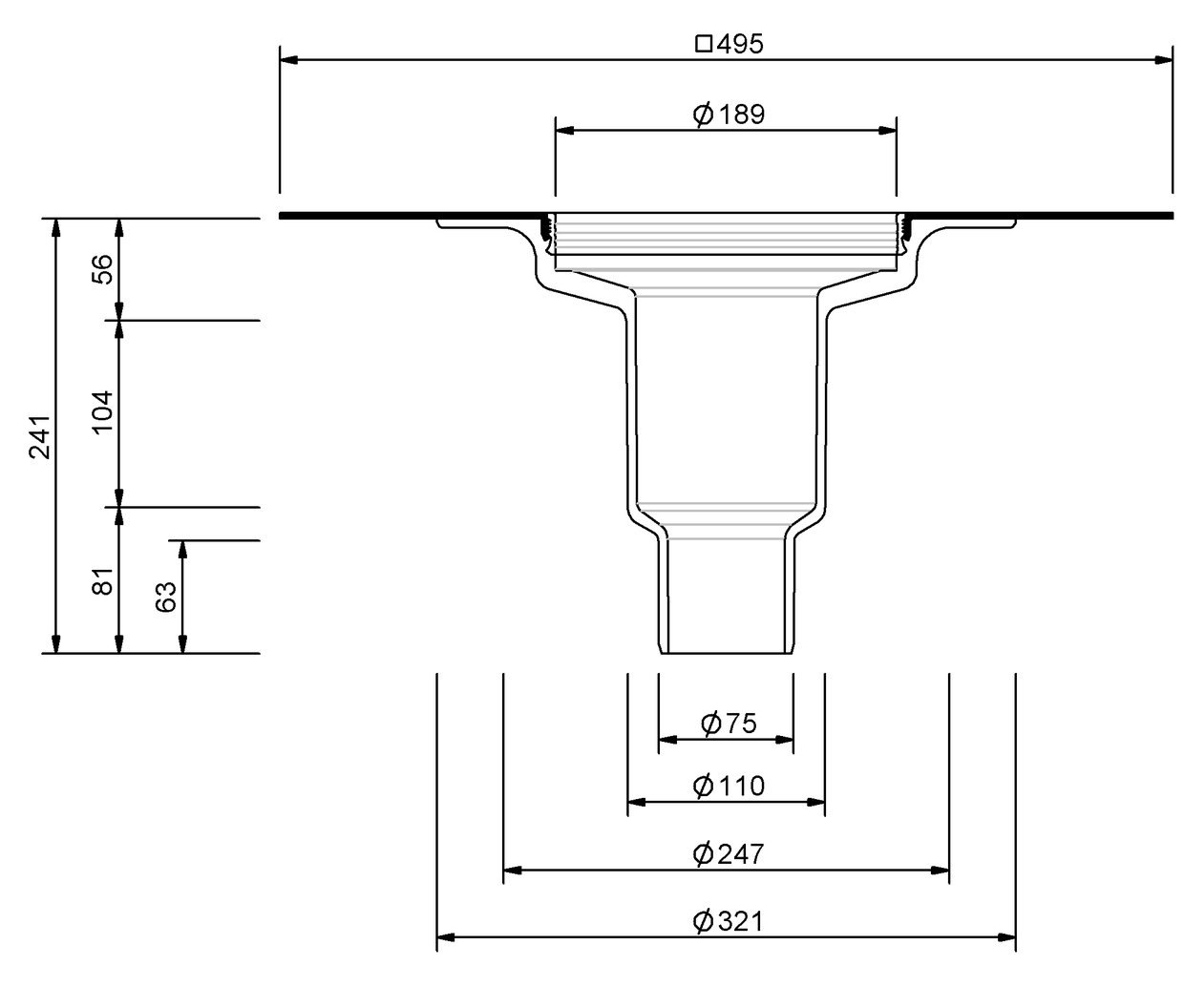

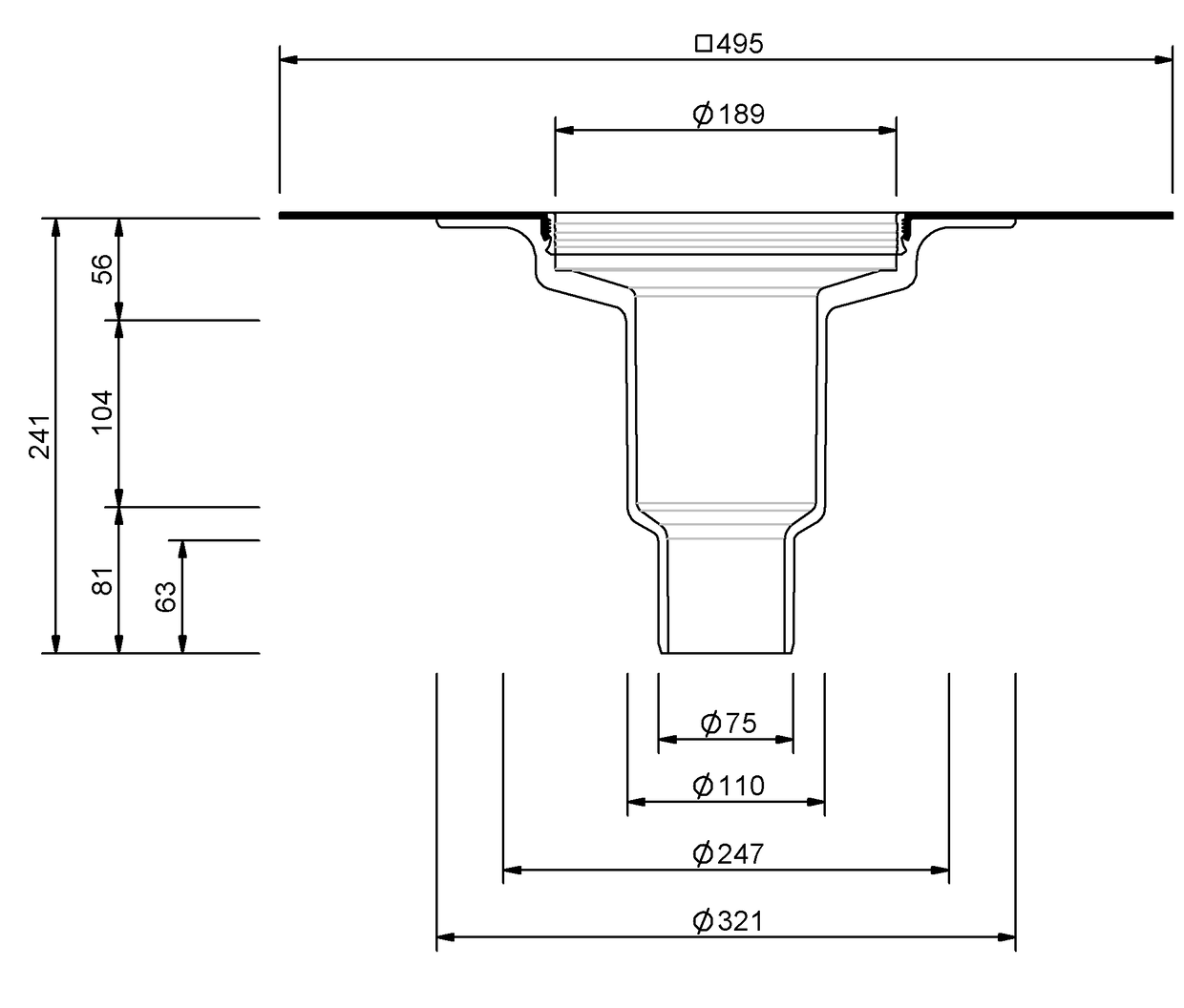

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) |
|---|---|---|
| 70 / 100 | 75 | 250 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
Downloads
Article selection

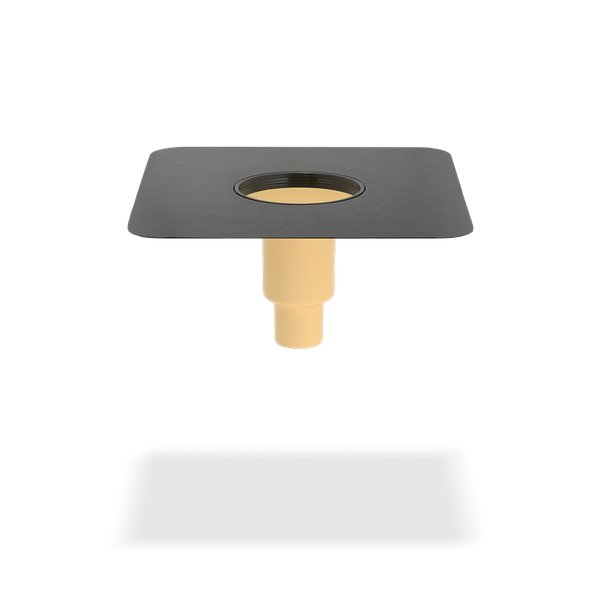

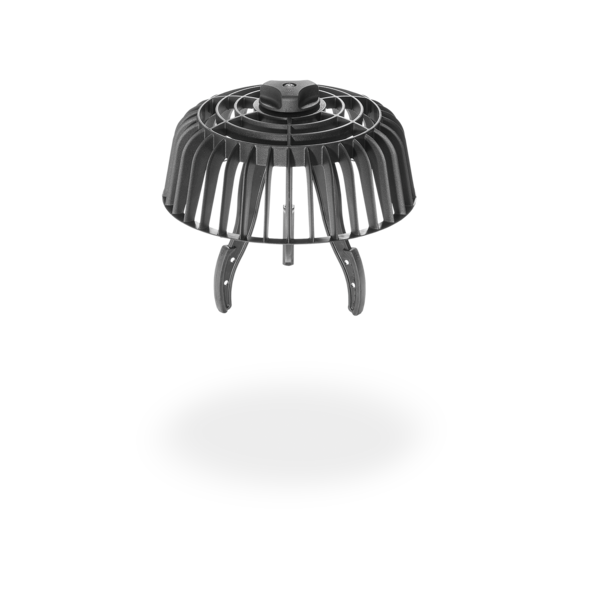

SitaStandard stepped outlet, vertical without dome grate, made of polyurethane, thermally insulated, to DIN EN 1253-2, in size DN 70 and DN 100. Discharge rate 7.0 l/s and 7.5 l/s at 35 mm retaining height. For direct connection to pipes with plug-in coupler, for conventional drainage, with large foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70/100 | 0.7 | 1.8 | 2.8 | 4 | 5.2 | 6.4 | 7.5 | 8.7 | 9.8 | 11.1 | 12.4 | 13.8 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 |
SitaStandard stepped outlet with SitaStandard extension unit in non-ventilated roof structure
1 SitaStandard stepped outlet with connection sleeve of choice
2 SitaStandard insulating body for extension unit

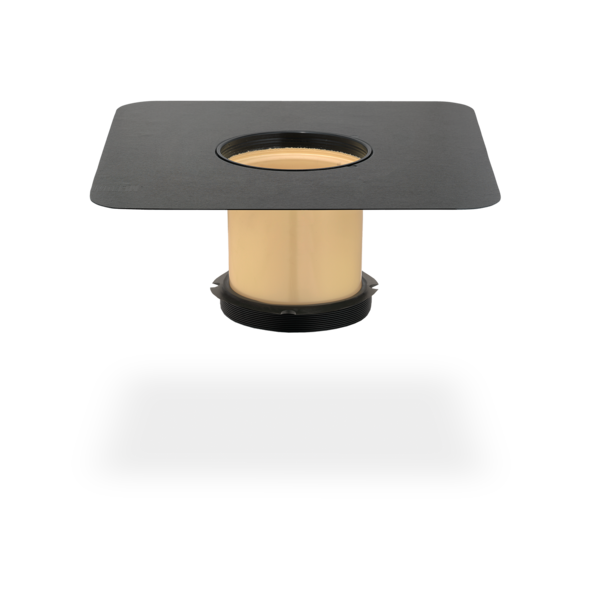

SitaStandard extension unit, consisting of:
3.1 Angled sealing ring
3.2 Base body with connection sleeve of choice

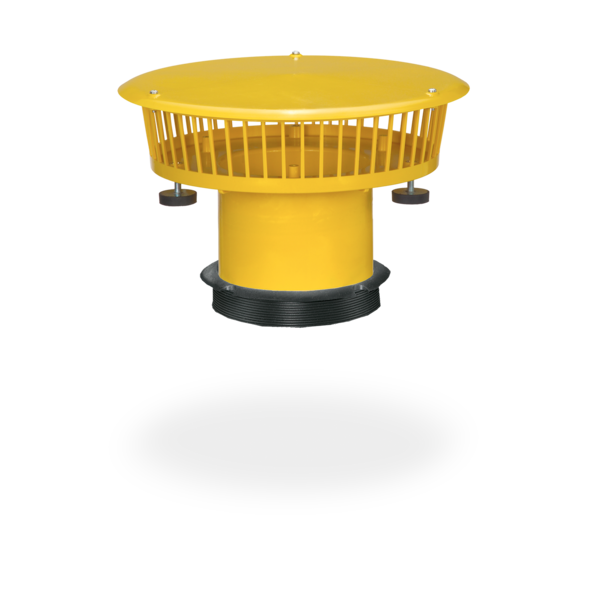

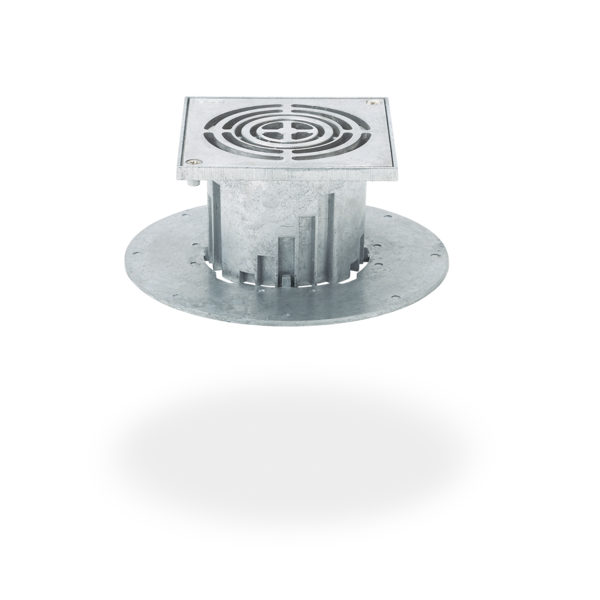

SitaGreen green roof shaft consisting of:
4.1 Mesh cover
4.2 Base body
4.3 Height-adjustable rubber-metal buffers
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl pipe

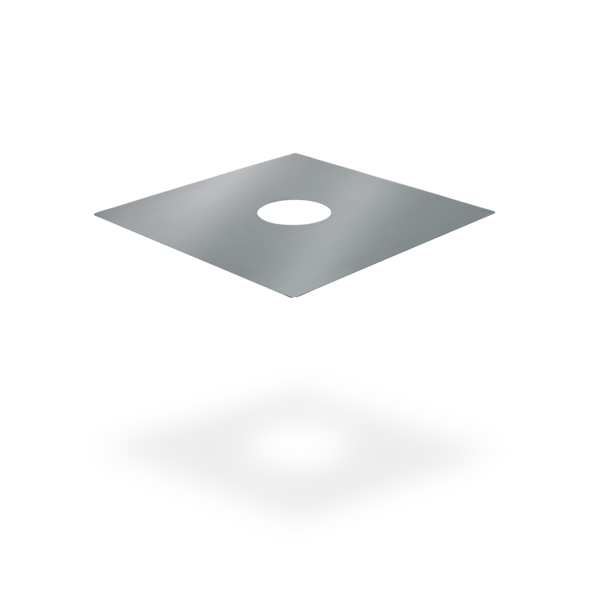

7 SitaAttika cladding cover plate
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Angled sealing ring
3.2 Base body with connection sleeve of choice
SitaGreen green roof shaft consisting of:
4.1 Mesh cover
4.2 Base body
4.3 Height-adjustable rubber-metal buffers
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl pipe
7 SitaAttika cladding cover plate
Non-ventilated roof structure to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Drainage mat
- Protective mat
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
| SitaStandard | Article no. | |||
|---|---|---|---|---|
Stepped outlet without dome grate | ||||
| DN 70 / 100 | bitumen-sleeve | OK103000 | Show product | |
| DN 70 / 100 | PVC soft-sleeve | OK103010 | Show product | |
| DN 70 / 100 | Wolfin IB-sleeve | OK103020 | Show product |
+
