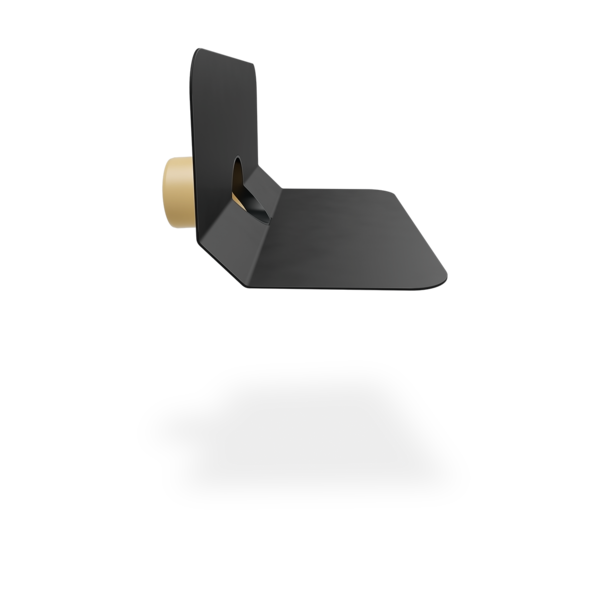

SitaEasy Go
Parapet outlet
- Products
SitaEasy Go
Parapet outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- With 45° wedge design

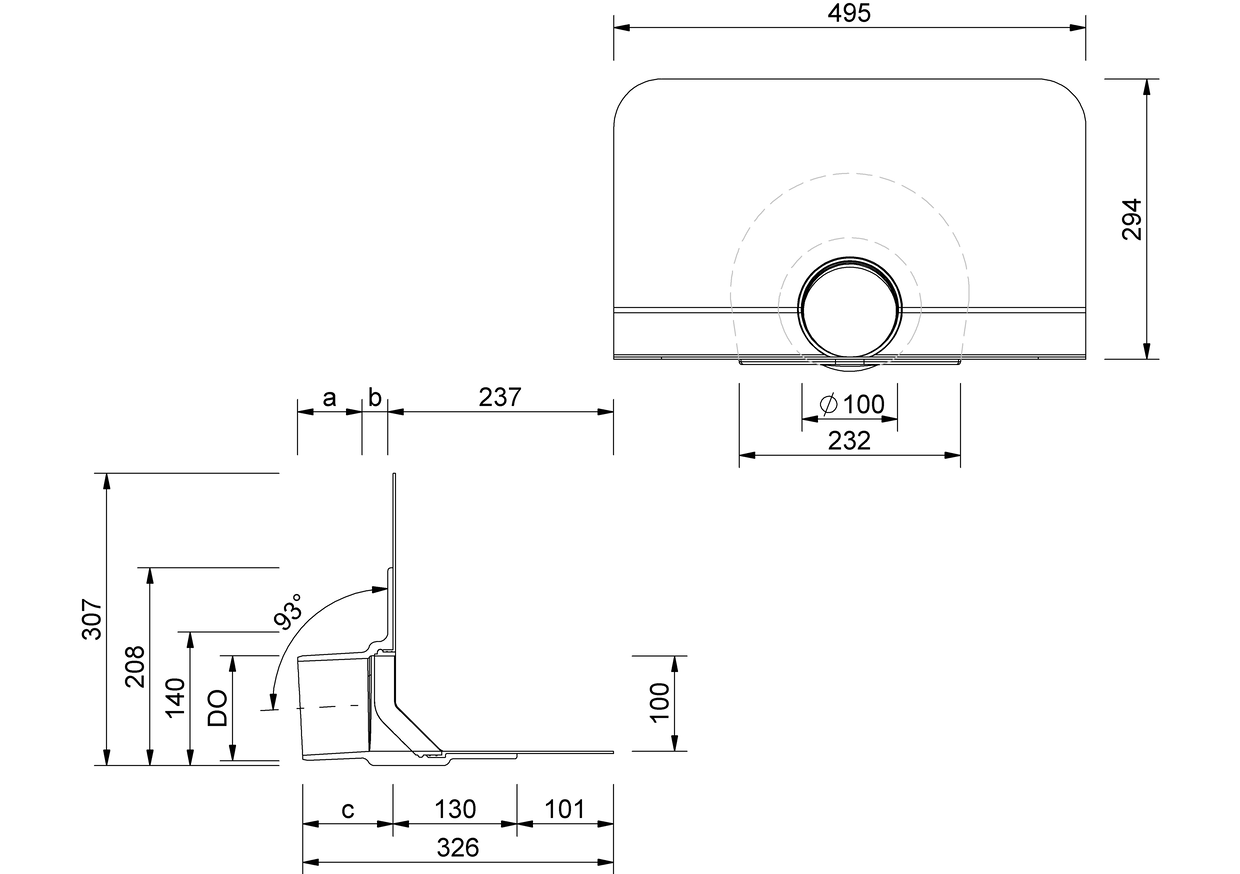

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) | c (mm) |
|---|---|---|---|---|---|
| 100 | 110 | 170 | 68 | 27 | 95 |
| 70 | 75 | 135 | 55 | 63 | 120 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with 4-metre downpipe in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF SitaEasy_Go_fuer_die_Notentwaesserung_erhoeht_eingebaut_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaEasy_Go_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau_bei_Plattenbelag_im_Splittbett.pdf
PDF SitaEasy_Go_mit_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau.pdf
Article selection
SitaEasy Go parapet outlet, made of polyurethane, in sizes DN 70 and DN 100. Angled fixed flange with 45° wedge design for direct welding of bitumen membranes. For direct connection of SitaAttika pipes combined with the SitaAttika safety clamp, with large foamed-in bitumen sleeve (495 mm x 495 mm). With securing ring for addition securing of the connection sleeve and to hold a dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.1 | 0.2 | 0.3 | 0.3 | 0.4 | 0.5 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.5 | 1.7 | 1.9 | 2 | 2.1 | 2.3 | 2.4 | 2.6 | 2.7 |
| 100 | 0.1 | 0.2 | 0.3 | 0.3 | 0.4 | 0.5 | 0.7 | 1 | 1 | 1.3 | 1.5 | 1.8 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.5 | 4 | 4.3 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.1 | 0.2 | 0.3 | 0.3 | 0.4 | 0.5 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.5 | 1.7 | 2 | 2.3 | 2.7 | 3 | 4 | 5 | 6 |
| 100 | 0.1 | 0.2 | 0.3 | 0.3 | 0.4 | 0.5 | 0.7 | 1 | 1.3 | 1.5 | 1.8 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.3 | 3.7 | 4 | 4.6 |
SitaEasy Go for main drainage in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go
SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go
SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket
9 SitaPipe Edelstahl cleaning pipe
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaEasy Go for emergency drainage, installed higher in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy Go
SitaEasy Go dome grate consisting of:
5.1 Latch
5.2 Dome grate basket
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy Go
SitaEasy Go dome grate consisting of:
5.1 Latch
5.2 Dome grate basket
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaEasy Go for emergency drainage in a non-ventilated roof structure with slab paving in a gravel bed
1 SitaAttika cladding cover plate
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:
- Slab paving
- Gravel bed
- Filter fabric
- Surface drainage
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaEasy Go with SitaEasy Go retaining element and SitaDrain profile frame in non-ventilated roof structures with slab covering
1 SitaAttika facade cover panel
2 SitaMore sealing collar for ETICS
3 SitaPipe stainless steel pipe
4 SitaMore vapor barrier plate flex
5 SitaPipe stainless steel pipe clamp

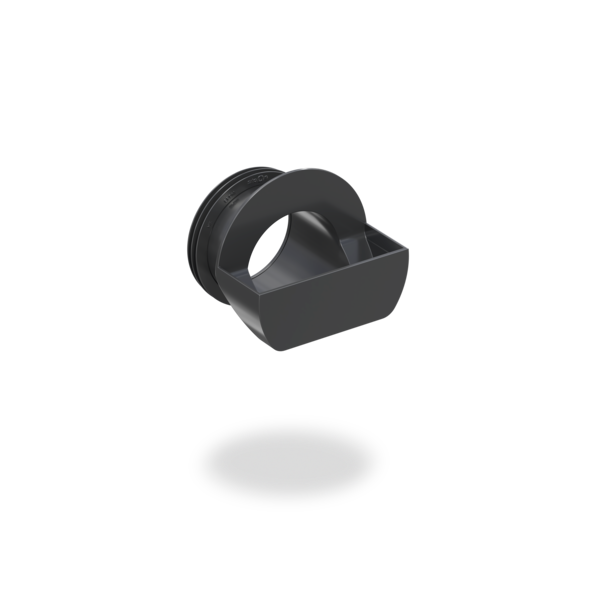

SitaEasy Go retaining element consisting of:
6.1 Seal
6.2 Backwater element base body
7 SitaEasy Go
SitaDrain profile frame consisting of:
8.1 Grating
8.2 Profile frame
2 SitaMore sealing collar for ETICS
3 SitaPipe stainless steel pipe
4 SitaMore vapor barrier plate flex
5 SitaPipe stainless steel pipe clamp
SitaEasy Go retaining element consisting of:
6.1 Seal
6.2 Backwater element base body
7 SitaEasy Go
SitaDrain profile frame consisting of:
8.1 Grating
8.2 Profile frame
Roof structure according to the aaRdT with:
- Slab covering on pedestal support
- Building protection mat
- Waterproofing
- Heat insulation
- Vapor barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Installation Examples
PDF SitaEasy_Go_fuer_die_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau.pdfPDF SitaEasy_Go_fuer_die_Notentwaesserung_erhoeht_eingebaut_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaEasy_Go_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau_bei_Plattenbelag_im_Splittbett.pdf
PDF SitaEasy_Go_mit_Anstauelement_und_SitaDrain_Profilrahmen_im_nicht_beluefteten_Dachaufbau.pdf
| SitaEasy Go | Article no. | |||
|---|---|---|---|---|
| DN 70 | bitumen-sleeve | 183600 | Show product | |
| DN 100 | bitumen-sleeve | 183800 | Show product |
+
