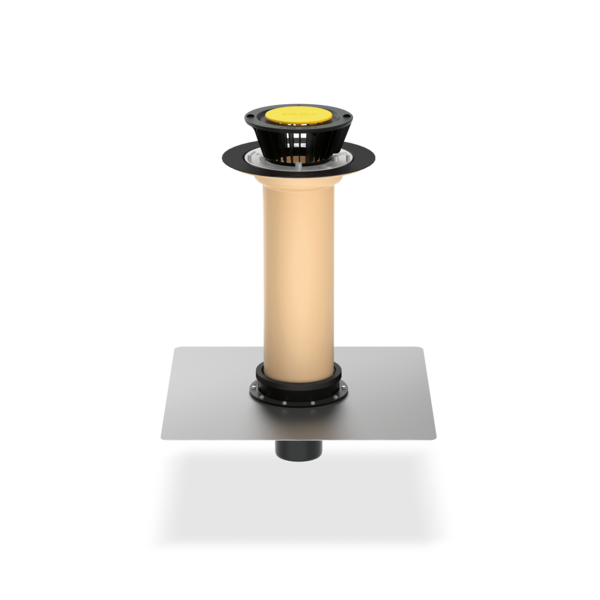

SitaFireguard®
Fire protection outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

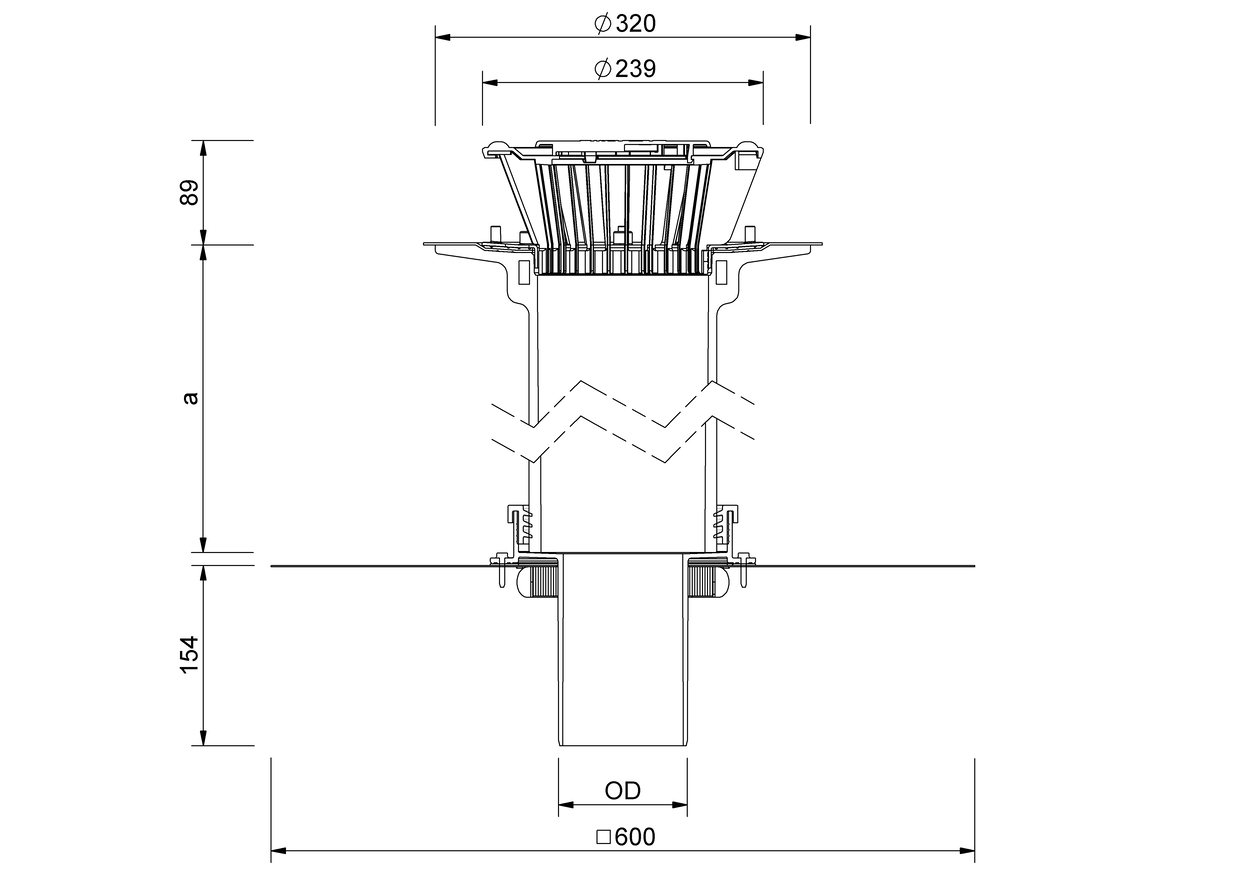

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | Recess dimension (mm x mm) | Bridging of thermal insulation min. (mm) | Bridging of thermal insulation max. (mm) |
|---|---|---|---|---|---|
| 125 | 125 | 255 | 200 x 200 | 105 | 570 |
| 150 | 160 | 300 | 300 x 300 | 105 | 570 |
| 70 | 75 | 185 | 150 x 150 | 105 | 570 |
| 100 | 110 | 235 | 190 x 190 | 105 | 570 |
SitaFireguard® screw-on flange with dome grate for preventive fire protection and to prevent the spread of fire from below where there are small penetrations according to DIN 18234 Part 3 and 4, in two parts, consisting of: PE base body with collar for fixing to the reinforcement plate and for clamping the vapour barrier, to DIN EN 1253-2. Including extension unit for insulating material thicknesses from 105 mm to 570 mm made of PUR with screw-on flange construction and dome grate. For direct connection to pipes with plug-in coupler, for conventional drainage, with a sealing sleeve and a reinforcement plate to DIN EN 1090-4, with pre-assembled fire protection sleeve, supply complete and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1 | 1.8 | 2.7 | 3.3 | 4.3 | 5 | 5.7 | 6.7 | 7.4 | 8.3 | 9.1 | 9.6 | 10.4 | 11 | 11.6 | 12.6 | 13.4 | 14.8 | 16 |
| 100 | 0.7 | 1.3 | 2.3 | 3 | 4 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 8.8 | 9.6 | 10.4 | 11.2 | 12 | 14 | 16.6 | 18 | 20 | 23 |
| 125 | 0.5 | 1.2 | 2 | 2.9 | 3.6 | 4.7 | 5.5 | 6.3 | 7.3 | 8.3 | 9.2 | 10 | 11 | 12 | 13.2 | 14.9 | 16.6 | 18 | 21 | 24.9 |
| 150 | 0.5 | 1 | 1.5 | 2.5 | 3.1 | 4.4 | 5.2 | 6.8 | 8.1 | 9.3 | 11 | 12.9 | 14.9 | 16.5 | 17.7 | 18.4 | 19.5 | 20 | 21.1 | 22 |

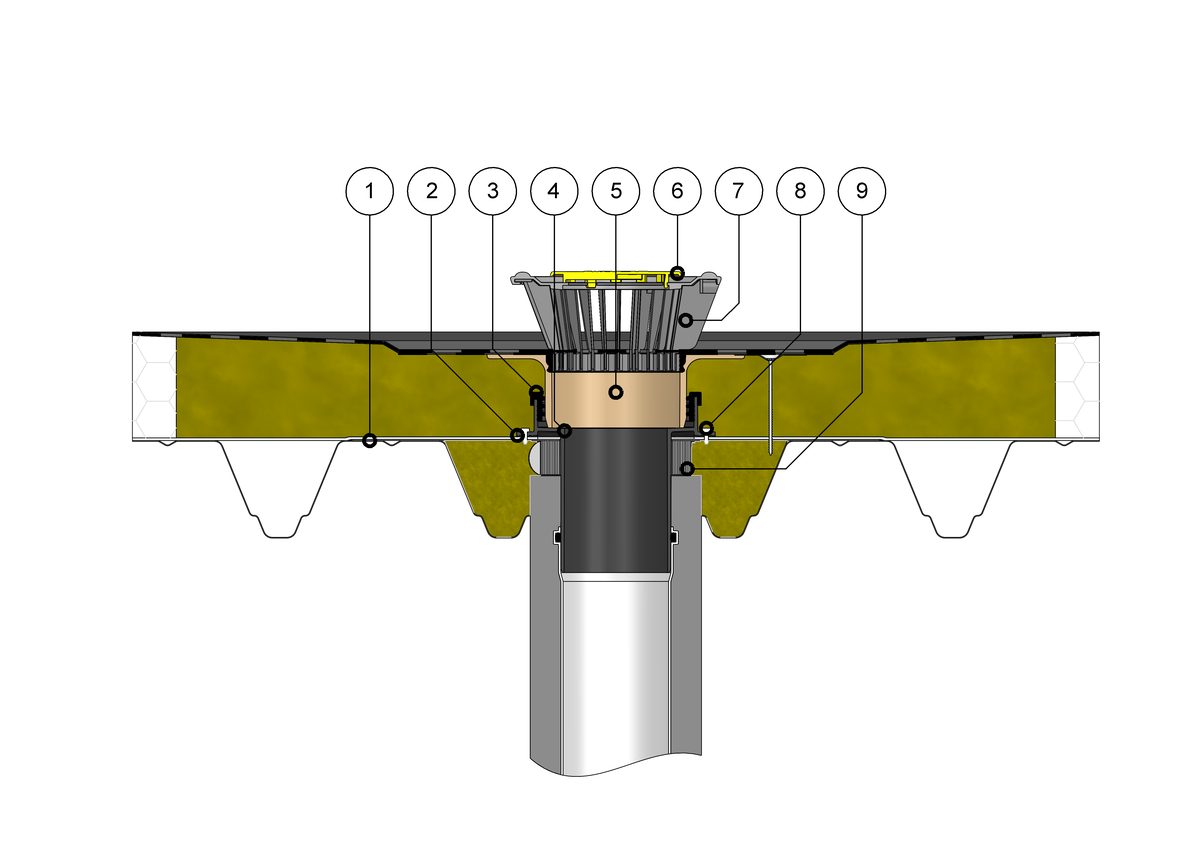

SitaFireguard in a non-ventilated roof structure
1 Reinforcement plate
2 Sealing sleeve
3 Seal
4 PE base body
5 Extension unit
6 Dome grate base body
7 Dome grate cover
8 Self-tapping screw

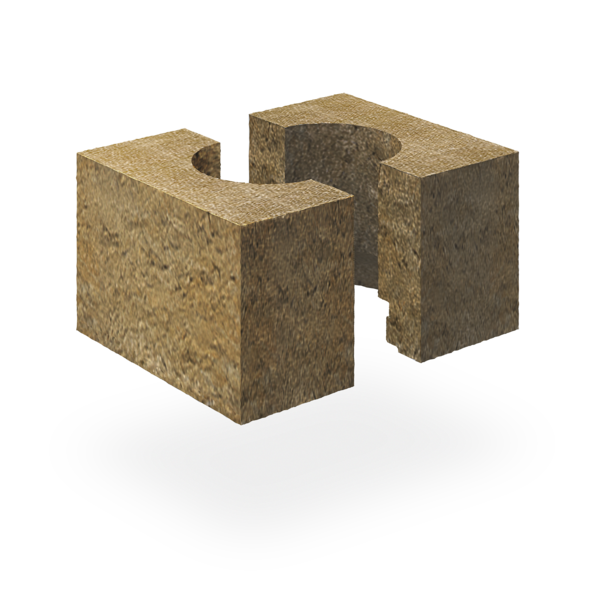

9 Fire protection sleeve
- Sealing
- Thermal insulation non-flammable, min. 1.0 m x 1.0 m
- Vapour barrier
- Non-flammable section fillers
- Steel trapezoidal section
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_F302899_en.pdfPDF TechnischeZeichnung_F303299_en.pdf
PDF TechnischeZeichnung_F303699_en.pdf
PDF TechnischeZeichnung_F304099_en.pdf
DWG TZ_DB_SitaFireguard_Brandschutzgully_Schraubflansch_DN100_550.dwg
DWG TZ_DB_SitaFireguard_Brandschutzgully_Schraubflansch_DN125_550.dwg
DWG TZ_DB_SitaFireguard_Brandschutzgully_Schraubflansch_DN150_550.dwg
DWG TZ_DB_SitaFireguard_Brandschutzgully_Schraubflansch_DN70_550.dwg
Installation Instructions
PDF Einbauanleitung_SitaFireguard_SitaDSS_Fireguard_SitaVent_Fireguard_E280010.pdf| SitaFireguard® | Article no. | ||||
|---|---|---|---|---|---|
Screw-on flange with dome grate | |||||
| DN 70 | Screw-on flange | 550 mm | F302899 | Show product | |
| DN 100 | Screw-on flange | 550 mm | F303299 | Show product | |
| DN 125 | Screw-on flange | 550 mm | F303699 | Show product | |
| DN 150 | Screw-on flange | 550 mm | F304099 | Show product |
