SitaKaskade Flat
Parapet lead-through
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

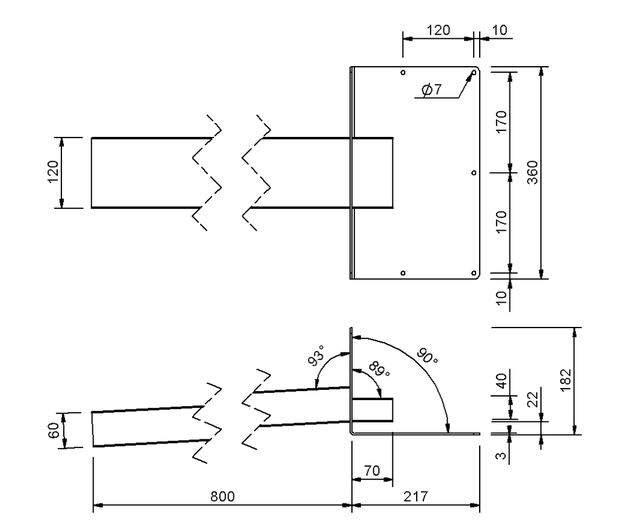

Technical drawing
+
SitaKaskade Flat
Parapet lead-through
SitaKaskade Flat parapet lead-through, made of rust-proof stainless steel, material number 1.4301, pipe cross-section of inlet pipe 120 x 40 mm, outlet pipe 120 x 60 mm, inclination 3°, welded and angled flange for sealing with liquid applied waterproofing and pre-drilled holes for fixing to the parapet, for use as waterspout or for connection to downpipes with the SitaTurbo adapters, supply and install to professional standards.
| SitaKaskade Flat | Article no. | ||
|---|---|---|---|
Parapet lead-through | |||
| 800 mm | 330400 | Show product |
