SitaKaskade Inside
Cascade draining
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

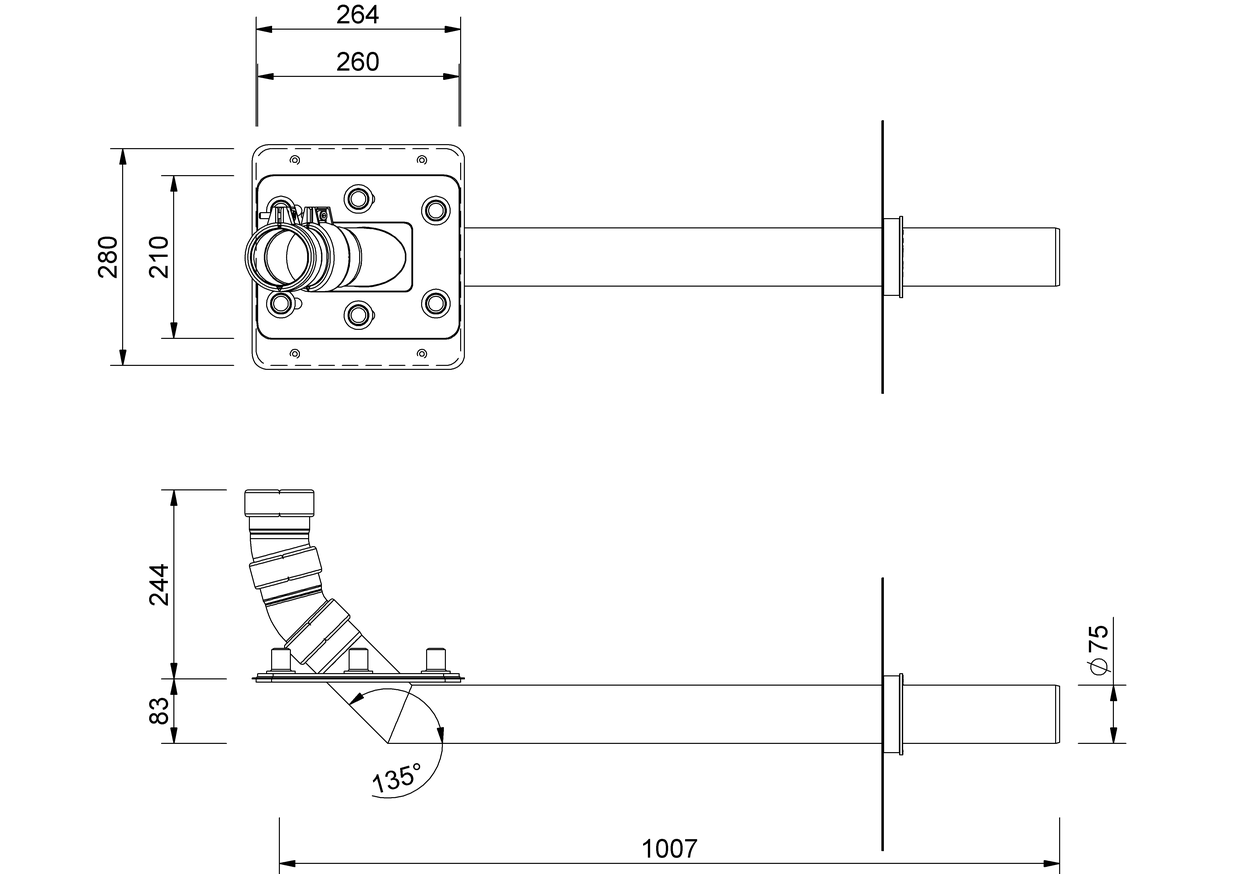

Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) |
|---|---|---|
| 70 | 75 | 1011 x 75 |
SitaKaskade Inside as waterspout, for safe movement of rainwater from higher roof areas via the lower-lying roof areas, consisting of the SitaKaskade Inside for routing the DN 70 pipe system through the thermal insulation, with pre-drilled holes for fastening of the component in the substructure, with screw-on flange construction with two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, six M12 threaded rods and washers and hexagonal nuts, SitaMore vapour barrier plate flex, SitaPipe Edelstahl bend 30°, SitaPipe Edelstahl bend 15°, 3 pcs. SitaPipe Edelstahl safety clamp, size DN 70, supply and install to professional standards.
SitaKaskade Inside in a non-ventilated roof structure and paving on support pads with transition to downpipe in the thermal insulation composite system
1.1 SitaAttika bend 87.5°
1.2 SitaPipe Edelstahl safety clamp
1.3 SitaMore vapour barrier plate flex
1.4 SitaKaskade Inside
1.5 SitaKaskade Inside loose flange with sealing sleeves, nuts, flat washers and protective caps
1.6 SitaPipe Edelstahl bend 30°
1.7 SitaPipe Edelstahl bend 15°
2 SitaPipe Edelstahl pipe
3 SitaPipe Edelstahl pipe clamp
4 SitaPipe Edelstahl safety clamp
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

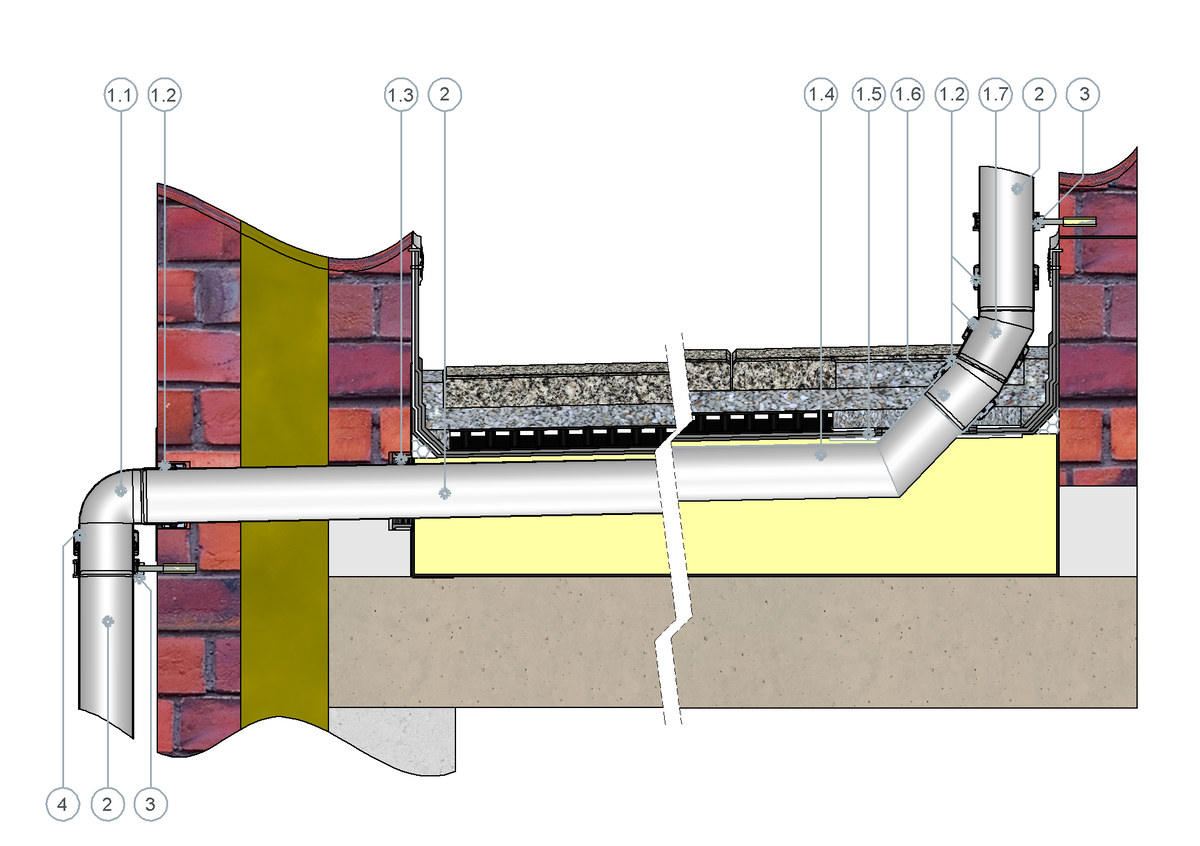

SitaKaskade Inside with transition to downpipe in a non-ventilated roof structure with terrace surface
1.1 SitaAttika bend 87.5°
1.2 SitaPipe Edelstahl safety clamp
1.3 SitaMore vapour barrier plate flex
1.4 SitaKaskade Inside
1.5 SitaKaskade Inside loose flange with sealing sleeves, nuts, flat washers, protective caps
1.6 SitaPipe Edelstahl bend 15°
1.7 SitaPipe Edelstahl bend 30°
2 SitaPipe Edelstahl pipe
3 SitaPipe Edelstahl pipe clamp
4 SitaPipe Edelstahl safety clamp
- Slab paving in gravel bed
- Drainage mat
- Protective fabric
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaIndra and SitaKaskade Inside for main drainage in a non-ventilated roof structure
2 SitaPipe Edelstahl safety clamp
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl pipe
SitaIndra main drainage set consisting of:
5.1 Vapour barrier plate flex
5.2 Insulating body
5.3 Pipe
5.4 Safety clamp
5.5 Base body with connection sleeve of choice
5.6 Dome grate base body
5.7 Dome grate cover
SitaKaskade Inside for downpipe consisting of:
6.1 Loose flange with sealing sleeves, nuts, washers and protective caps
6.2 Cascade component with threaded rods
6.3 Safety clamp
6.4 Bend 15°
6.5 Bend 30°
6.6 Vapour barrier plate
6.7 Bend 87.5°
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
