SitaPipe PP

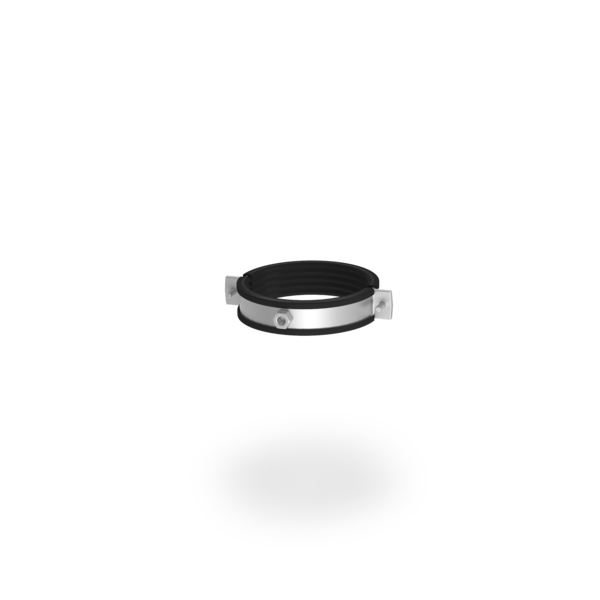

pipe clamp
Attributes
- White internal surfaces to simplify video inspections
- Mechanical resistance, very high mechanical strength, even against impacts up to -10°C
- System resistant to underpressures up to - 400 mbar and overpressures up to 1.5 bar
- Good acoustic comfort: 16 dB(A) in accordance with EN 14366 and 18 dB(A) in accordance with DIN 4109 at a flow rate of 2 l/s
- Ecological because it is made of fully recyclable material
- Can be connected to other materials such as SitaPipe stainless steel, PE, PVC and PP

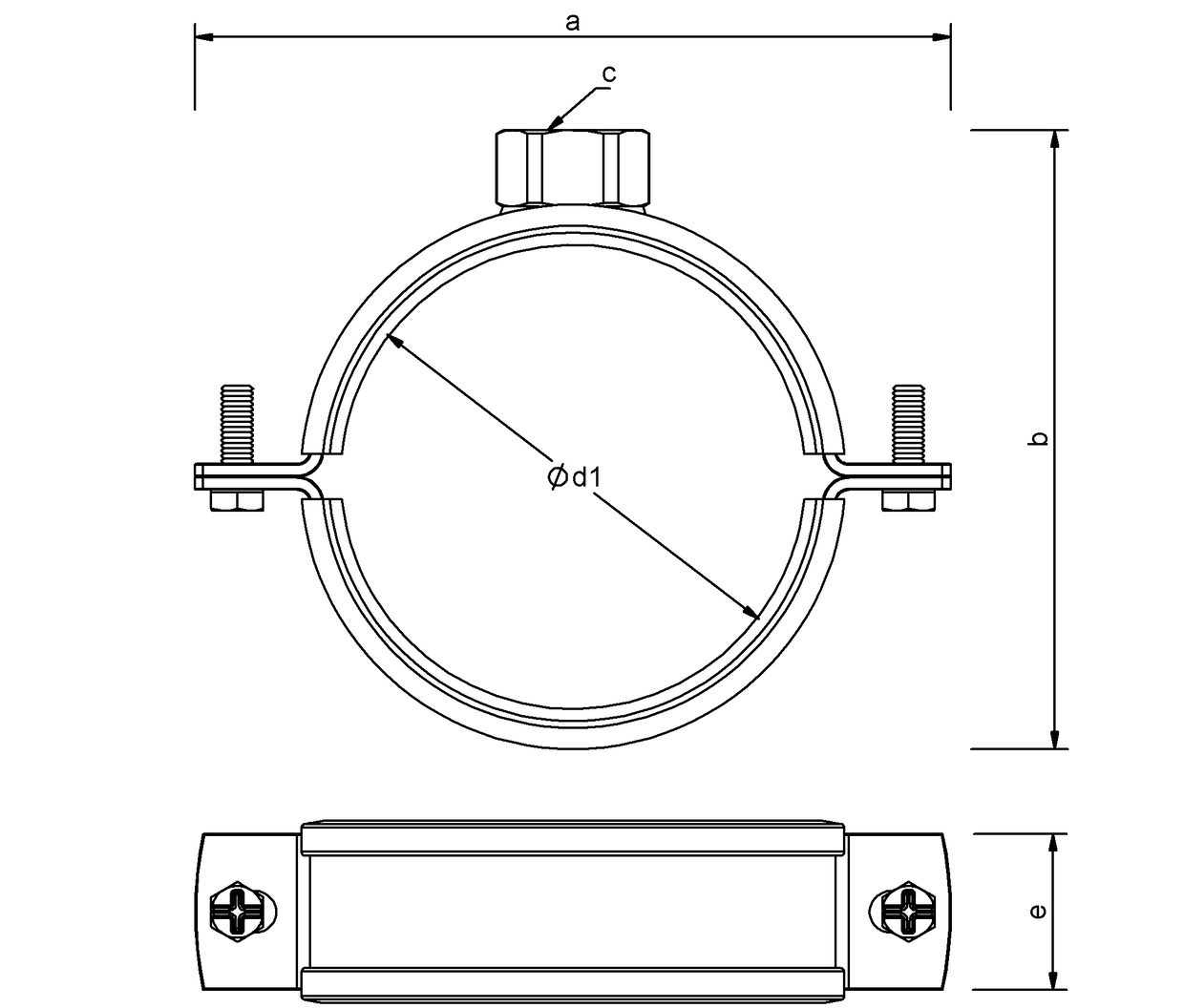

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c | e (mm) | d1 (mm) |
|---|---|---|---|---|---|---|
| 100 | 110 | 161 | 142 | 1/2" | 30 | 110 |
| 125 | 125 | 177 | 157 | 1/2" | 30 | 125 |
| 150 | 160 | 225 | 192 | 1/2" | 30 | 160 |
| 70 | 75 | 127 | 107 | 1/2" | 30 | 75 |
| 50 | 50 | 105 | 76 | 1/2" | 30 | 50 |
| 90 | 90 | 145 | 119 | 1/2" | 30 | 90 |
| 100 | 110 | 161 | 133 | M10 | 30 | 110 |
| 125 | 125 | 177 | 148 | M10 | 30 | 125 |
| 150 | 160 | 225 | 183 | M10 | 30 | 160 |
| 70 | 75 | 127 | 97 | M10 | 30 | 75 |
| 50 | 50 | 105 | 72 | M10 | 30 | 50 |
| 90 | 90 | 145 | 112 | M10 | 30 | 90 |
