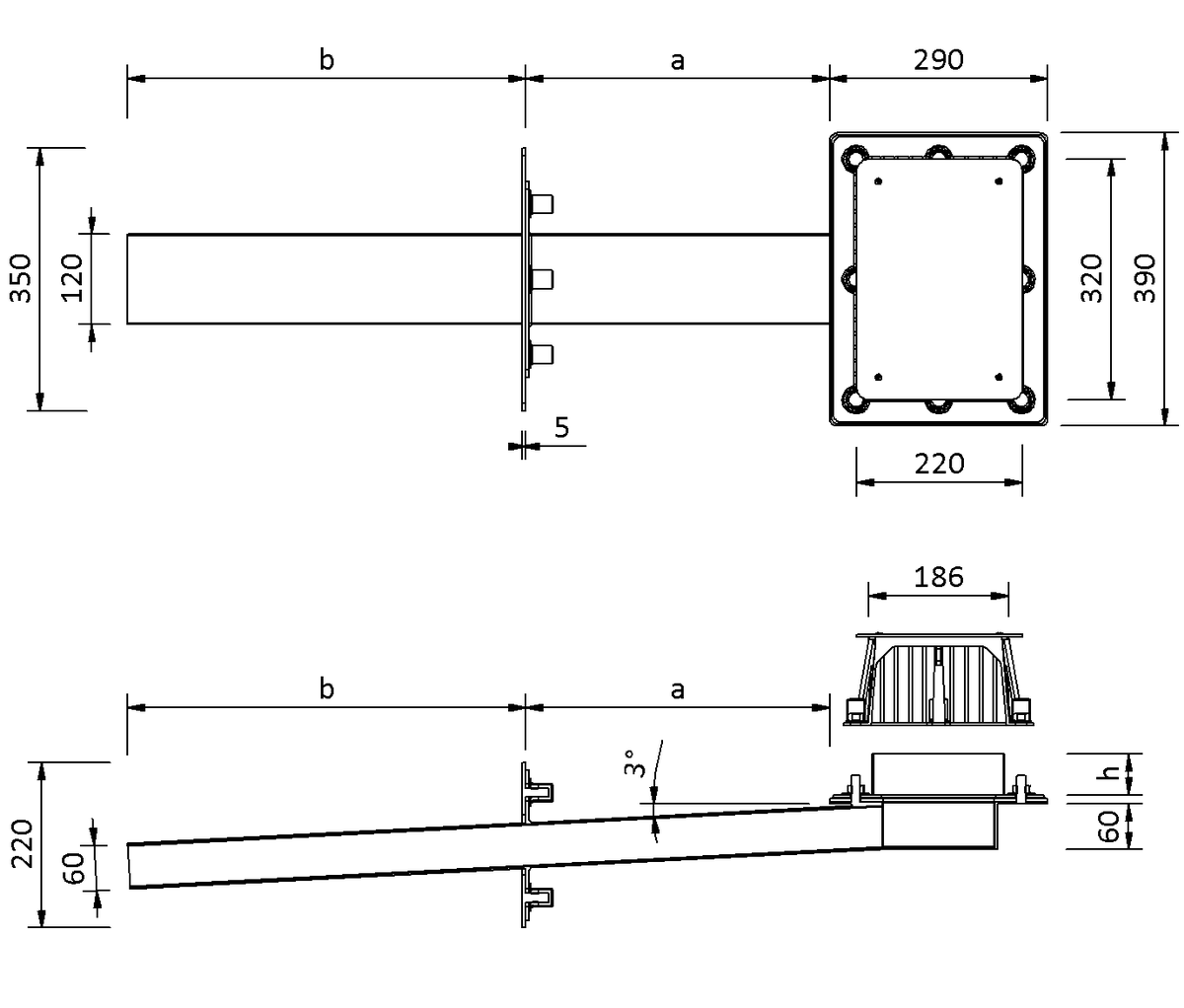

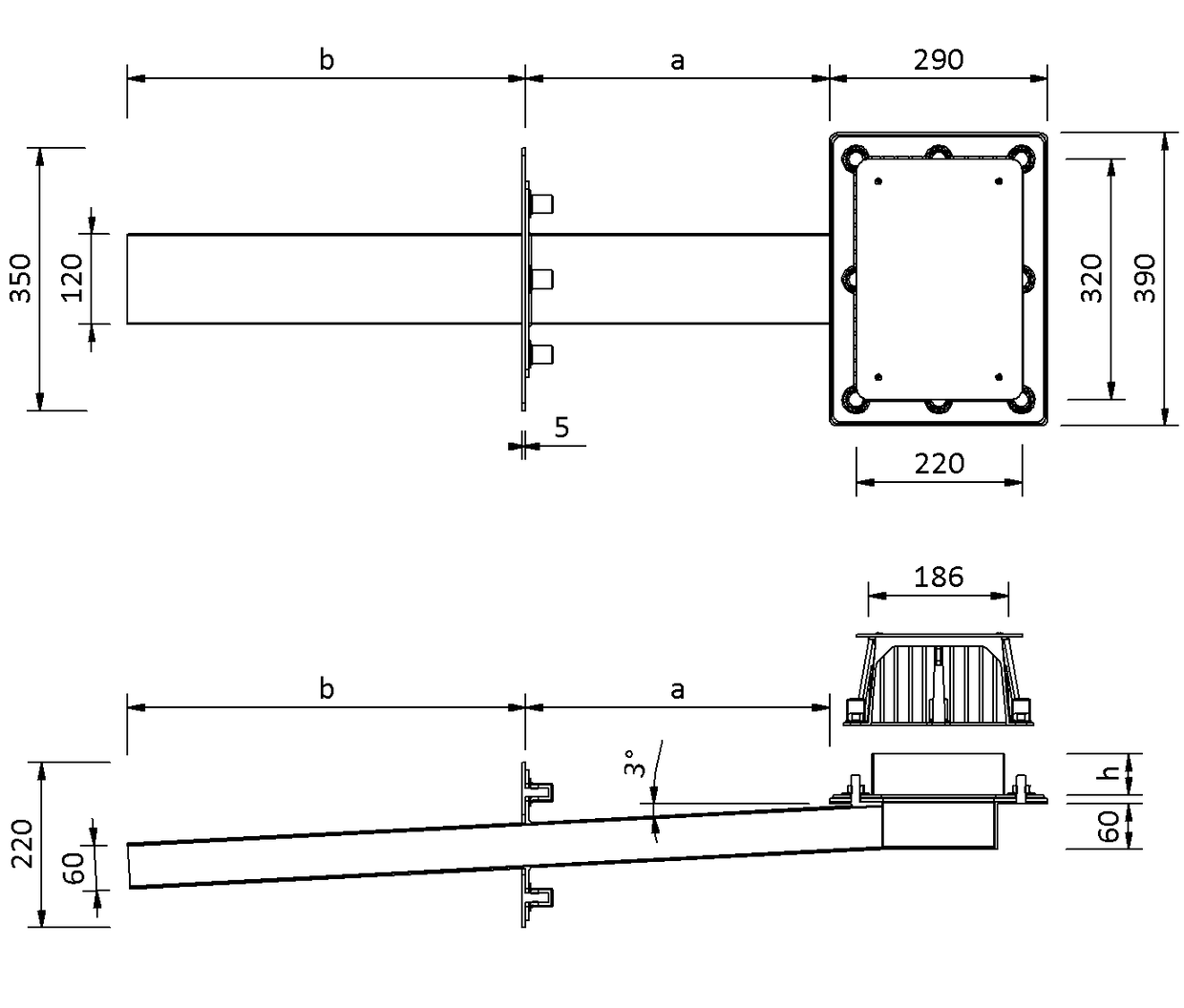

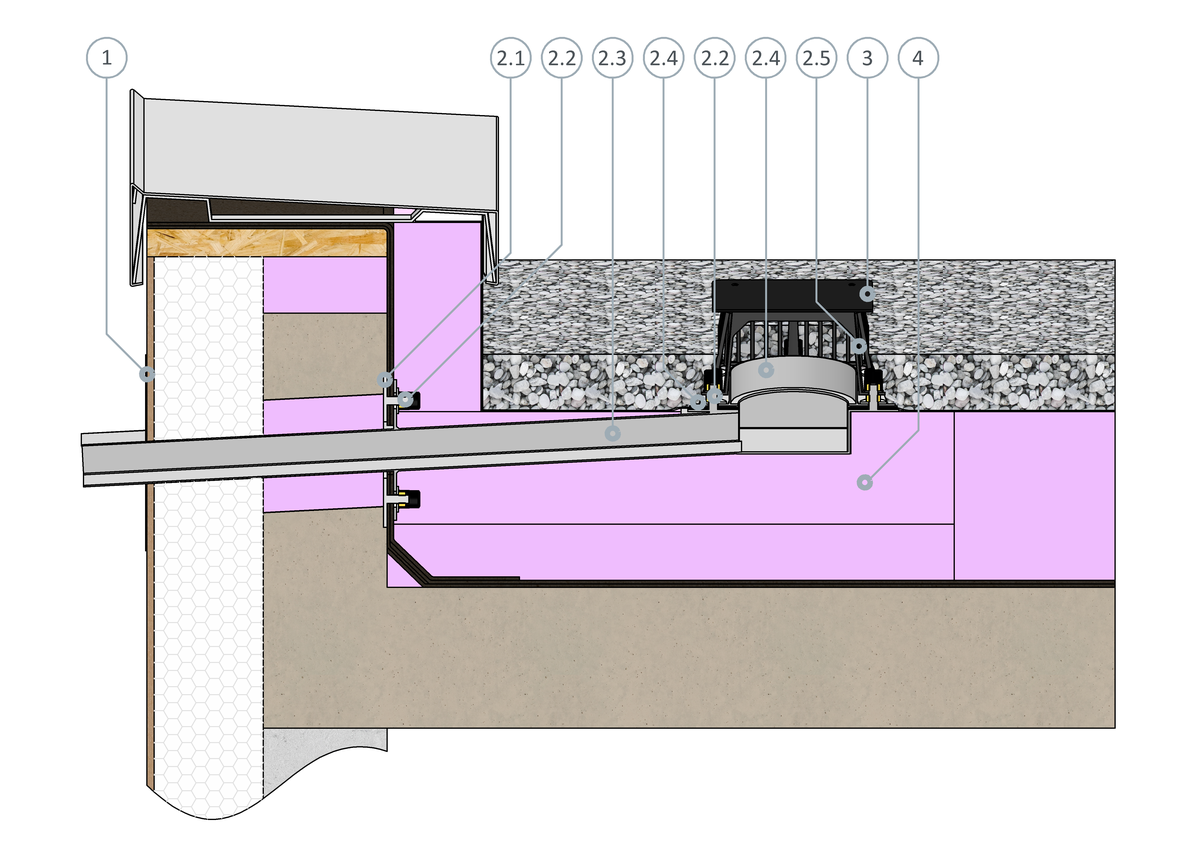

| Opening/Core borehole (mm) | Pipe cross-section (mm x mm) | A | B | H |
|---|---|---|---|---|
| 170 | 120 x 60 | 450 mm | 700 mm | Height of loose retaining flange according to specification |
| 170 | 120 x 60 | Distance to the parapet | Parapet width plus overhang | Height of loose retaining flange according to specification |

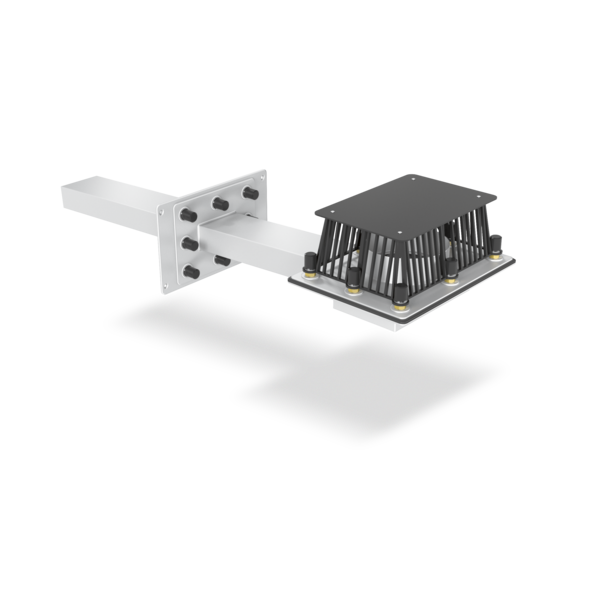

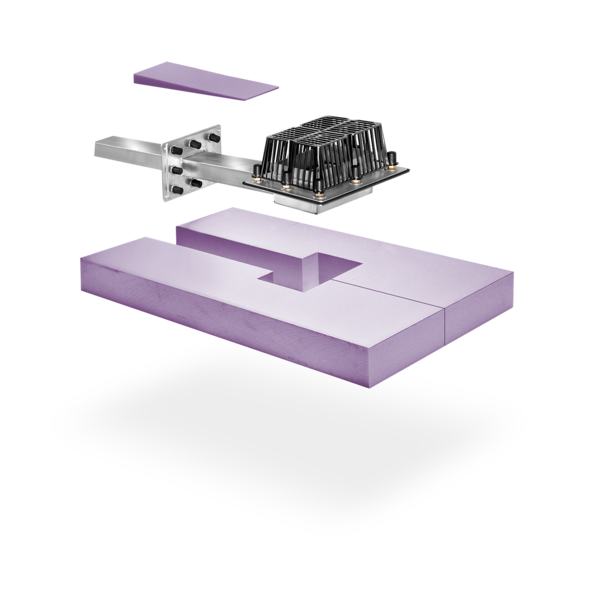

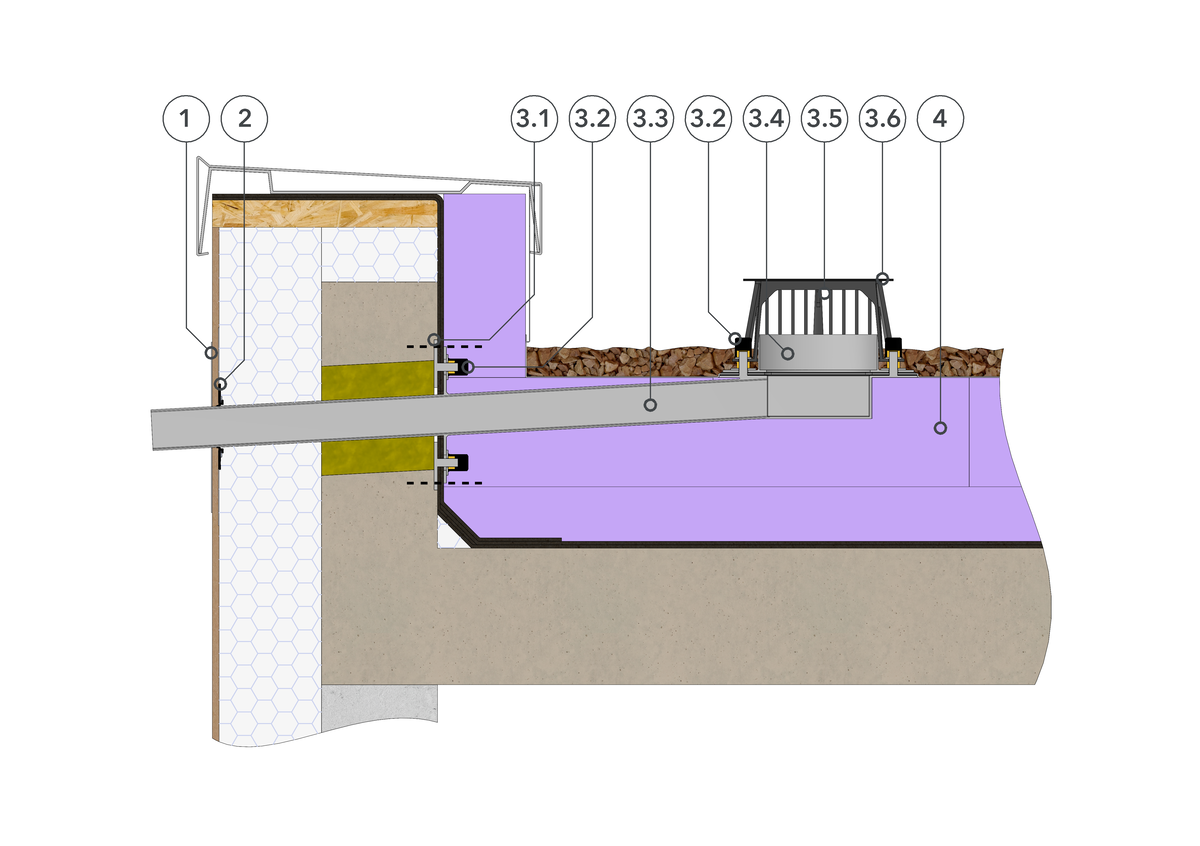

SitaTurbo Max inverted roof, made of rust-proof stainless steel, material no. 1.4301, according to DIN EN 1253-2, discharge rate as waterspout 8.8 l/s at 65 mm retaining height with screw-on flange construction for clamping the protective fleece and with a flange plate welded to the rectangular pipe for clamping bitumen, plastic or EPDM roofing membranes with sealing sleeves, threaded pins, washers, M12 nuts, protective caps and dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe cross-section (mm x mm) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 120 x 60 | 0.7 | 1.4 | 2.3 | 3 | 4 | 5 | 6.3 | 7.1 | 7.7 | 8.1 | 8.3 | 8.5 | 8.8 | 9 | 9.2 | 9.3 | 9.5 | 9.7 | 9.9 | 10 |
| SitaTurbo | Article no. | ||
|---|---|---|---|
Max inverted roof | |||
| Customised design | 18210099 | Show product | |
| A=450 mm / B=700 mm | 18270099 | Show product |
