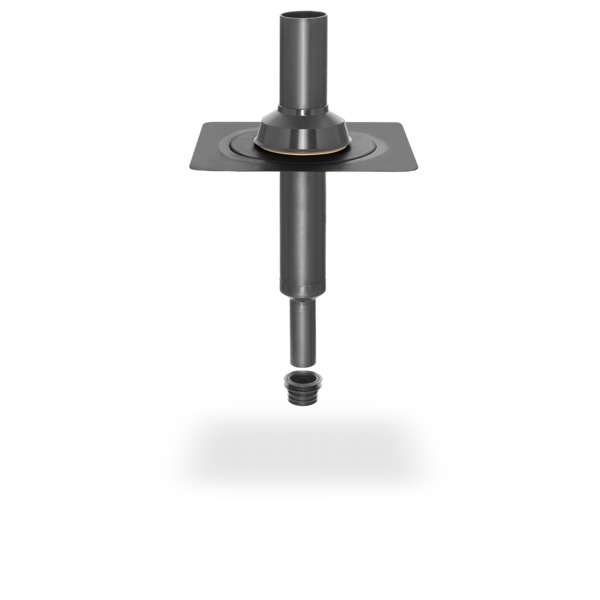

SitaVent refurbishment vent

Ventilation

Attributes

Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable
Backflow safe up to a water column of 2 m

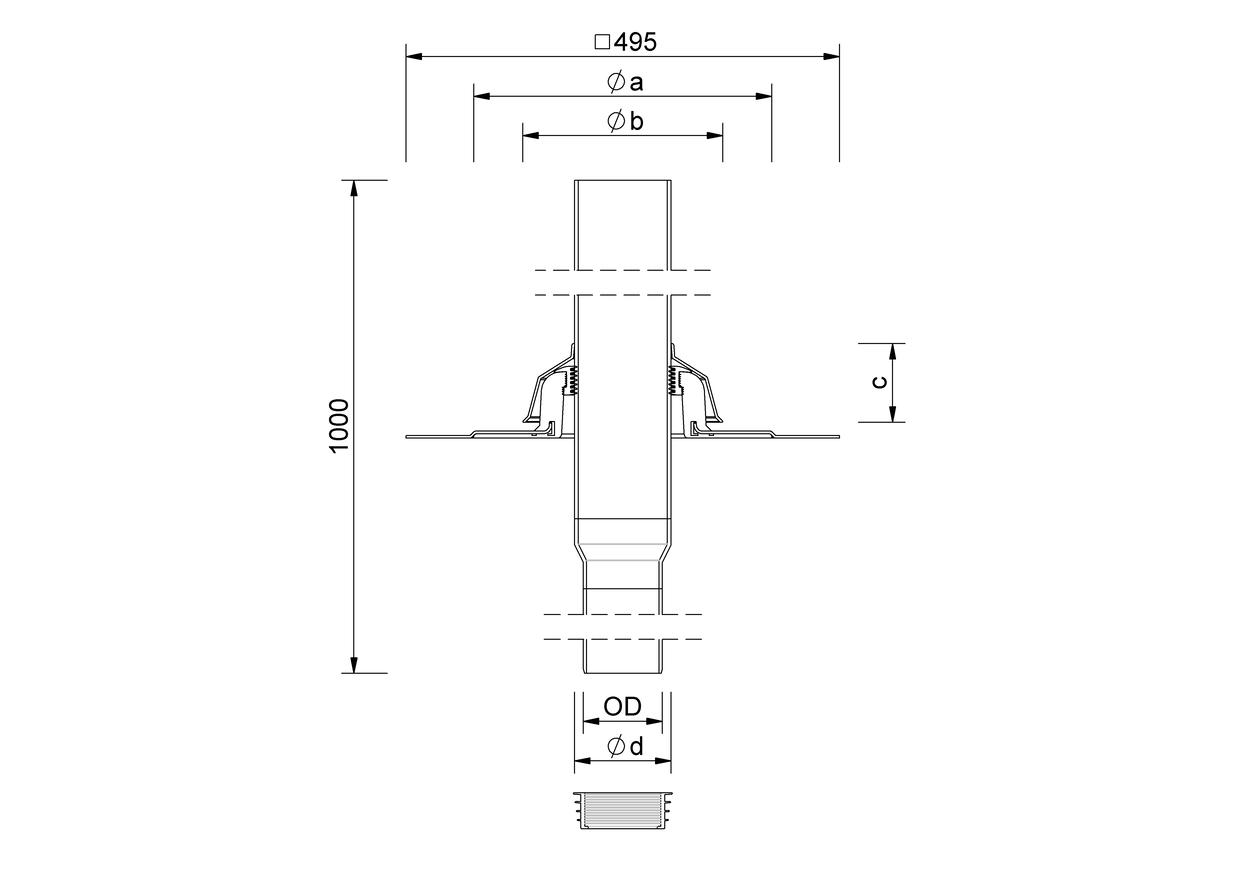

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)	a (mm)	b (mm)	c (mm)	d (mm)	Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
63	63	170	340	227	90	110	68 - 86
125	125	220	376	278	93	160	140 - 168
90	90	170	340	227	90	110	98 - 107
75	75	170	340	227	90	110	82 - 103
110	110	170	340	227	90	110	115 - 130
160	160	220	376	278	93	160	178 - 205

Performance text

SitaVent refurbishment vent, made of polyurethane, thermally insulated, for the refurbishment of vent pipes with an internal diameter of 68–205 mm, with foamed-in connection sleeve of choice for a homogeneous connection to the roofing membrane. Complete, including 1000 mm PE pipe, lubricant, and seal for backflow protection, supply and install to professional standards.

Installation Examples

SitaVent refurbishment vent with SitaVent condensation deflector in a non-ventilated roof structure

1 SitaMore reinforcement plate

SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring

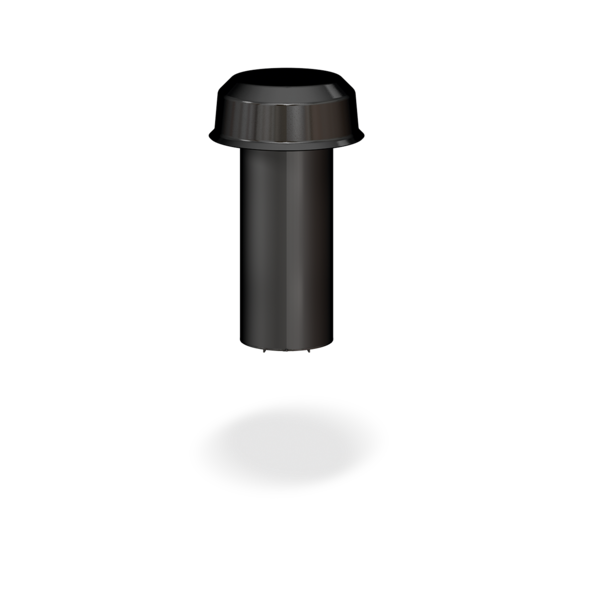

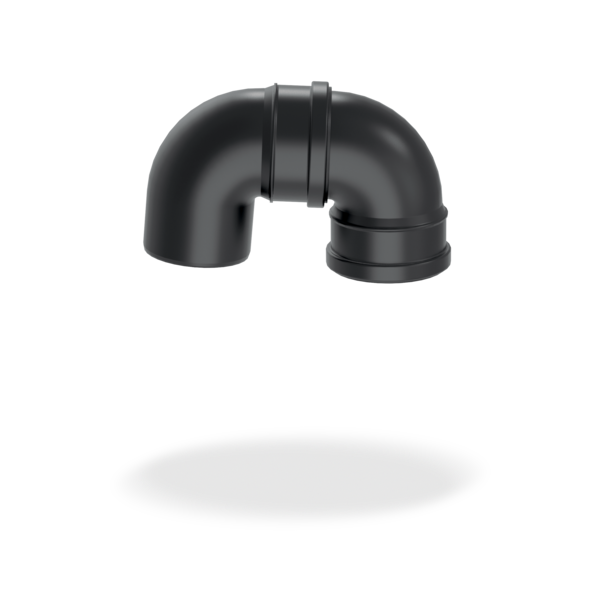

SitaVent condensation deflector consisting of:

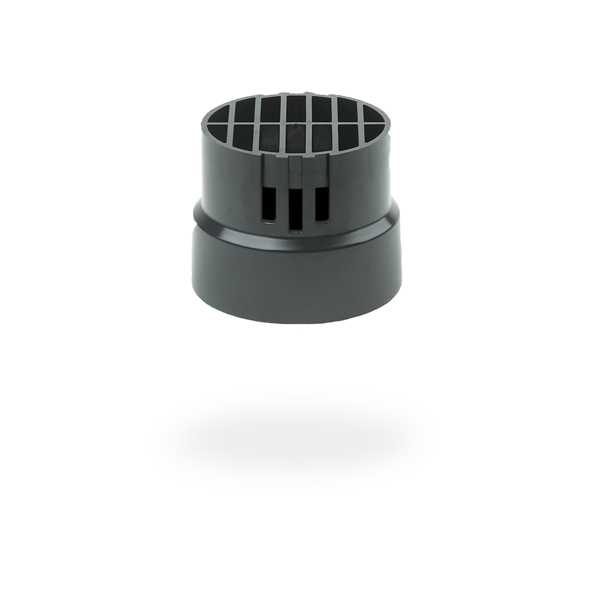

3.1 Adapter for condensation deflector pipe

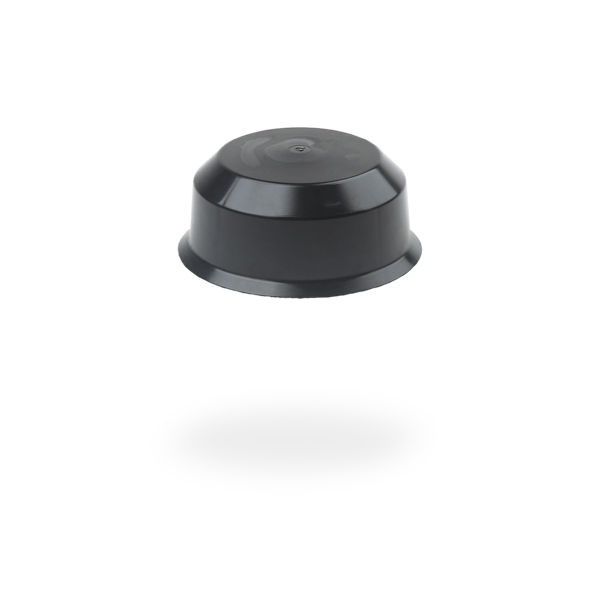

3.2 Rain cover

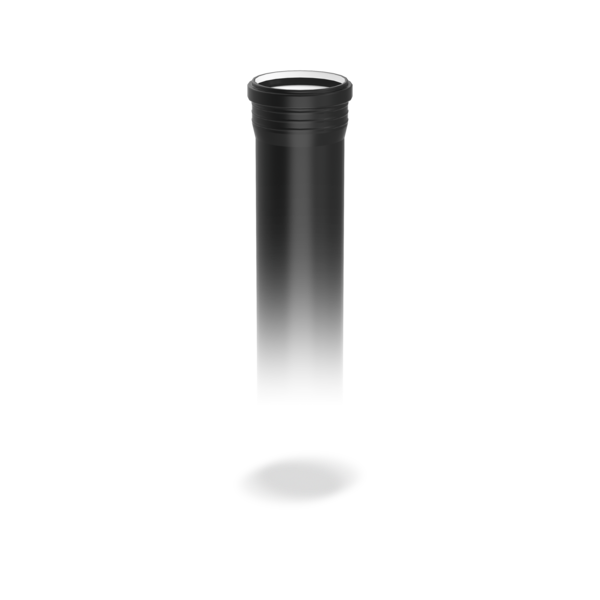

3.3 Condensation deflector pipe

SitaVent refurbishment vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate
4.5 Seal

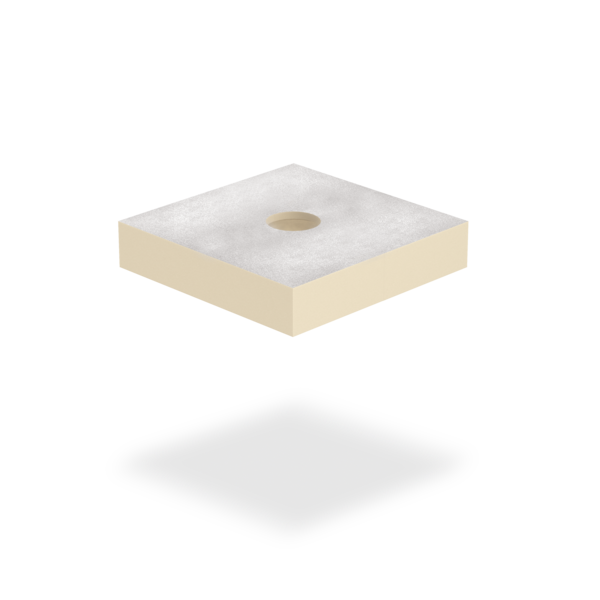

5 SitaVent base plate insulating body

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure
