SitaConcrete
Balcony and terrace drainage rainwater outlet
- Products
SitaConcrete

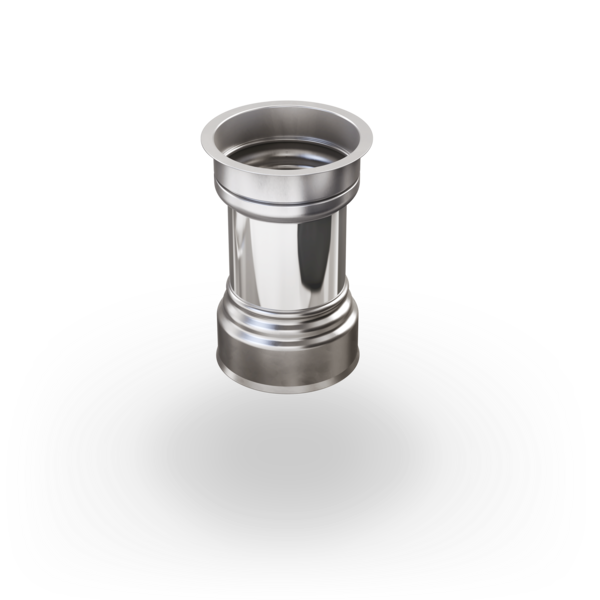

Balcony and terrace drainage rainwater outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

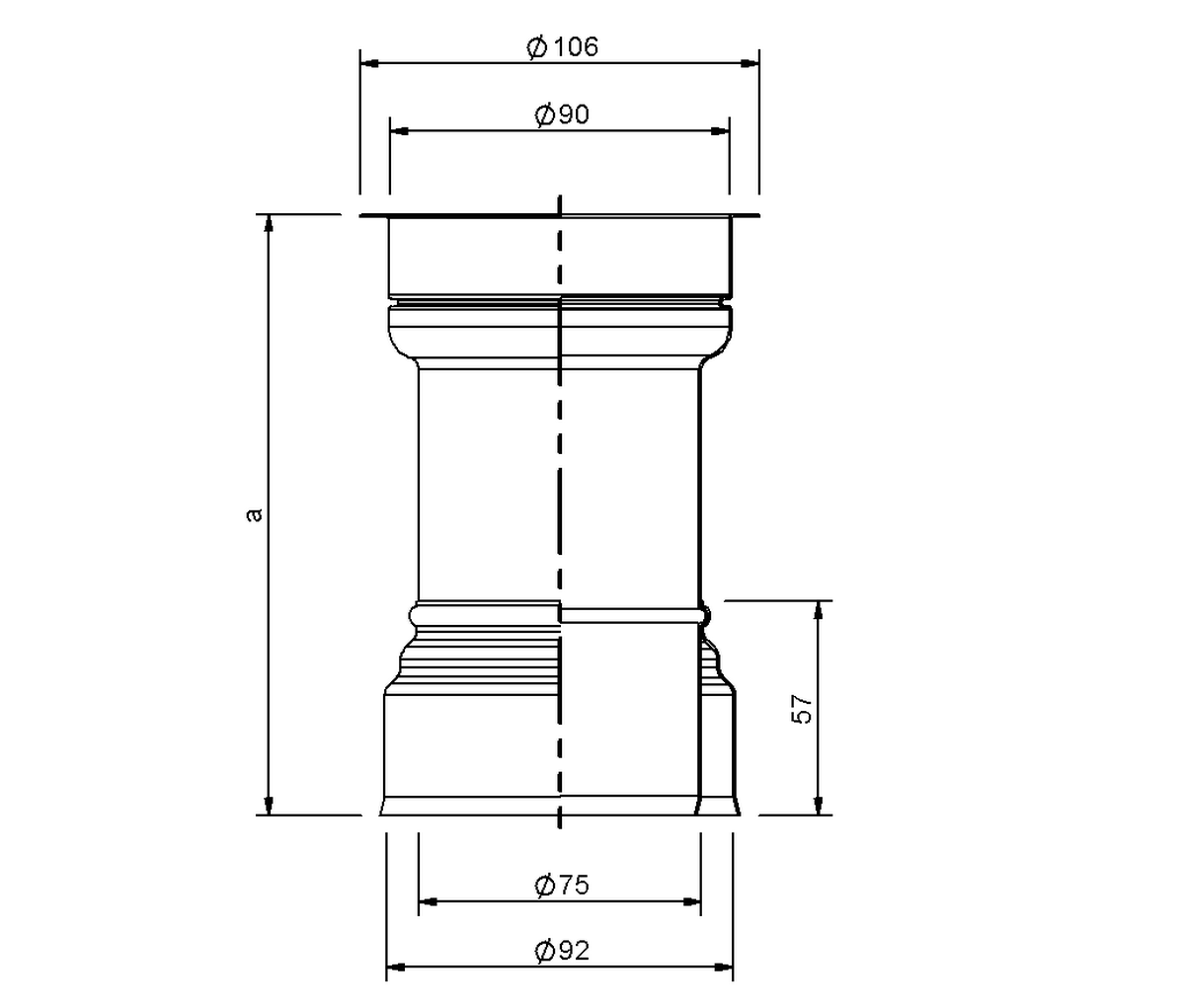

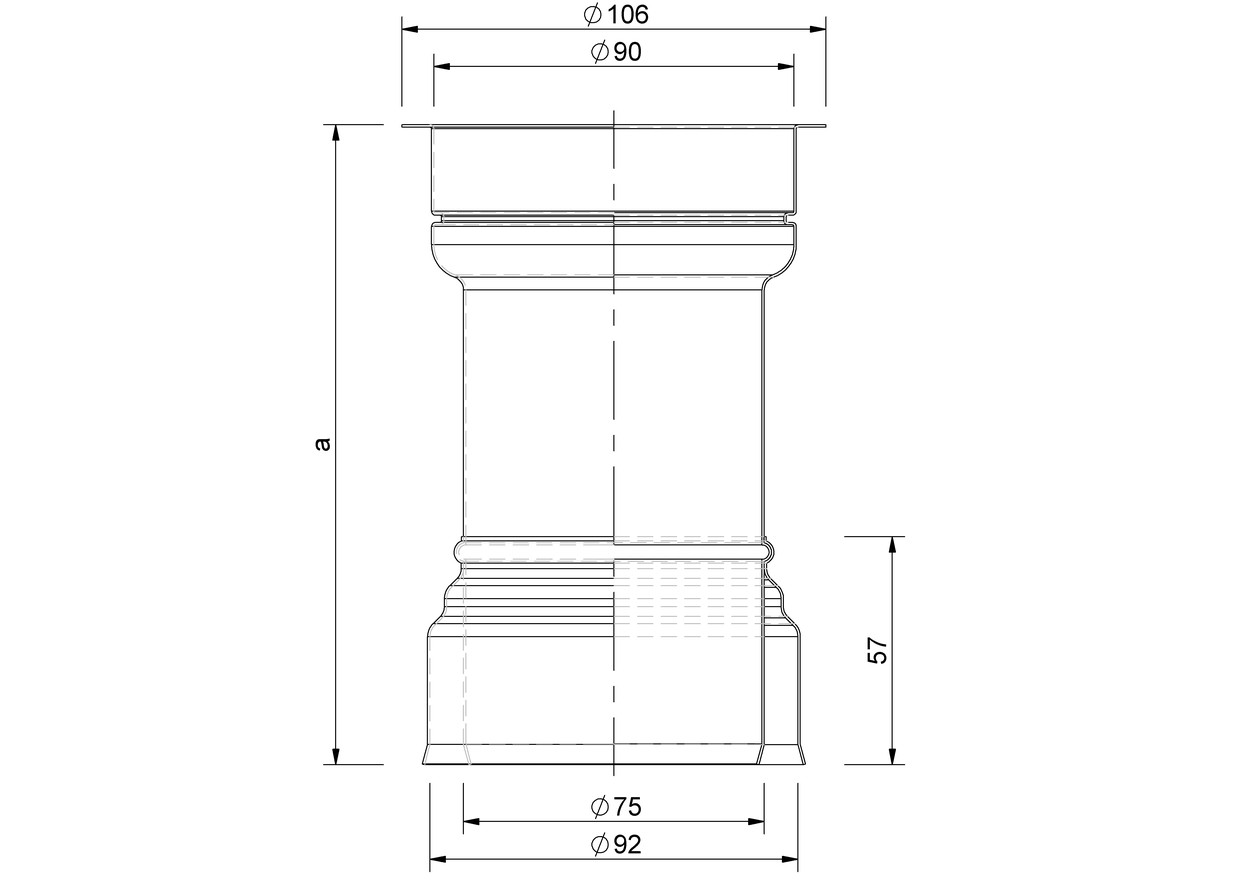

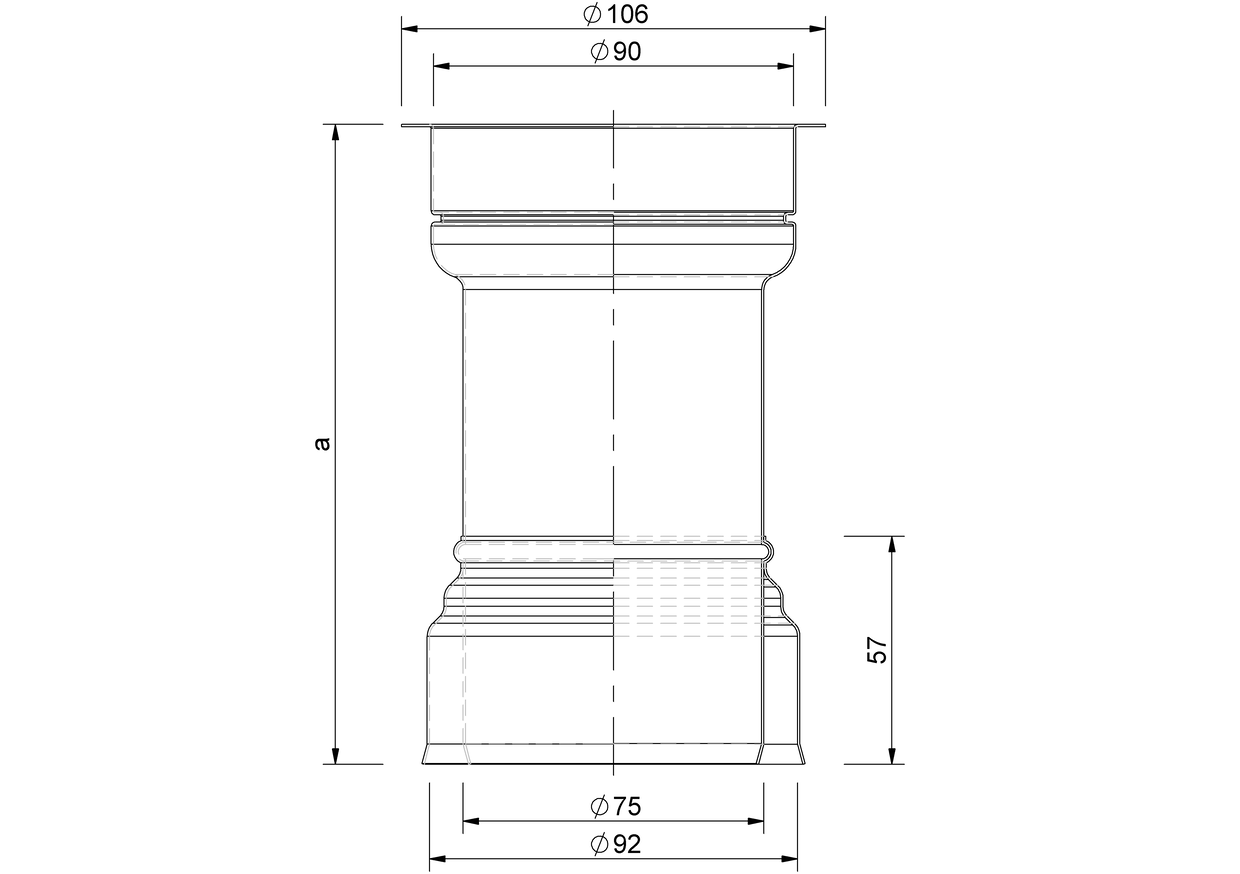

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) |
|---|---|---|
| 70 | 75 | 140 |
| 70 | 75 | 160 |
| 70 | 75 | 220 |
| 70 | 75 | 200 |
| 70 | 75 | 180 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_340216_en.pdf
PDF TechnischeZeichnung_340218_en.pdf
PDF TechnischeZeichnung_340220_en.pdf
PDF TechnischeZeichnung_340222_en.pdf
DWG TZ_DB_SitaConcrete_140mm.DWG
DWG TZ_DB_SitaConcrete_160mm.DWG
DWG TZ_DB_SitaConcrete_180mm.DWG
DWG TZ_DB_SitaConcrete_200mm.DWG
DWG TZ_DB_SitaConcrete_220mm.DWG
Article selection

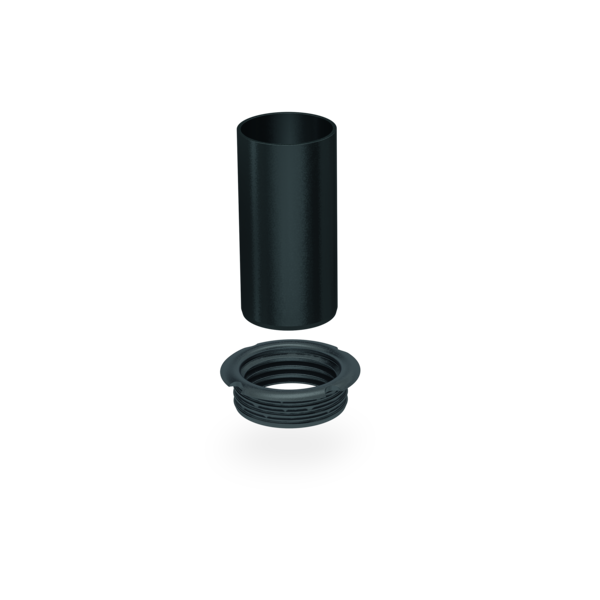

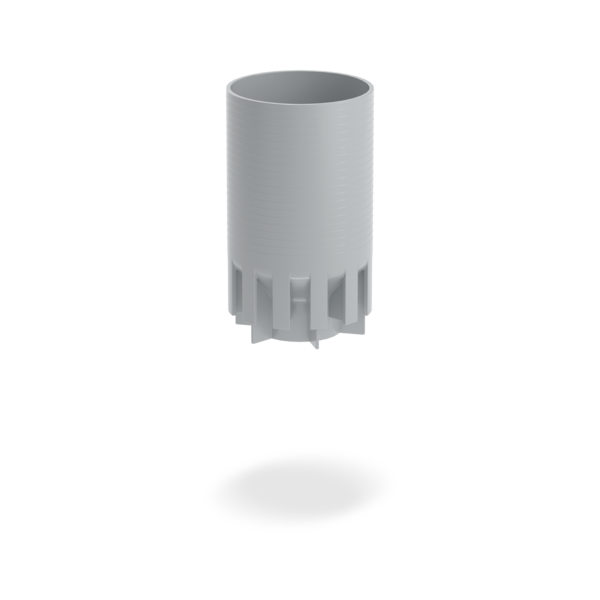

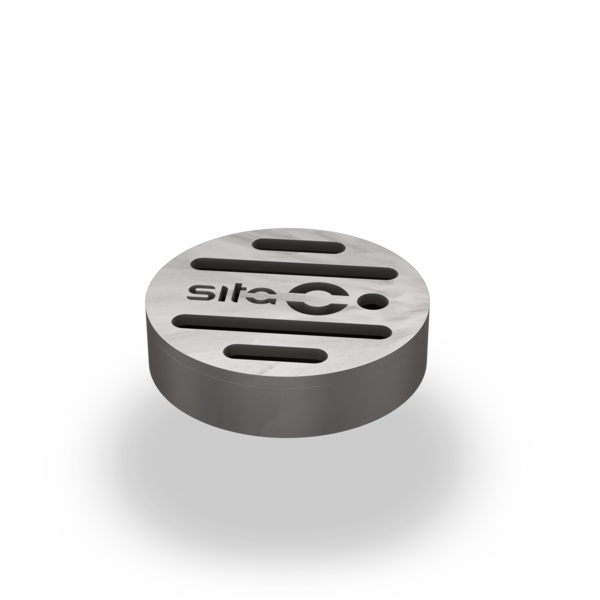

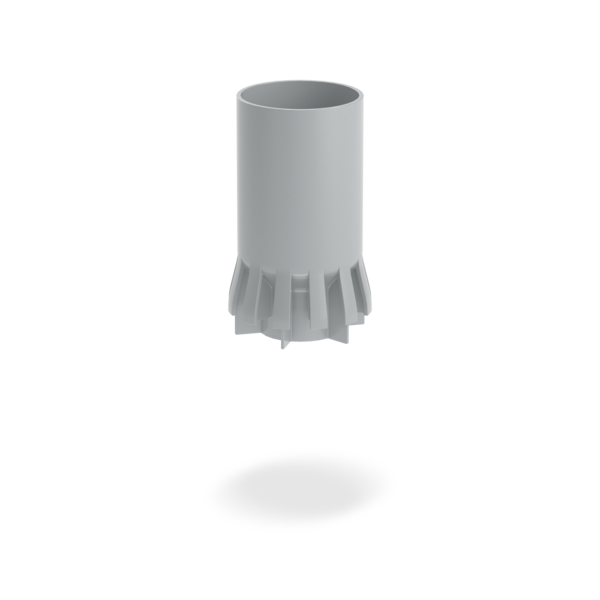

SitaConcrete, balcony outlet for concrete surfaces without waterproofing membrane, made of rust-proof stainless steel, material number 1.4301, size DN 70, discharge rate with end grate 3.4 l/s at 35 mm retaining height, for direct concreting into 140 mm, 160 mm, 180 mm, 200 mm and 220 mm high ceilings, with attached formwork dome, for easy connection of sleeve pipes such as SitaPipe Edelstahl pipe for conventional drainage, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.4 | 0.8 | 1.1 | 1.8 | 2.5 | 3 | 3.4 | 3.6 | 3.7 | 3.8 | 3.9 | 4.2 | 4.4 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |

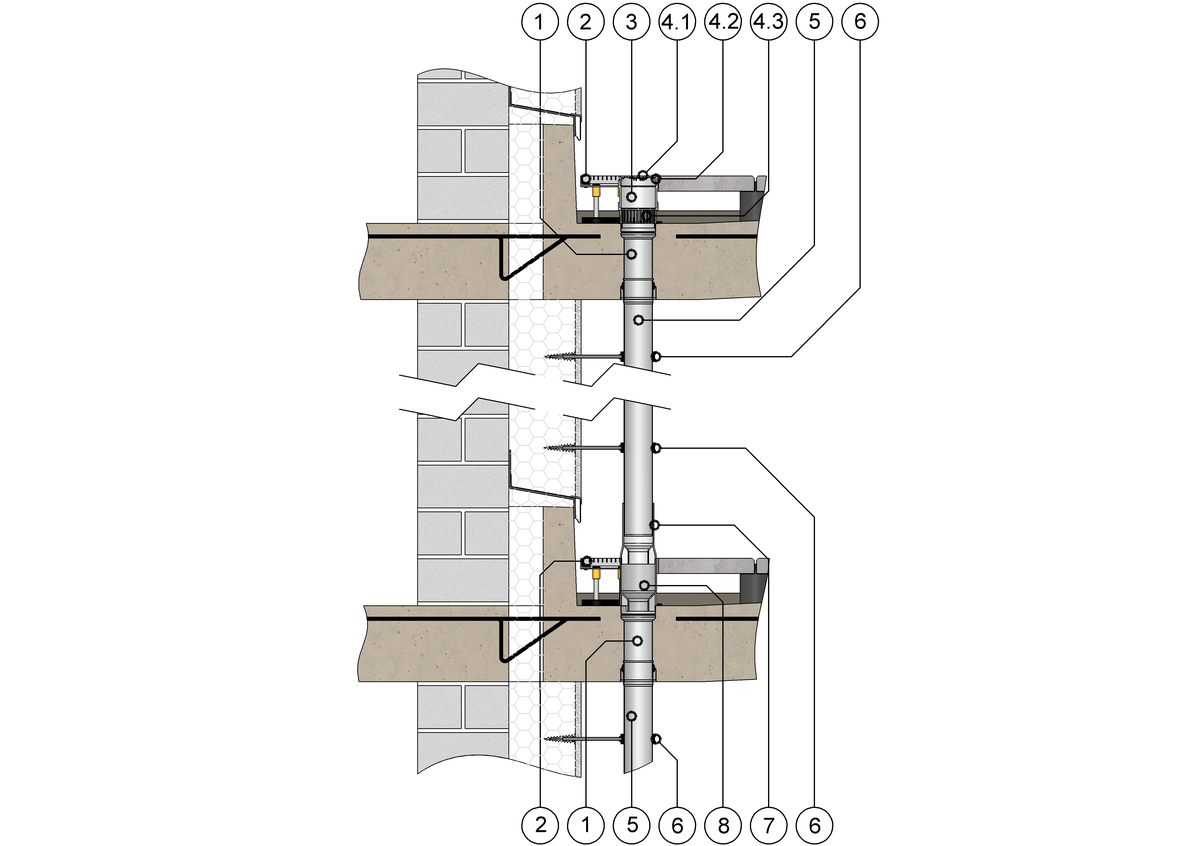

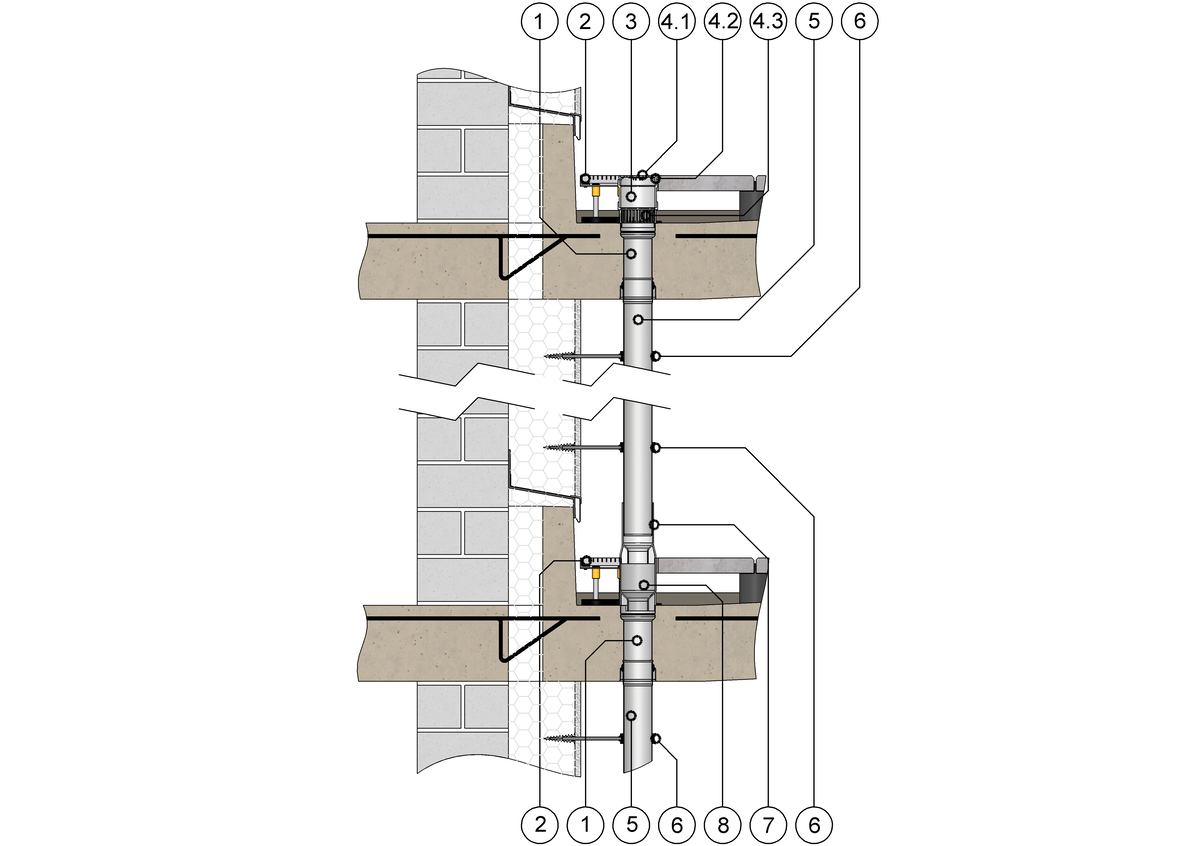

SitaConcrete linear drainage for prefabricated balconies
1 SitaConcrete
2 SitaDrain® Endlos initial piece
3 SitaMore height compensation piece
SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder
8 SitaCompact Fluid height compensation piece
2 SitaDrain® Endlos initial piece
3 SitaMore height compensation piece
SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder
8 SitaCompact Fluid height compensation piece
Roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pads
- Substructure

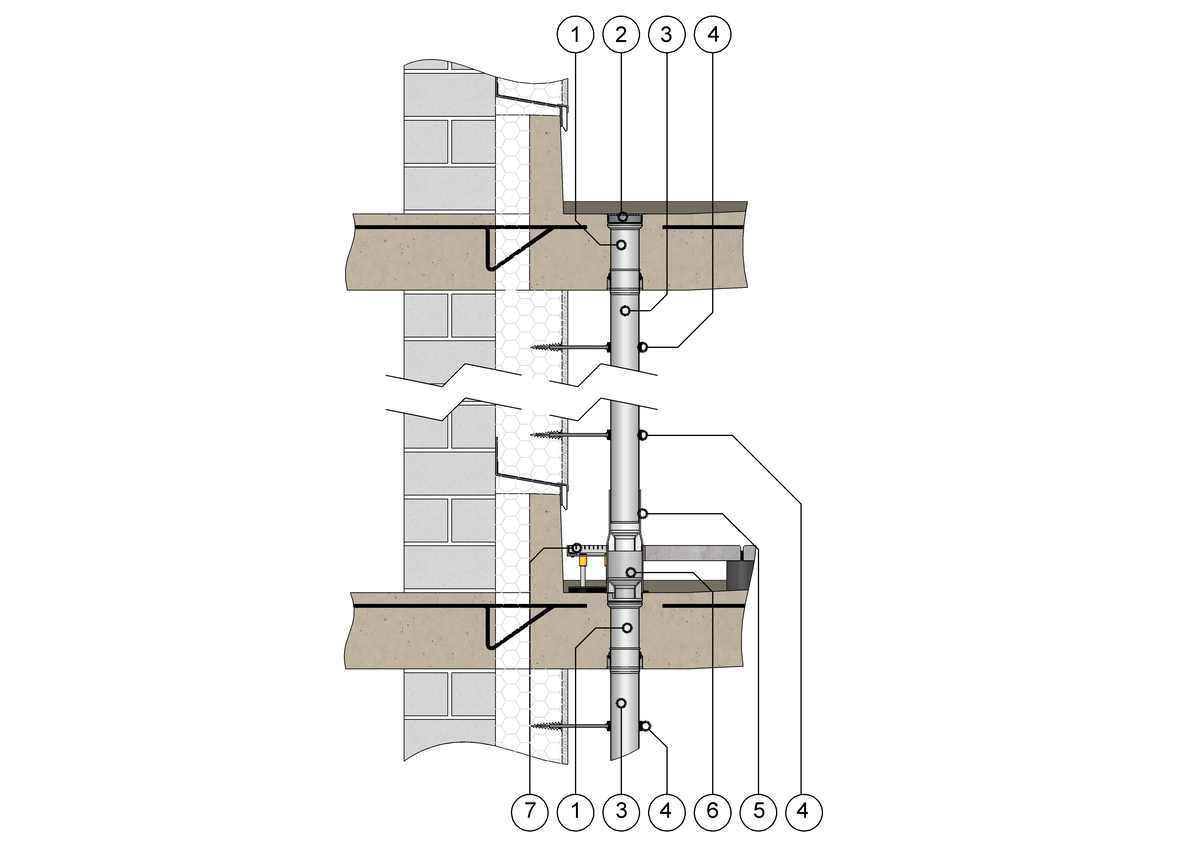

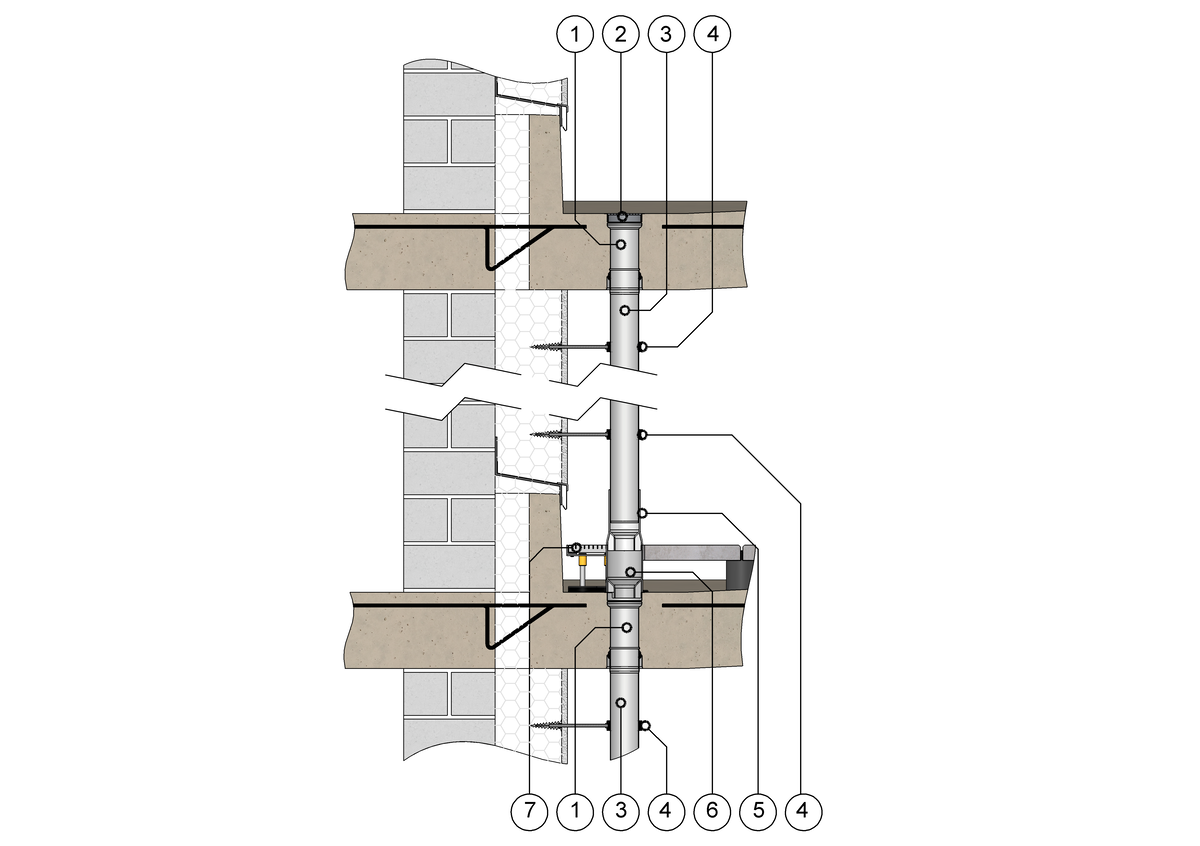

SitaConcrete with end grate linear drainage for prefabricated balconies
1 SitaConcrete
2 SitaConcrete end grate
3 SitaPipe Edelstahl pipe
4 SitaPipe Edelstahl pipe clamp
5 SitaCompact Fluid pipe holder
6 SitaCompact Fluid height compensation piece
7 SitaDrain® Endlos
2 SitaConcrete end grate
3 SitaPipe Edelstahl pipe
4 SitaPipe Edelstahl pipe clamp
5 SitaCompact Fluid pipe holder
6 SitaCompact Fluid height compensation piece
7 SitaDrain® Endlos
Roof structure 1 according to the general rules of engineering with:
Roof structure 2 according to the general rules of engineering with:
- Substructure
Roof structure 2 according to the general rules of engineering with:
- Slab paving on support pads
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_340214_en.pdfPDF TechnischeZeichnung_340216_en.pdf
PDF TechnischeZeichnung_340218_en.pdf
PDF TechnischeZeichnung_340220_en.pdf
PDF TechnischeZeichnung_340222_en.pdf
DWG TZ_DB_SitaConcrete_140mm.DWG
DWG TZ_DB_SitaConcrete_160mm.DWG
DWG TZ_DB_SitaConcrete_180mm.DWG
DWG TZ_DB_SitaConcrete_200mm.DWG
DWG TZ_DB_SitaConcrete_220mm.DWG
| SitaConcrete | Article no. | ||
|---|---|---|---|
| 140 mm | 340214 | Show product | |
| 160 mm | 340216 | Show product | |
| 180 mm | 340218 | Show product | |
| 200 mm | 340220 | Show product | |
| 220 mm | 340222 | Show product |
+
