SitaStandard
Conventional outlet
- Products
SitaStandard
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

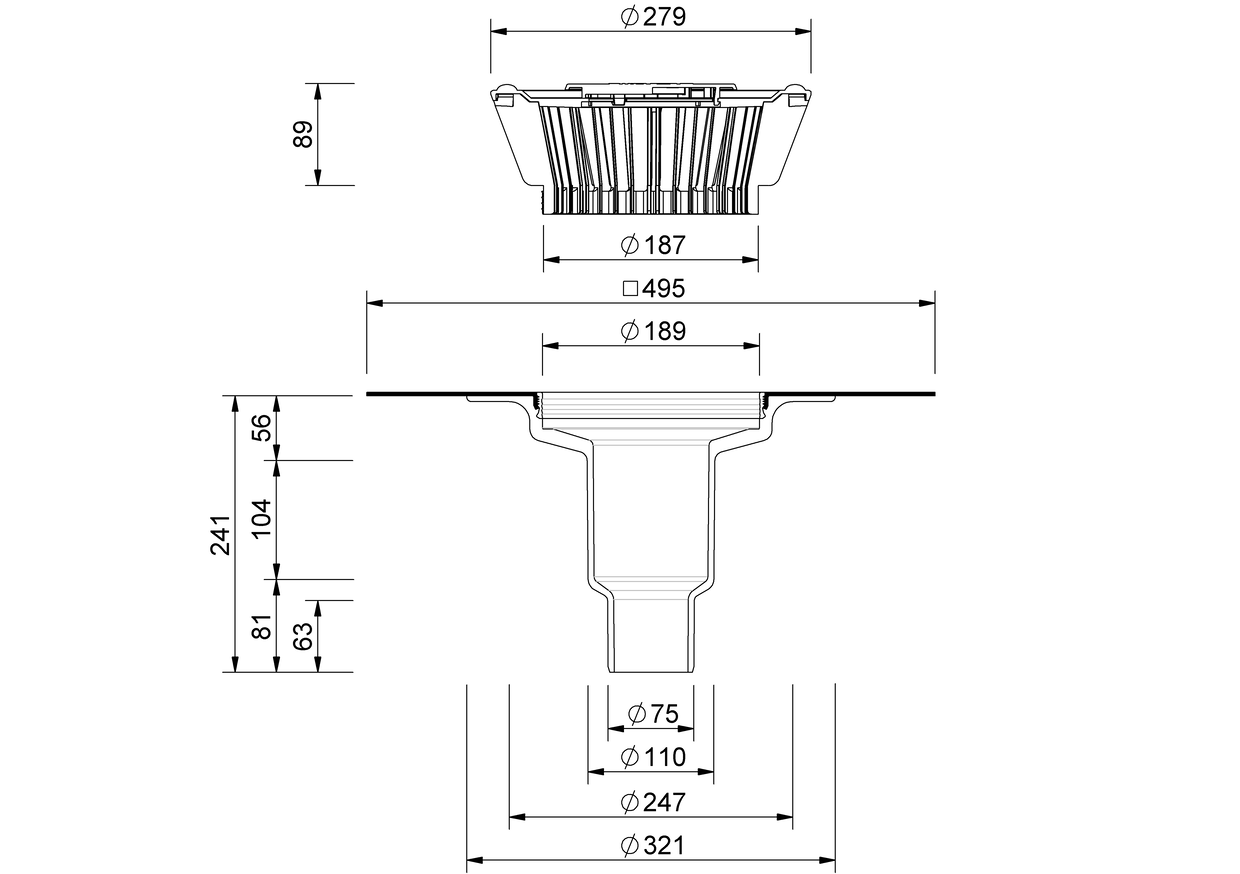

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) |
|---|---|---|
| 70 / 100 | 75 | 250 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection

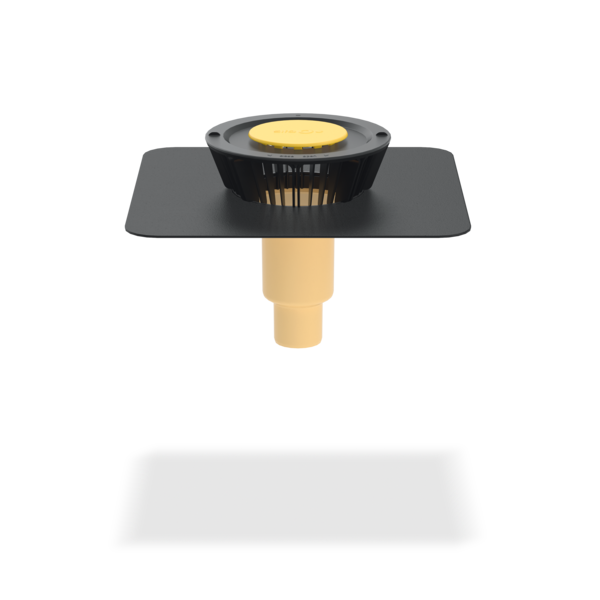

SitaStandard stepped outlet, vertical, made of polyurethane, thermally insulated, to DIN EN 1253-2, in size DN 70 and DN 100. Discharge rate 7.0 l/s and 7.5 l/s at 35 mm retaining height. For direct connection to pipes with plug-in coupler, for conventional drainage, with large foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the supplied dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70/100 | 0.7 | 1.8 | 2.8 | 4 | 5.2 | 6.4 | 7.5 | 8.7 | 9.8 | 11.1 | 12.4 | 13.8 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 | 15.2 |
SitaStandard stepped outlet with SitaStandard extension unit in non-ventilated roof structure
1 SitaStandard stepped outlet with connection sleeve of choice
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Angled sealing ring
3.2 Base body with connection sleeve of choice
SitaGreen green roof shaft consisting of:
4.1 Mesh cover
4.2 Base body
4.3 Height-adjustable rubber-metal buffers
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl pipe
7 SitaAttika cladding cover plate
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Angled sealing ring
3.2 Base body with connection sleeve of choice
SitaGreen green roof shaft consisting of:
4.1 Mesh cover
4.2 Base body
4.3 Height-adjustable rubber-metal buffers
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl pipe
7 SitaAttika cladding cover plate
Non-ventilated roof structure to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Drainage mat
- Protective mat
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
