SitaTrendy
Conventional outlet
- Products
SitaTrendy
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 70 | 75 | 250 mm x 350 mm | 117 | 165 |
| 100 | 110 | 250 mm x 350 mm | 153 | 162 |
| 125 | 125 | 250 mm x 420 mm | 161 | 241 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_151410_en.pdf
PDF TechnischeZeichnung_151600_en.pdf
PDF TechnischeZeichnung_151610_en.pdf
PDF TechnischeZeichnung_151800_en.pdf
PDF TechnischeZeichnung_151810_en.pdf
DWG TZ_DB_SitaTrendy_abgewinkelt_DN100.dwg
DWG TZ_DB_SitaTrendy_abgewinkelt_DN125.dwg
DWG TZ_DB_SitaTrendy_abgewinkelt_DN70.dwg
Article selection

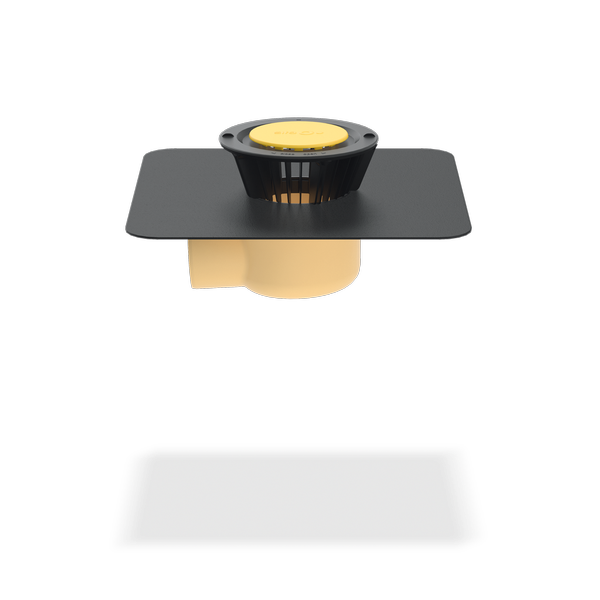

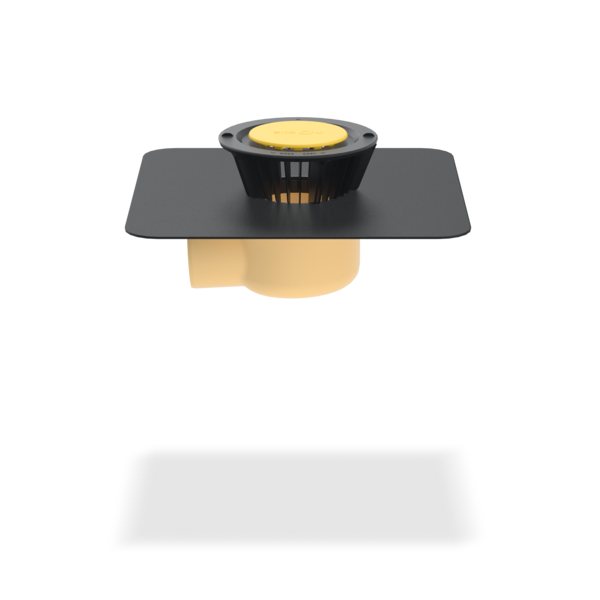

SitaTrendy angled, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 100 and DN 125. For direct connection to pipes with plug-in coupler, for conventional drainage, with large connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the supplied dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1.1 | 1.6 | 2.6 | 3.5 | 4.5 | 5.4 | 6.5 | 7.5 | 8.5 | 9.5 | 10.8 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| 100 | 0.5 | 1.2 | 1.8 | 2.7 | 3.6 | 4.6 | 5.6 | 6.7 | 7.8 | 9 | 10.2 | 11.9 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| 125 | 0.6 | 1.5 | 2.4 | 3.1 | 3.8 | 4.8 | 5.7 | 6.8 | 7.9 | 9.5 | 11 | 12.4 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.2 | 3.1 | 4.6 | 6 | 7.5 | 8.9 | 10.5 | 12 | 12.6 | 13.1 | 13.6 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| 100 | 1.2 | 2.3 | 3.3 | 4.7 | 6 | 7.5 | 9 | 10.5 | 11.9 | 14.5 | 17 | 19.9 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
