SitaTrendy
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

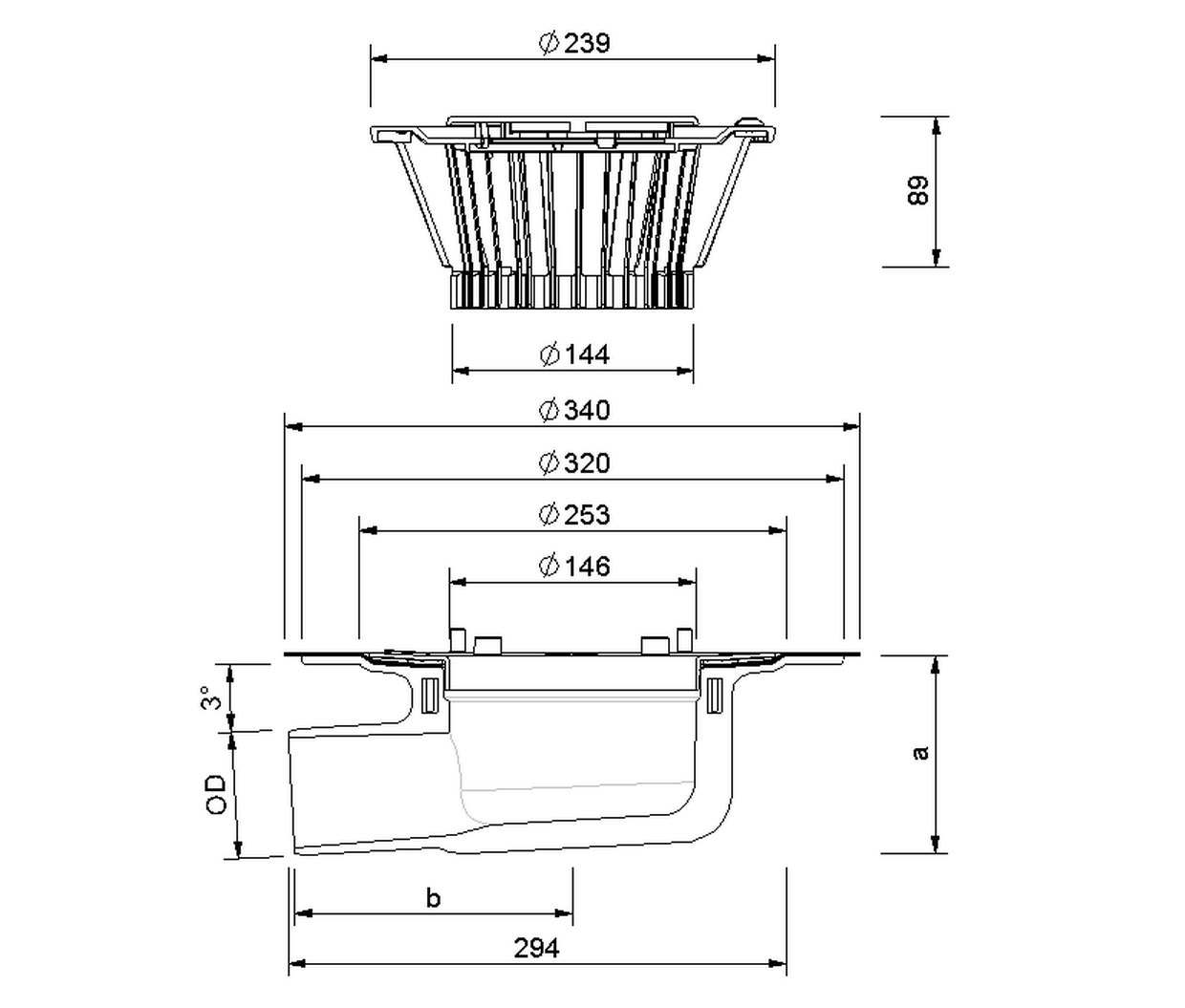

Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 100 | 110 | 250 mm x 350 mm | 153 | 162 |
| 70 | 75 | 250 mm x 350 mm | 117 | 165 |
| 125 | 125 | 250 mm x 420 mm | 161 | 241 |

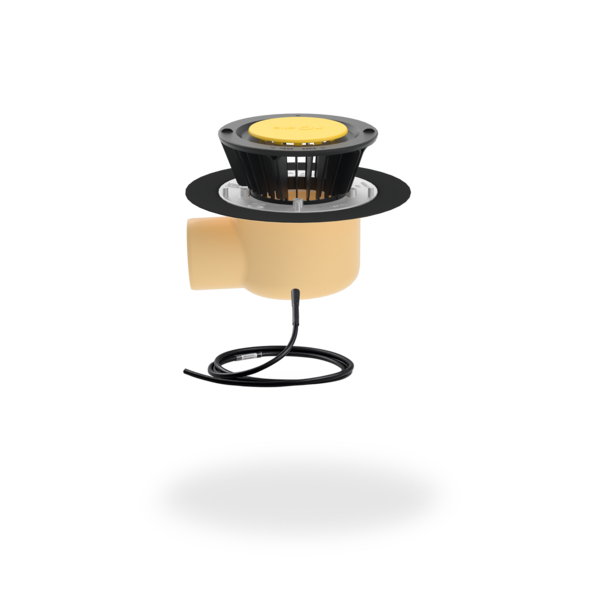

SitaTrendy screw-on flange angled, made of polyurethane, thermally insulated to DIN EN 1253-2, in sizes DN 70, DN 100 and DN 125. For direct connection to pipes with a plug-in coupler, for conventional drainage, with pre-drilled holes for securing the component in the substructure. With foamed-in heating element to EN 60335-1/2 and 2.0 m cable for direct connection to 230 V with a heat rating of approx. 10 W, with foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, complete including dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1.1 | 1.6 | 2.6 | 3.5 | 4.5 | 5.4 | 6.5 | 7.5 | 8.5 | 9.5 | 10.8 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| 100 | 0.5 | 1.2 | 1.8 | 2.7 | 3.6 | 4.6 | 5.6 | 6.7 | 7.8 | 9 | 10.2 | 11.9 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| 125 | 0.6 | 1.5 | 2.4 | 3.1 | 3.8 | 4.8 | 5.7 | 6.8 | 7.9 | 9.5 | 11 | 12.4 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.2 | 3.1 | 4.6 | 6 | 7.5 | 8.9 | 10.5 | 12 | 12.6 | 13.1 | 13.6 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| 100 | 1.2 | 2.3 | 3.3 | 4.7 | 6 | 7.5 | 9 | 10.5 | 11.9 | 14.5 | 17 | 19.9 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |

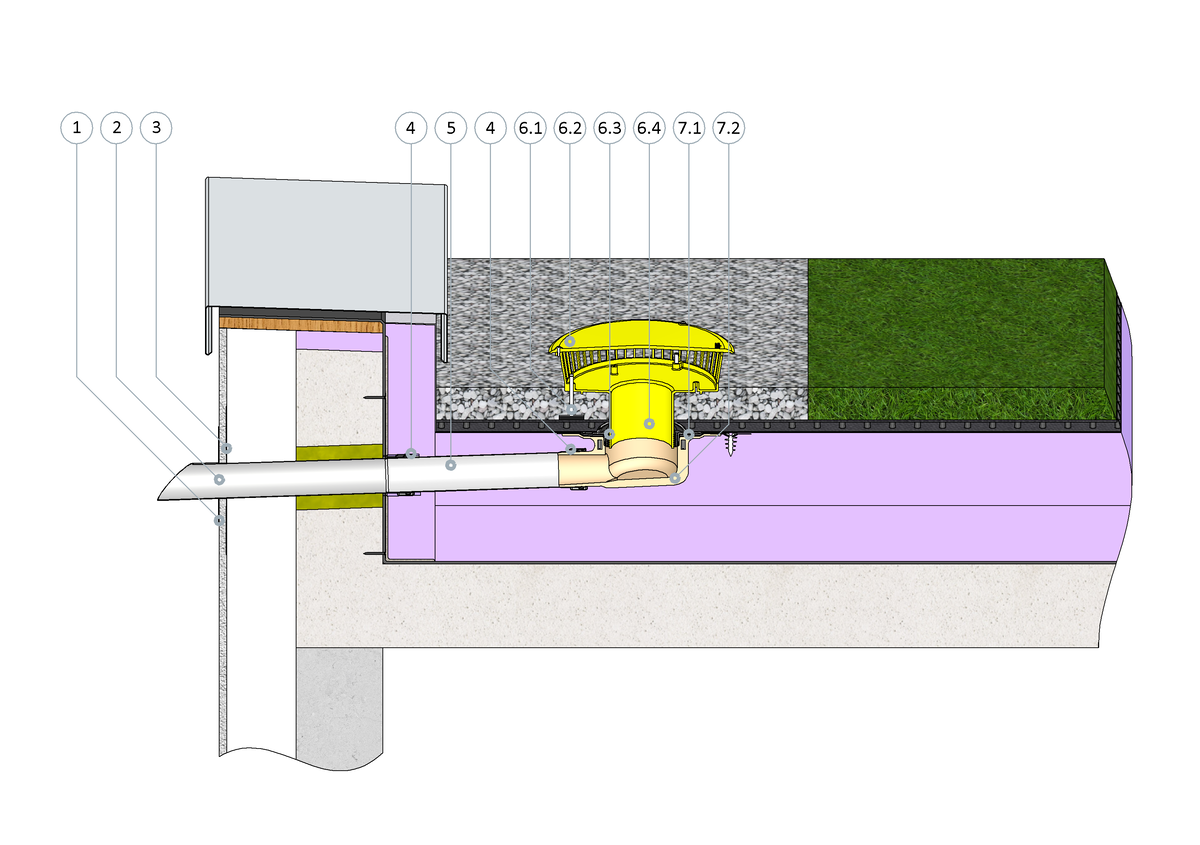

SitaTrendy screw-on flange angled with SitaKaskade lead-through for emergency drainage in an inverted roof
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
- Roof greenery according to system suppler
- Drainage layer
- Filter fabric
- XPS thermal insulation
- Sealing
- Substructure

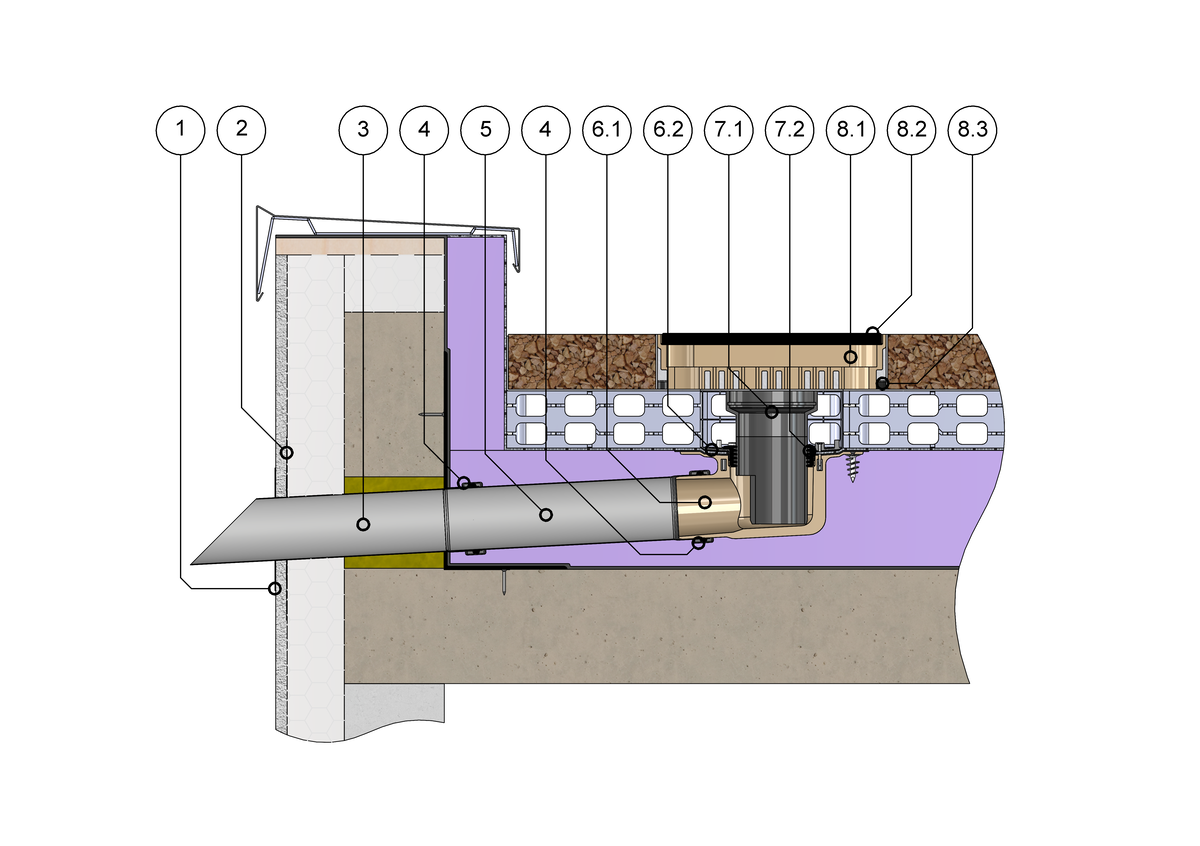

SitaTrendy screw-on flange with SitaTrendy retaining ring and SitaRetention green roof shaft in the inverted roof
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_151599_en.pdfPDF TechnischeZeichnung_151799_en.pdf
PDF TechnischeZeichnung_151999_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN100.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN125.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN70.dwg
| SitaTrendy | Article no. | |||
|---|---|---|---|---|
Screw-on flange angled heated | ||||
| DN 70 | Screw-on flange | 151599 | Show product | |
| DN 100 | Screw-on flange | 151799 | Show product | |
| DN 125 | Screw-on flange | 151999 | Show product |
