SitaTrendy
Conventional outlet
- Products
SitaTrendy
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

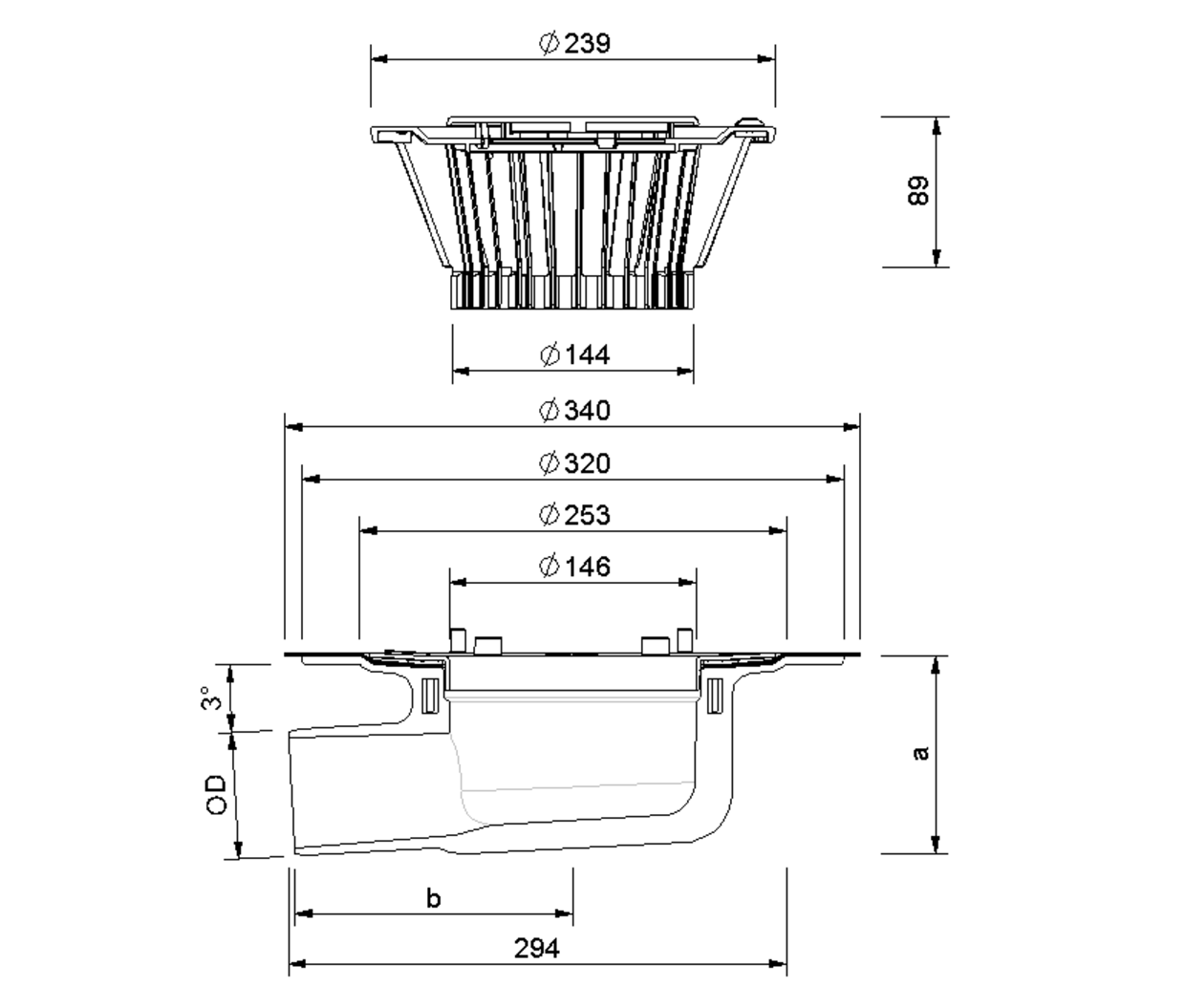

Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 100 | 110 | 250 mm x 350 mm | 153 | 162 |
| 125 | 125 | 250 mm x 420 mm | 161 | 241 |
| 70 | 75 | 250 mm x 350 mm | 117 | 165 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_151699_en.pdf
PDF TechnischeZeichnung_151899_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN100.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN125.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN70.dwg
Article selection

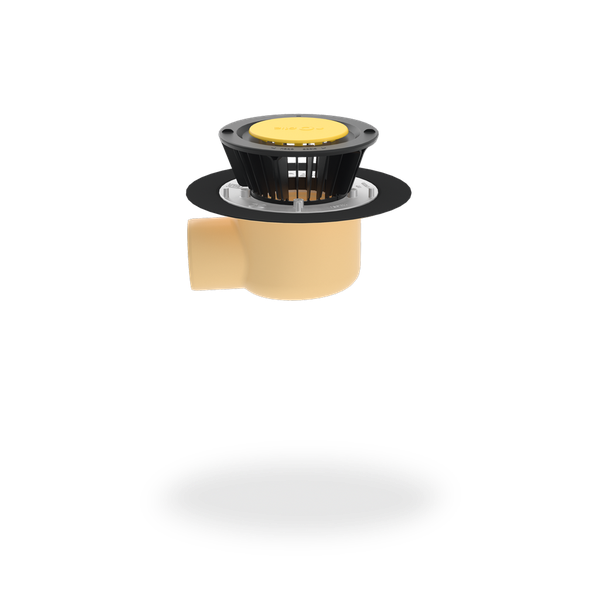

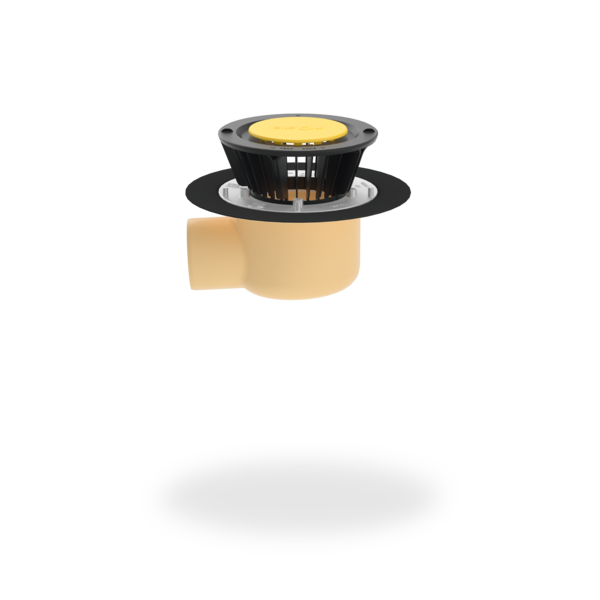

SitaTrendy screw-on flange angled, made of polyurethane, thermally insulated to DIN EN 1253-2, in sizes DN 70, DN 100 and DN 125. For direct connection to pipes with a plug-in coupler, for conventional drainage, with pre-drilled holes for securing the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, complete including dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1.1 | 1.6 | 2.6 | 3.5 | 4.5 | 5.4 | 6.5 | 7.5 | 8.5 | 9.5 | 10.8 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| 100 | 0.5 | 1.2 | 1.8 | 2.7 | 3.6 | 4.6 | 5.6 | 6.7 | 7.8 | 9 | 10.2 | 11.9 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| 125 | 0.6 | 1.5 | 2.4 | 3.1 | 3.8 | 4.8 | 5.7 | 6.8 | 7.9 | 9.5 | 11 | 12.4 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.2 | 3.1 | 4.6 | 6 | 7.5 | 8.9 | 10.5 | 12 | 12.6 | 13.1 | 13.6 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| 100 | 1.2 | 2.3 | 3.3 | 4.7 | 6 | 7.5 | 9 | 10.5 | 11.9 | 14.5 | 17 | 19.9 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
SitaTrendy screw-on flange angled with SitaKaskade lead-through for emergency drainage in an inverted roof
1 SitaAttika cladding cover plate

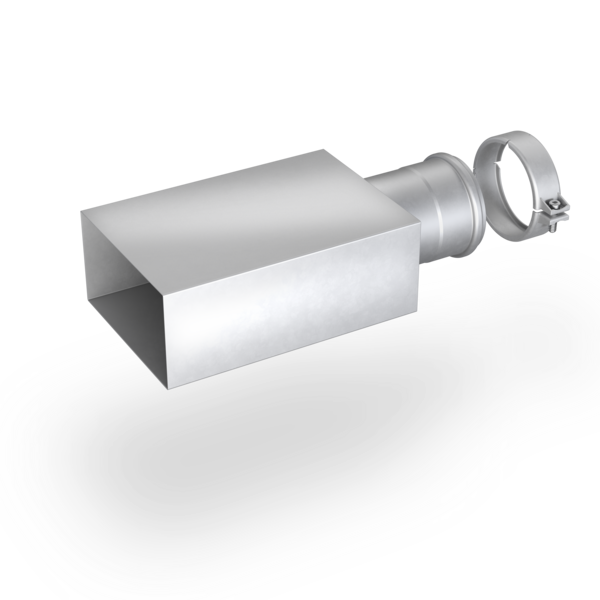

2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system suppler
- Drainage layer
- Filter fabric
- XPS thermal insulation
- Sealing
- Substructure
SitaTrendy screw-on flange with SitaTrendy retaining ring and SitaRetention green roof shaft in the inverted roof
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
Retention inverted roof to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_151499_en.pdfPDF TechnischeZeichnung_151699_en.pdf
PDF TechnischeZeichnung_151899_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN100.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN125.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_DN70.dwg
| SitaTrendy | Article no. | |||
|---|---|---|---|---|
Screw-on flange angled | ||||
| DN 70 | Screw-on flange | 151499 | Show product | |
| DN 100 | Screw-on flange | 151699 | Show product | |
| DN 125 | Screw-on flange | 151899 | Show product |
+
