SitaSteel rechthoekige spuwer
Afvoerkolk doorheen de dakopstand
- Producten
-
SitaSteel rechthoekige spuwer
-
Afvoerkolk doorheen de dakopstand

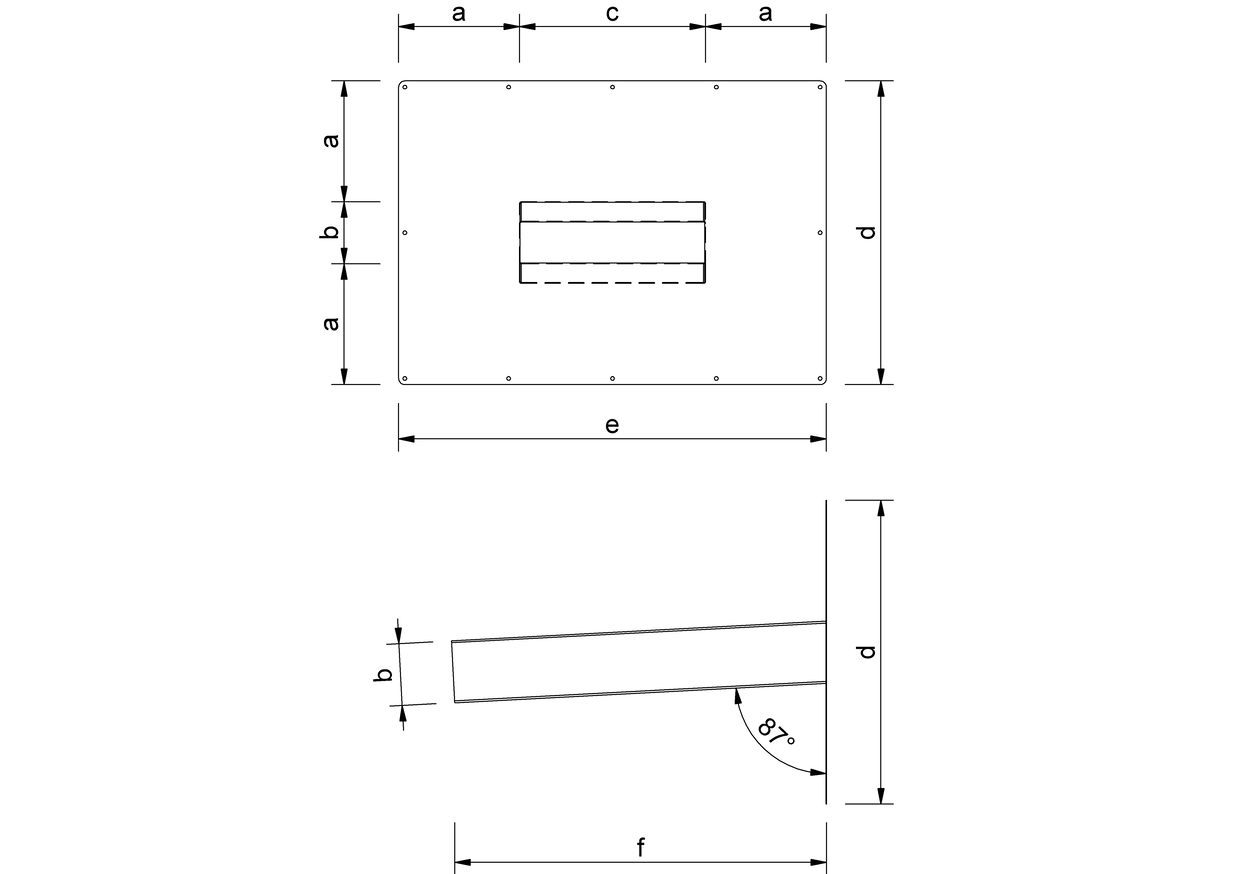

Aansluitdiameter (mm x mm) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
---|---|---|---|---|---|
150 x 50 | 150 | 50 | 150 | 350 | 450 |
300 x 100 | 150 | 100 | 300 | 400 | 600 |
500 x 100 | 150 | 100 | 500 | 400 | 800 |
Prestatiebeschrijving
Afvoercapaciteit
Installatievoorbeelden
MultiCAD und BIM-Daten
Artikelselectie

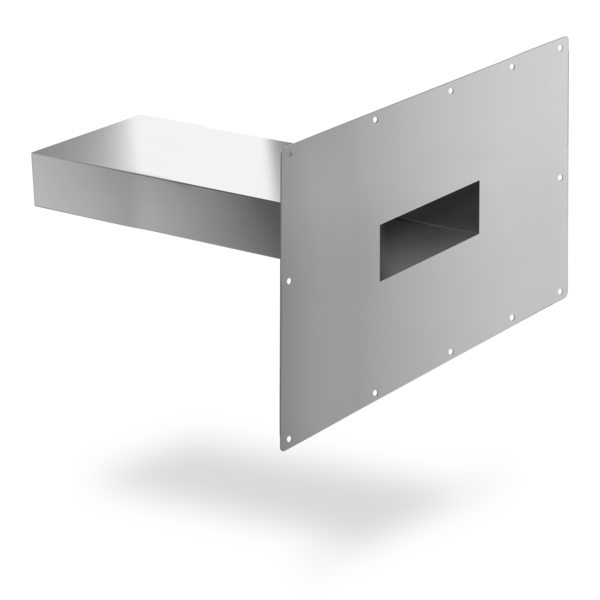

SitaSteel rechthoekige spuwer Fluid, uit roestvrij staal (materiaalnummer 1.4401 voor verbindingspijpstuk en 1.4301 voor flens). Afmetingen 150 mm x 50 mm, 300 mm x 100 mm en 500 mm x 100 mm, met een aansluitlengte van 600 mm en ingebouwde helling van 3 graden. Voor vloeibare kunststofafdichtingen met 150 mm brede flens rondom. Flens met voorgeboorde gaten voor bevestiging in dakopstand. Leveren en plaatsen volgens de regels der kunst.
Afvoercapaciteit conform NBN EN 1253-2 in l/s
Waterstand (mm)
150 x 50
0,1
0,2
0,3
0,5
0,7
1,1
1,4
1,9
2,3
2,7
2,9
3,2
3,5
300 x 100
0,3
0,6
0,9
1,5
2
2,6
3,2
3,9
4,6
5,8
6,3
6,9
7,7
500 x 100
0,5
0,9
1,4
2,4
3,4
4,5
5,5
6,7
7,8
9,6
10,5
11,5
12,8

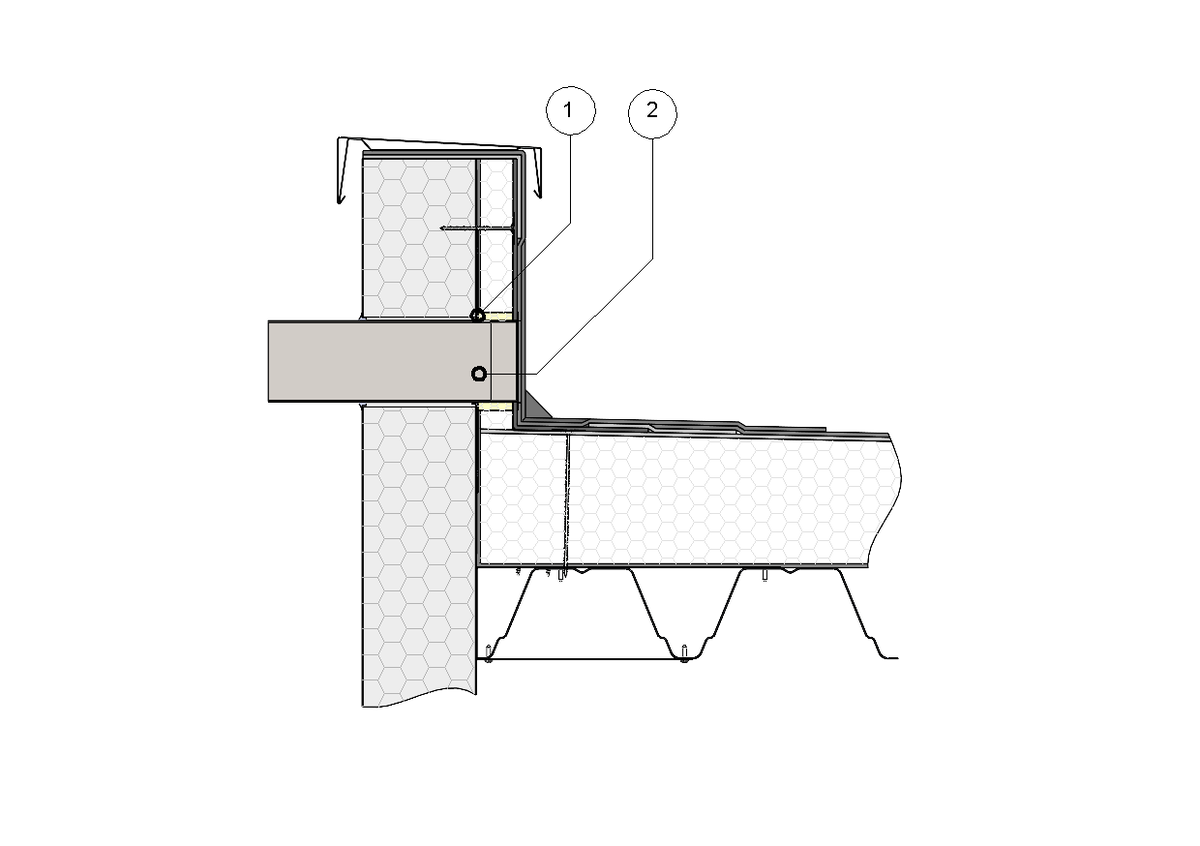

SitaSteel rechthoekige spuwer voor ongeventileerde dakconstructies
1 SitaSteel rechthoekige spuwer
Ongeventileerde dakopbouw conform algemeen erkende vaktechnische regels, met:
- Afdichting
- Thermische isolatie
- Dampscherm
- Onderconstructie
- Opening in de dakopstand met voegband
In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
SitaSteel rechthoekige spuwer | Artikelnummer | |||
---|---|---|---|---|
Fluid |
||||
Kleefflens-Slabbe | 150 x 50 | 30101090 | Product tonen | |
Kleefflens-Slabbe | 300 x 100 | 30101190 | Product tonen | |
Kleefflens-Slabbe | 500 x 100 | 30101290 | Product tonen |
+
