Parapet outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

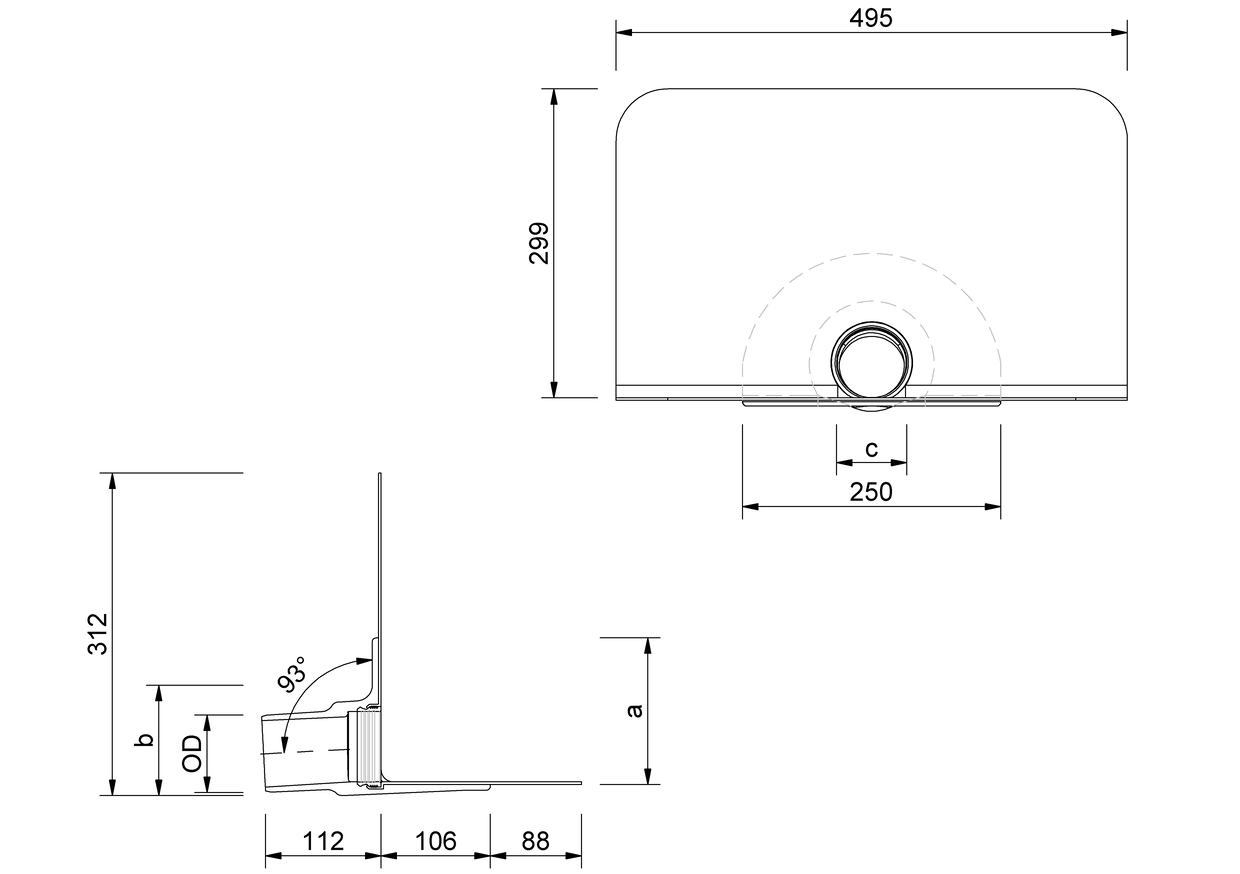

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) | c (mm) |
|---|---|---|---|---|---|
| 70 | 75 | 135 | 142 | 107 | 68 |
| 50 | 50 | 110 | 142 | 107 | 68 |
| 100 | 110 | 170 | 180 | 147 | 108 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Discharge rate according to DIN EN 1253-2 with 4-metre downpipe in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_183010_en.pdf
PDF TechnischeZeichnung_183200_en.pdf
PDF TechnischeZeichnung_183210_en.pdf
PDF TechnischeZeichnung_183400_en.pdf
PDF TechnischeZeichnung_183410_en.pdf
DWG TZ_DB_SitaEasy_DN100.DWG
DWG TZ_DB_SitaEasy_DN50.DWG
DWG TZ_DB_SitaEasy_DN70.DWG
Article selection

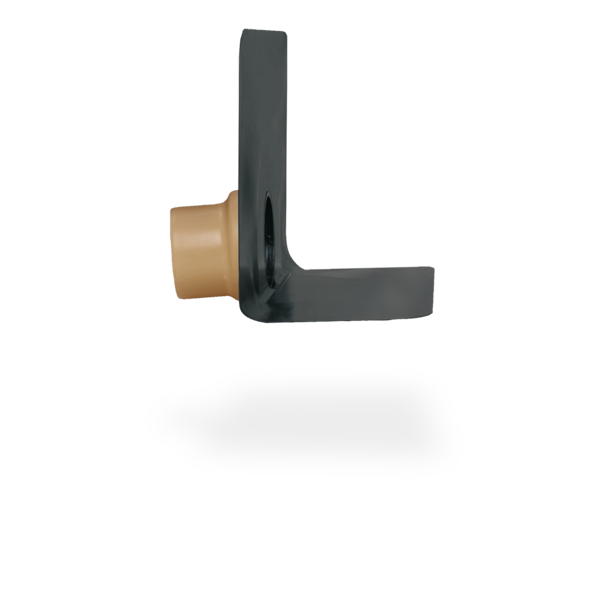

SitaEasy parapet outlet, made of polyurethane, thermally insulated, in sizes DN 50, DN 70 and DN 100. For direct connection of pipes with plug-in coupler, for conventional drainage, with large foamed-in connection sleeve of choice (495 mm x 495 mm). With fixing ring for addition securing of the connection sleeve and to hold a dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 50 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 0.8 | 0.8 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| 70 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.1 | 1.2 | 1.4 | 1.6 | 1.7 | 1.9 | 2 | 2 | 2 | 2 | 2 |
| 100 | 0.1 | 0.2 | 0.3 | 0.4 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.9 | 2.2 | 2.4 | 2.7 | 2.9 | 3.3 | 3.6 | 4 | 4.3 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 50 | 0.1 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1.1 | 1.1 | 1.1 | 1.2 | 1.2 |
| 70 | 0.1 | 0.1 | 0.2 | 0.2 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1 | 1.1 | 1.2 | 1.2 | 1.3 | 1.3 | 1.4 | 1.4 | 1.4 |
| 100 | 0.1 | 0.1 | 0.2 | 0.2 | 0.4 | 0.6 | 0.7 | 0.9 | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.6 | 2.9 | 2.9 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.1 | 1.2 | 1.4 | 1.6 | 1.7 | 1.9 | 2 | 2 | 2 | 2 | 2 |
| 50 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 0.8 | 0.8 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| 100 | 0.1 | 0.2 | 0.3 | 0.4 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.9 | 2.2 | 2.4 | 2.7 | 2.9 | 3.3 | 3.6 | 4 | 4.3 |
SitaEasy and SitaEasy retaining element with SitaDrain® profile frame in a non-ventilated roof structure with slab paving on support pads

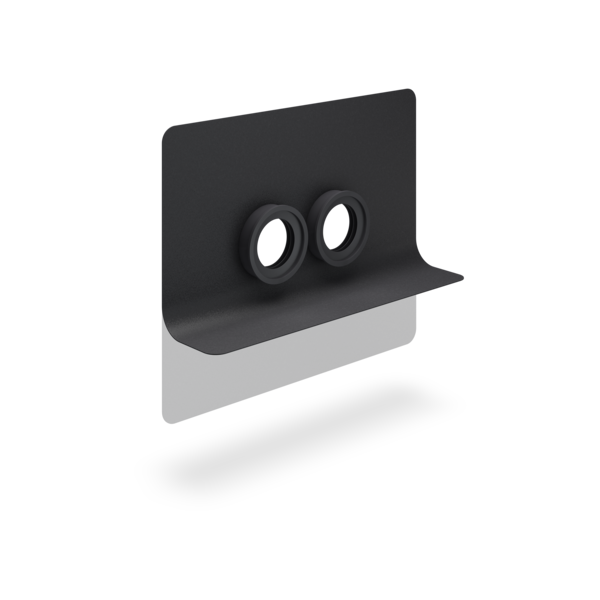

1 SitaAttika cladding cover plate
2 SitaPipe Edelstahl pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy

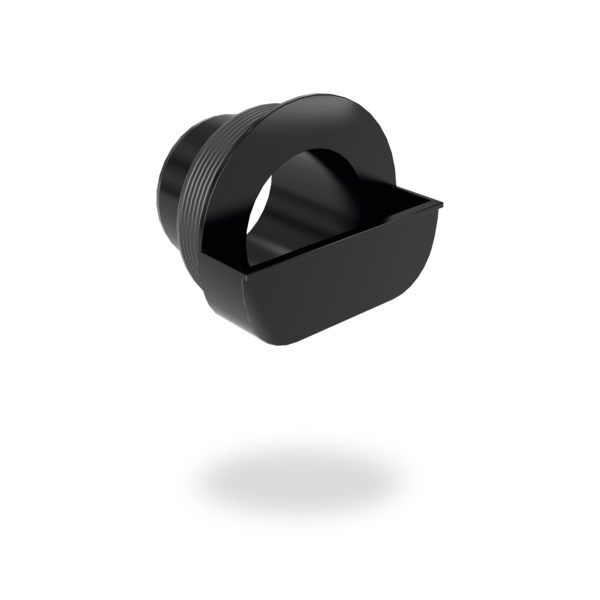

SitaEasy retaining element consisting of:
6.1 Seal
6.2 Retaining element base body
SitaDrain® profile frame consisting of:
7.1 Inspection grate
7.2 Profile frame
2 SitaPipe Edelstahl pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy
SitaEasy retaining element consisting of:
6.1 Seal
6.2 Retaining element base body
SitaDrain® profile frame consisting of:
7.1 Inspection grate
7.2 Profile frame
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pads
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaEasy in the form of a waterspout in a non-ventilated roof structure with slab paving
1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
Non-ventilated roof structure with slab paving on support pad to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet opening with joint tape
SitaDrain profile frame with SitaEasy for main drainage in an inverted roof
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve for WDVS
7 SitaEasy
8 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
9.1 Profile frame
9.2 Inspection grate
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve for WDVS
7 SitaEasy
8 SitaDrain® gravel strip
SitaDrain® profile frame consisting of:
9.1 Profile frame
9.2 Inspection grate
Inverted roof structure to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Filter fabric
- Drainage mat
- XPS thermal insulation
- Protective mat
- Waterproof membrane
- Substructure
