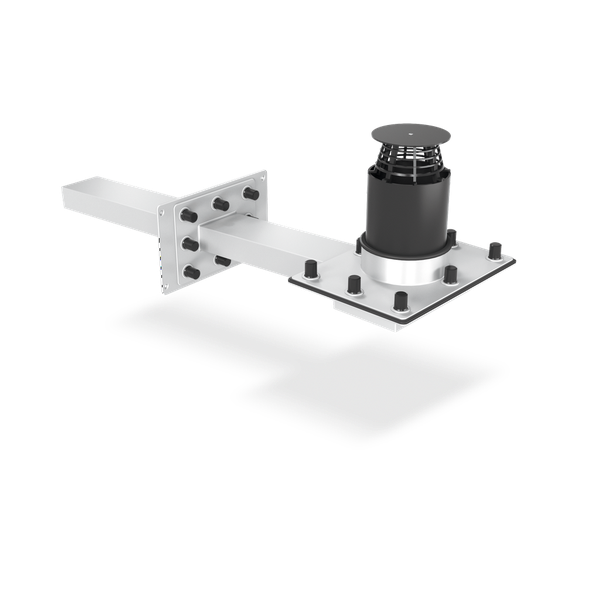

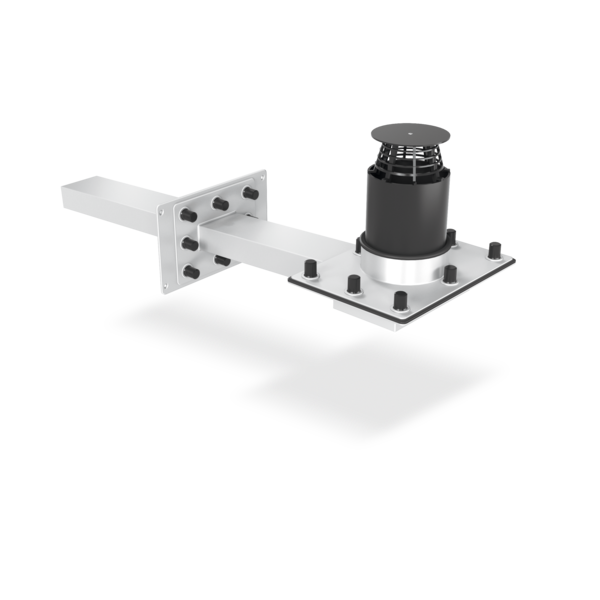

SitaTurbo
Max inverted roof with retaining ring
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Increased discharge capacity

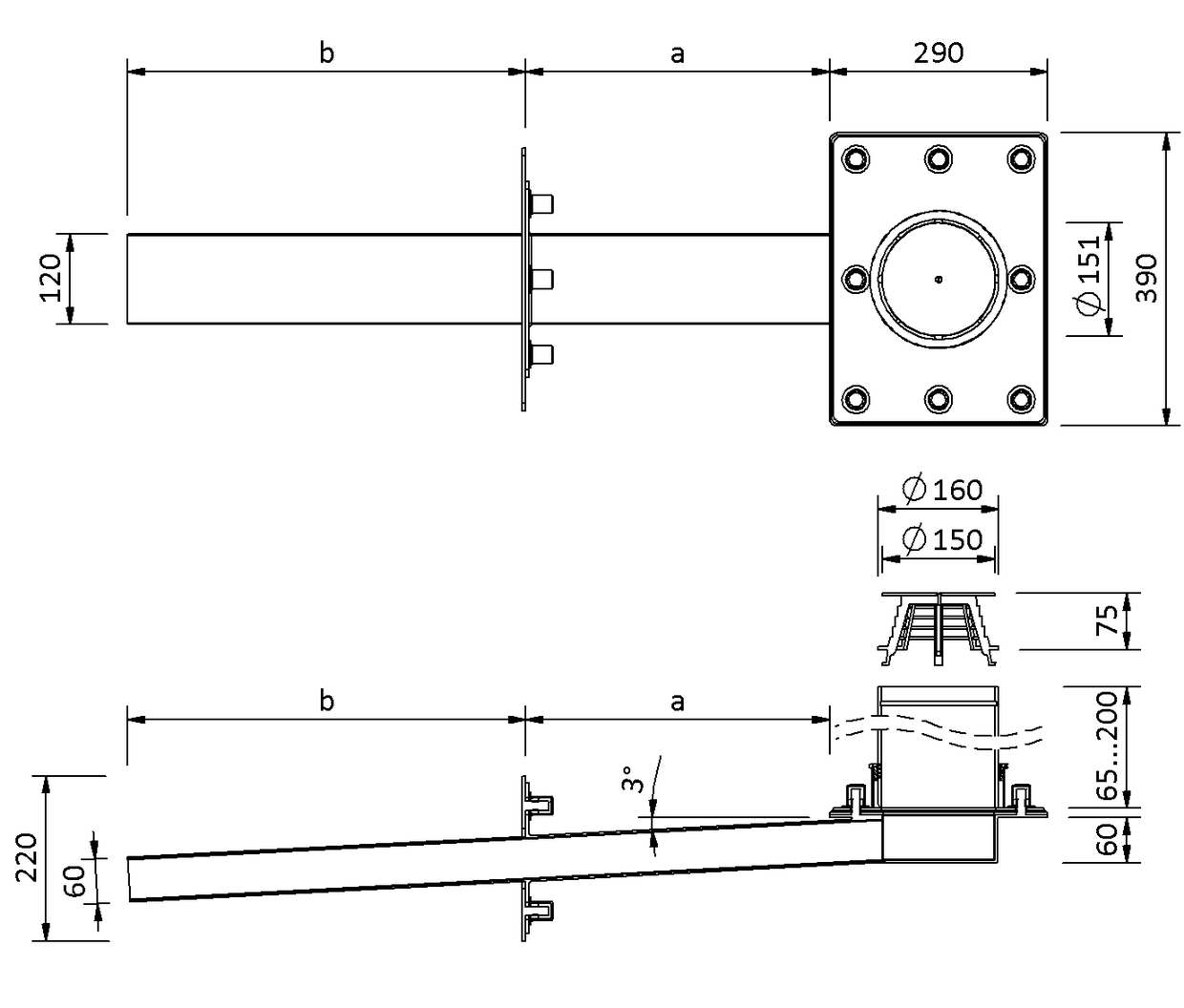

Technical drawing
| Opening/Core borehole (mm) | Pipe cross-section (mm x mm) | A | B |
|---|---|---|---|
| 170 | 120 x 60 | Distance to the parapet | Parapet width plus overhang |
| 170 | 120 x 60 | 450 mm | 700 mm |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
Downloads
Article selection
SitaTurbo Max inverted roof with retaining ring, made of rust-proof stainless steel, material no. 1.4301, according to DIN EN 1253-2, discharge rate as waterspout 8.8 l/s at 65 mm retaining height with a 200 mm PE-HD retaining ring that can be shortened on site, with 55 mm loose retaining flange and two sealing sleeves for clamping the protective fleece and with a flange plate welded to the rectangular pipe for clamping bitumen, plastic or EPDM roofing membranes with sealing sleeves, threaded pins, washers, M12 nuts, protective caps and dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe cross-section (mm x mm) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 120 x 60 | 0.7 | 1.4 | 2.3 | 3 | 4 | 5 | 6.3 | 7.1 | 7.7 | 8.1 | 8.3 | 8.5 | 8.8 | 9 | 9.2 | 9.3 | 9.5 | 9.7 | 9.9 | 10 |

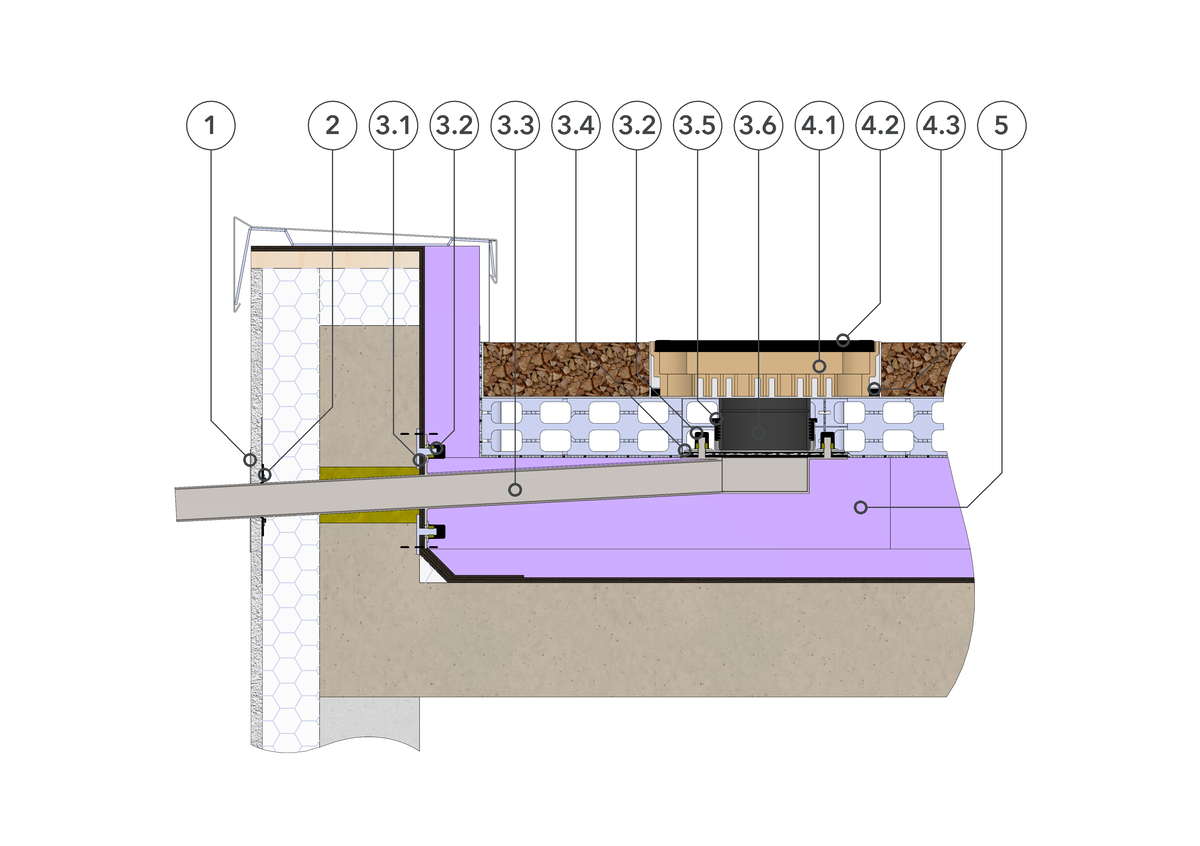

SitaTurbo Max inverted roof with retaining ring for emergency drainage

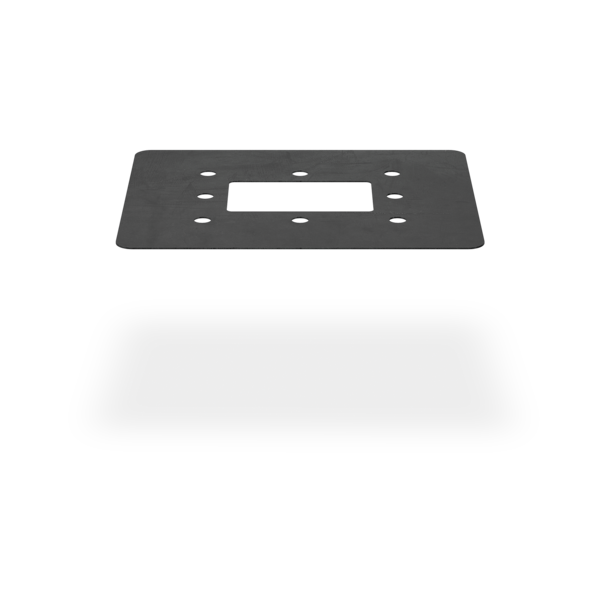

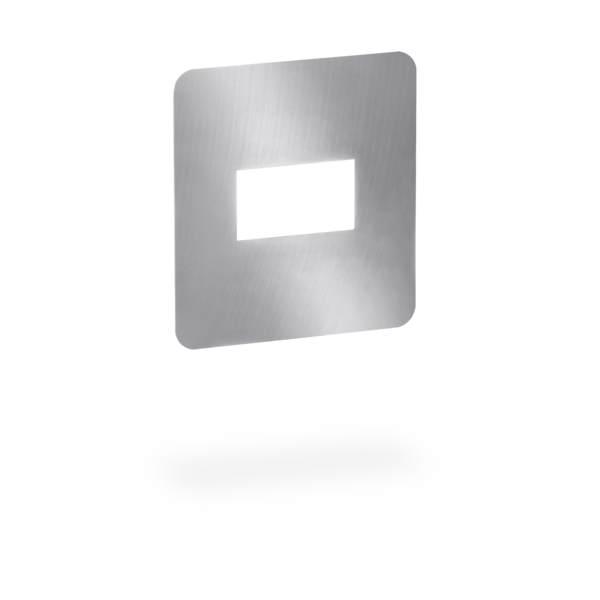

1 SitaTurbo cladding cover plate
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 PE retaining ring
2.6 Dome grate
3 Dome grate cover plate
4 SitaTurbo insulating body XPS for inverted roof
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 PE retaining ring
2.6 Dome grate
3 Dome grate cover plate
4 SitaTurbo insulating body XPS for inverted roof
Inverted roof structure to the general rules of engineering with:
- Gravel
- Roofing fabric
- Thermal insulation
- Sealing
- Substructure
- Parapet lead-through with joint tape

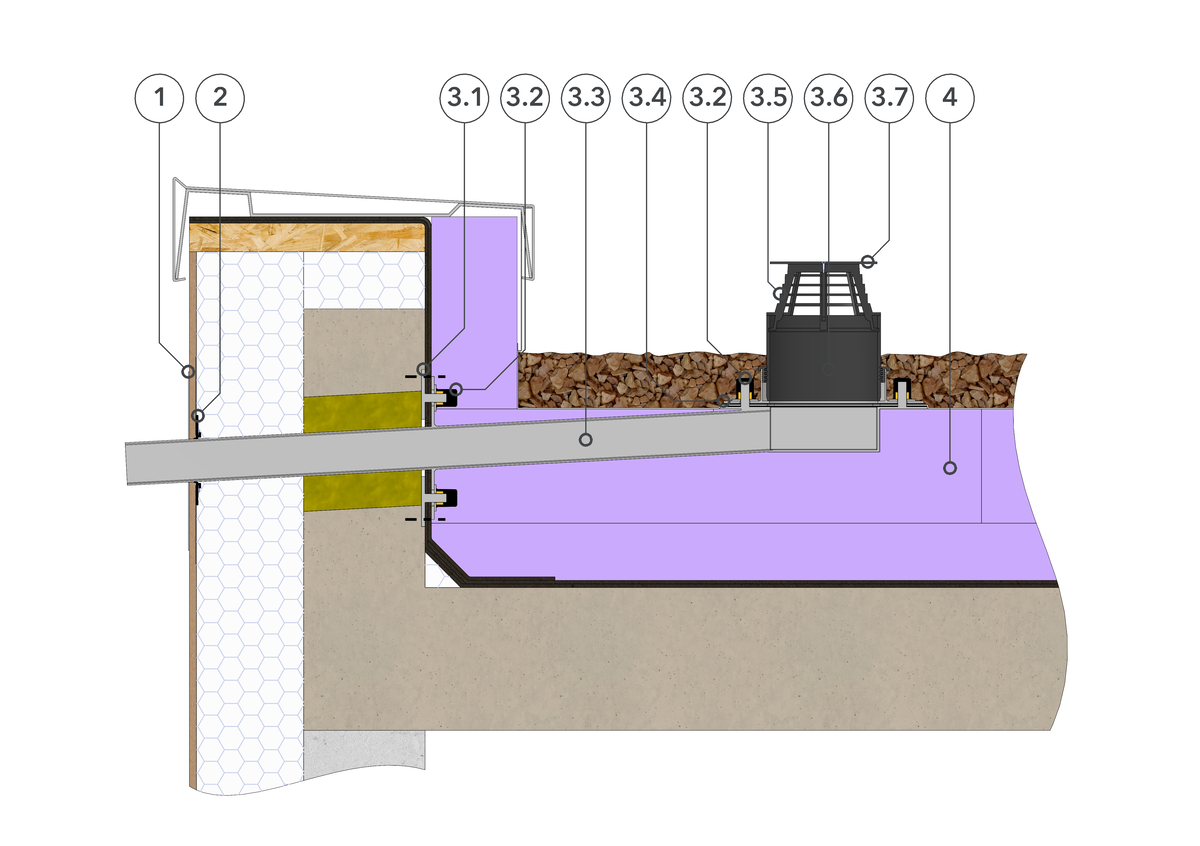

SitaTurbo Max inverted roof with SitaTurbo insulating body and SitaRetention green roof shaft in the inverted roof

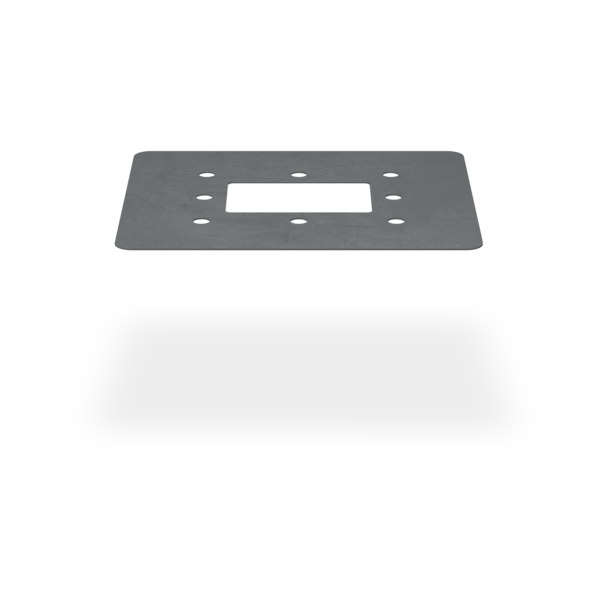

1 SitaTurbo cladding cover plate
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 Base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Sealing ring
2.6 PE retaining ring
SitaRetention green roof shaft consisting of:
3.1 Base body
3.2 Closed cover
3.3 Rubber-metal buffers

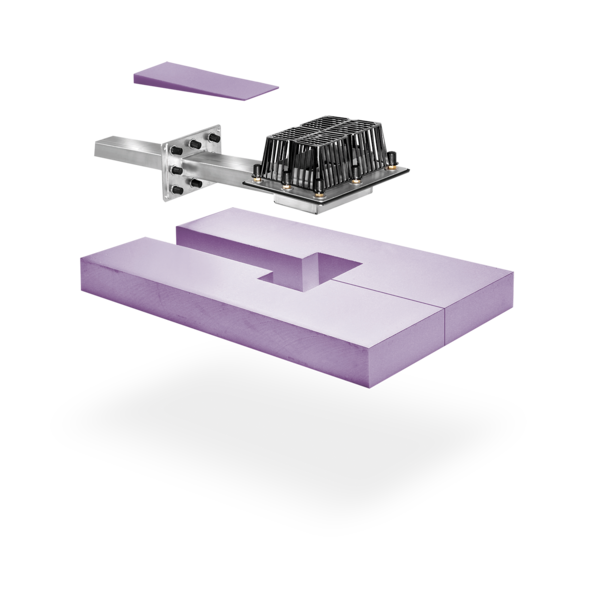

4 SitaTurbo insulating body XPS
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 Base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Sealing ring
2.6 PE retaining ring
SitaRetention green roof shaft consisting of:
3.1 Base body
3.2 Closed cover
3.3 Rubber-metal buffers
4 SitaTurbo insulating body XPS
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
| SitaTurbo | Article no. | ||
|---|---|---|---|
Max inverted roof with retaining ring | |||
| Customised design | 18216599 | Show product | |
| A=450 mm / B=700 mm | 18276599 | Show product |
+
