SitaStandard
Conventional outlet
- Products
SitaStandard
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 125 | 125 | 250 x 430 mm | 149 | 298 |
| 100 | 110 | 250 x 350 mm | 145 | 222 |
| 70 | 75 | 250 x 350 mm | 122 | 224 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_101410_en.pdf
PDF TechnischeZeichnung_101600_en.pdf
PDF TechnischeZeichnung_101610_en.pdf
PDF TechnischeZeichnung_101800_en.pdf
PDF TechnischeZeichnung_101810_en.pdf
DWG TZ_DB_SitaStandard_abgewinkelt_DN100.dwg
DWG TZ_DB_SitaStandard_abgewinkelt_DN125.DWG
DWG TZ_DB_SitaStandard_abgewinkelt_DN70.dwg
Article selection

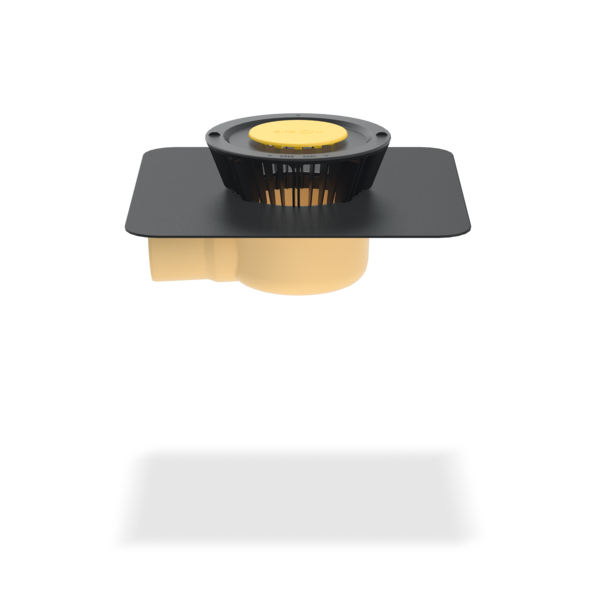

SitaStandard angled, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 100 and DN 125. For direct connection to pipes with plug-in coupler, for conventional drainage, with large foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane and with fixing ring for additional securing of the connection sleeve and to hold the supplied dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.7 | 1.8 | 2.8 | 3.8 | 4.7 | 5.8 | 6.9 | 7.9 | 8.9 | 10.2 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
| 100 | 0.5 | 1.5 | 2.4 | 3.4 | 4.3 | 5.3 | 6.3 | 7.5 | 8.6 | 9.8 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| 125 | 0.8 | 1.9 | 2.9 | 4.1 | 5.3 | 6.3 | 7.3 | 8.4 | 9.4 | 10.8 | 12.1 | 13.2 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.3 | 3.3 | 4.8 | 6.2 | 7.8 | 9.4 | 11.3 | 13.1 | 14.2 | 15.3 | 15.4 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 |
| 100 | 1.2 | 2.3 | 3.4 | 4.9 | 6.3 | 8.1 | 9.8 | 11.8 | 13.8 | 16.5 | 19.1 | 22.9 | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 |
| 125 | 1.2 | 2.3 | 3.3 | 4.8 | 6.2 | 7.6 | 8.9 | 10.3 | 11.6 | 12.1 | 12.6 | 12.8 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 |
SitaStandard angled, in a ventilated roof structure
1 SitaPipe Edelstahl pipe clamp
2 SitaPipe Edelstahl pipe
3 SitaPipe Edelstahl bend
SitaStandard angled, consisting of:
4.1 Base body with connection sleeve of choice
4.2 Dome grate base body
4.3 Dome grate cover
2 SitaPipe Edelstahl pipe
3 SitaPipe Edelstahl bend
SitaStandard angled, consisting of:
4.1 Base body with connection sleeve of choice
4.2 Dome grate base body
4.3 Dome grate cover
Ventilated roof structure to the general rules of engineering with:
- Sealing
- Formwork
- Supporting structure
SitaStandard angled as emergency drainage in a non-ventilated roof structure
1 SitaPipe Stainless steel pipe
2 SitaAttika cladding cover plate
3 SitaMore sealing sleeve for WDVS
4 SitaMore flexible vapour barrier

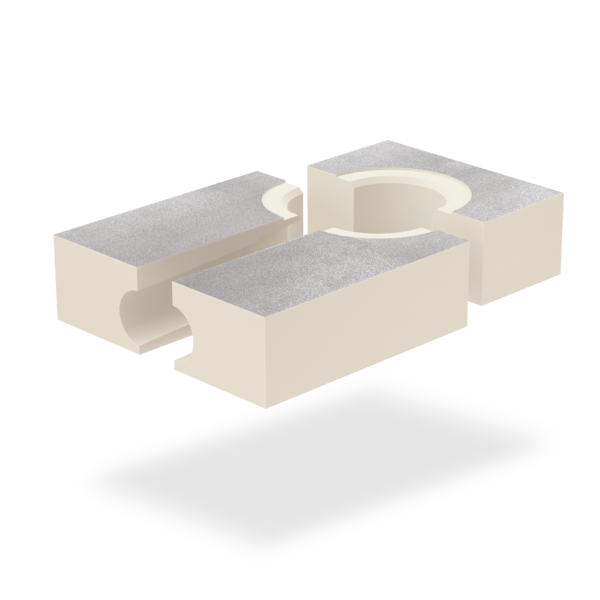

5 SitaStandard angled insulating block
6 SitaPipe Stainless steel retention clamp
7 SitaStandard angled
SitaMore retaining element consisting of:
8.1 Cover
8.2 Base body
8.3 Sealing ring
8.4 Height-adjustable rubber-metal buffers
2 SitaAttika cladding cover plate
3 SitaMore sealing sleeve for WDVS
4 SitaMore flexible vapour barrier
5 SitaStandard angled insulating block
6 SitaPipe Stainless steel retention clamp
7 SitaStandard angled
SitaMore retaining element consisting of:
8.1 Cover
8.2 Base body
8.3 Sealing ring
8.4 Height-adjustable rubber-metal buffers
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaStandard angled with insulating block, raised installation in a green roof structure
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve
3 SitaMore vapour barrier panel
4 SitaStandard angled insulating block
5 SitaPipe Stainless steel pipe
6 SitaPipe Stainless steel retention clamp
7 SitaStandard angled
SitaMore retaining element consisting of:
8.1 Base body
8.2 Sealing ring
8.3 Closed cover
8.4 Rubber-metal buffers
2 SitaMore sealing sleeve
3 SitaMore vapour barrier panel
4 SitaStandard angled insulating block
5 SitaPipe Stainless steel pipe
6 SitaPipe Stainless steel retention clamp
7 SitaStandard angled
SitaMore retaining element consisting of:
8.1 Base body
8.2 Sealing ring
8.3 Closed cover
8.4 Rubber-metal buffers
Extensively greened roof in a non-ventilated roof structure to the aaRdT:
- Extensive green roof system, as supplied by the system provider
- Waterproofing
- Thermal insulation
- Vapour barrier
