SitaTrendy

Conventional outlet

Foto_S_SitaTrendy_Schraubflansch_senkrecht_ohne_Kiesfang.tif

Attributes

Thermally insulated
Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)	a (mm)	b (mm)
125	125	250	79	210
90	90	250	56	125
70	75	250	63	210
100	110	250	75	210

Performance text

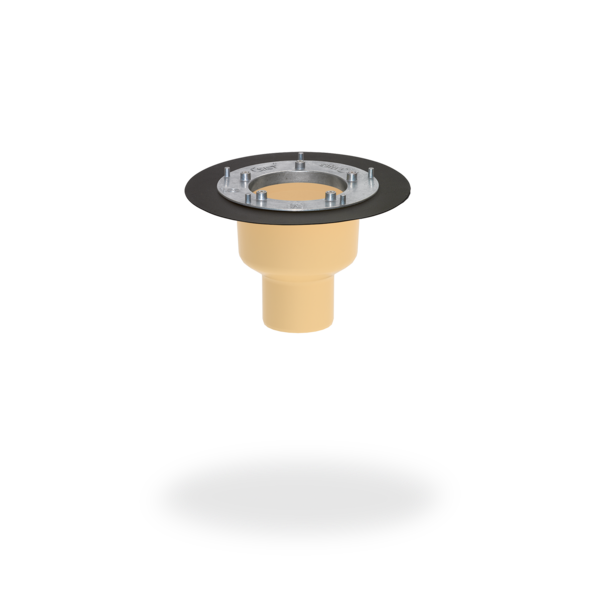

SitaTrendy screw-on flange vertical without dome grate, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 90, DN 100 and DN 125. For direct connection to pipes with a plug-in coupler, for conventional drainage, with pre-drilled holes for securing the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, supply and install to professional standards.

Streamflow

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	0.6	1.4	2.2	3.1	3.9	4.7	5.5	6.6	7.6	8.6	9.5	10.4	11.3	11.3	11.3	11.3	11.3	11.3	11.3	11.3
90	0.4	1.3	2.1	3.3	4.5	5.5	6.5	7.3	8	8.6	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2	9.2
100	0.6	1.5	2.3	3.3	4.3	5.2	6.1	7.3	8.5	9.4	10.3	11	11.7	11.7	11.7	11.7	11.7	11.7	11.7	11.7
125	0.7	1.6	2.4	3.3	4.2	5.1	5.9	7.3	8.7	10.1	11.4	12.7	14	14	14	14	14	14	14	14

Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s

	Back-up Heigh (mm)
Size DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	1.2	2.1	2.9	4.4	5.8	7.3	8.8	10.5	12.1	12.4	12.6	13.1	13.5	13.5	13.5	13.5	13.5	13.5	13.5	13.5
90	1.2	2.3	3.3	4.9	6.4	7.9	9.4	11.2	13	14.8	16.6	18.8	20.9	20.9	20.9	20.9	20.9	20.9	20.9	20.9
100	1.2	2.3	3.3	4.7	6.1	7.8	9.4	11.4	13.3	15.2	17	19.6	22.2	22.2	22.2	22.2	22.2	22.2	22.2	22.2
125	1.2	2.2	3.2	4.6	6	7.5	9	10.7	12.4	14.3	16.2	18.5	20.8	20.8	20.8	20.8	20.8	20.8	20.8	20.8

Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.

Installation Examples

SitaTrendy screw-on flange in a non-ventilated roof structure with terrace slabs in a gravel bed

1 SitaTrendy insulating body for extension unit

SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body

SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring

SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws

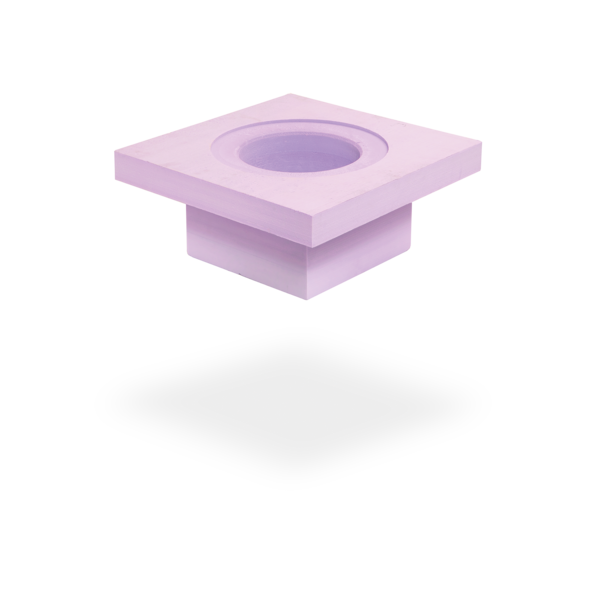

5 SitaTrendy insulating body for outlet

Non-ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:

Slab paving
Grit or gravel bed
Drainage mat
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

Downloads

SitaTrendy			Article no.
Screw-on flange vertical without dome grate
	DN 90	Screw-on flange	OK150199	Show product
	DN 70	Screw-on flange	OK150299	Show product
	DN 100	Screw-on flange	OK150499	Show product
	DN 125	Screw-on flange	OK150699	Show product
