SitaTrendy
Conventional outlet
- Products
SitaTrendy
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

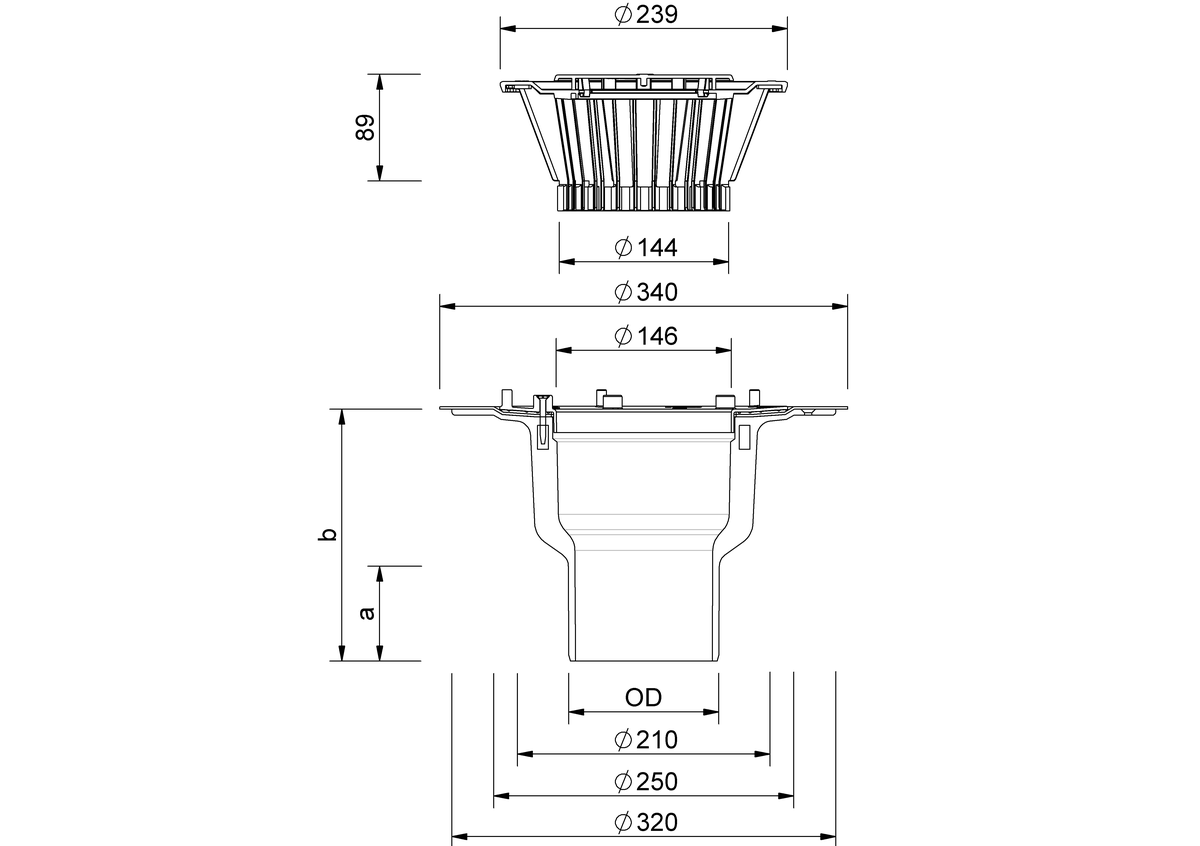

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 70 | 75 | 250 | 63 | 210 |
| 90 | 90 | 250 | 56 | 125 |
| 125 | 125 | 250 | 79 | 210 |
| 100 | 110 | 250 | 75 | 210 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_150299_en.pdf
PDF TechnischeZeichnung_150499_en.pdf
PDF TechnischeZeichnung_150699_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN100.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN125.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN70.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN90.dwg
Article selection

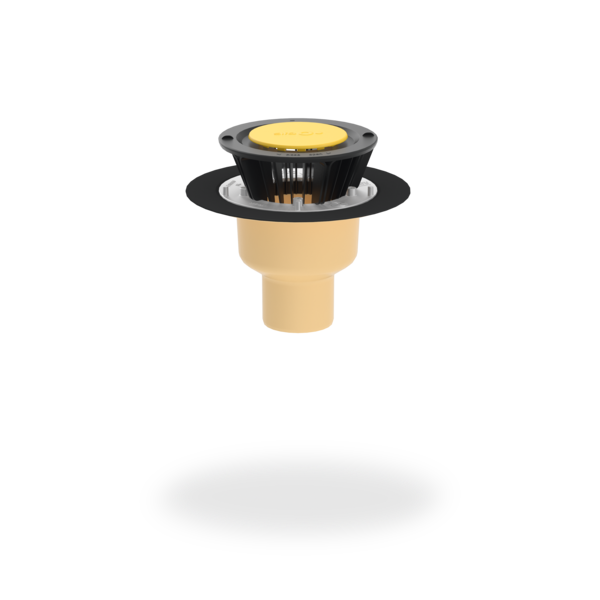

SitaTrendy screw-on flange vertical, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 90, DN 100 and DN 125. For direct connection to pipes with a plug-in coupler, for conventional drainage, with pre-drilled holes for securing the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, complete including dome grate, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.6 | 1.4 | 2.2 | 3.1 | 3.9 | 4.7 | 5.5 | 6.6 | 7.6 | 8.6 | 9.5 | 10.4 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| 90 | 0.4 | 1.3 | 2.1 | 3.3 | 4.5 | 5.5 | 6.5 | 7.3 | 8 | 8.6 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 |
| 100 | 0.6 | 1.5 | 2.3 | 3.3 | 4.3 | 5.2 | 6.1 | 7.3 | 8.5 | 9.4 | 10.3 | 11 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 |
| 125 | 0.7 | 1.6 | 2.4 | 3.3 | 4.2 | 5.1 | 5.9 | 7.3 | 8.7 | 10.1 | 11.4 | 12.7 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 1.2 | 2.1 | 2.9 | 4.4 | 5.8 | 7.3 | 8.8 | 10.5 | 12.1 | 12.4 | 12.6 | 13.1 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| 90 | 1.2 | 2.3 | 3.3 | 4.9 | 6.4 | 7.9 | 9.4 | 11.2 | 13 | 14.8 | 16.6 | 18.8 | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 |
| 100 | 1.2 | 2.3 | 3.3 | 4.7 | 6.1 | 7.8 | 9.4 | 11.4 | 13.3 | 15.2 | 17 | 19.6 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 |
| 125 | 1.2 | 2.2 | 3.2 | 4.6 | 6 | 7.5 | 9 | 10.7 | 12.4 | 14.3 | 16.2 | 18.5 | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 |
SitaTrendy in a non-ventilated roof structure
1 SitaMore reinforcement plate
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaTrendy screw-on flange in a non-ventilated roof structure with terrace slabs in a gravel bed
1 SitaTrendy insulating body for extension unit
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_150199_en.pdfPDF TechnischeZeichnung_150299_en.pdf
PDF TechnischeZeichnung_150499_en.pdf
PDF TechnischeZeichnung_150699_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN100.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN125.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN70.dwg
DWG TZ_DB_SitaTrendy_Schraubflansch_senkrecht_DN90.dwg
| SitaTrendy | Article no. | |||
|---|---|---|---|---|
Screw-on flange vertical | ||||
| DN 90 | Screw-on flange | 150199 | Show product | |
| DN 70 | Screw-on flange | 150299 | Show product | |
| DN 100 | Screw-on flange | 150499 | Show product | |
| DN 125 | Screw-on flange | 150699 | Show product |
+
